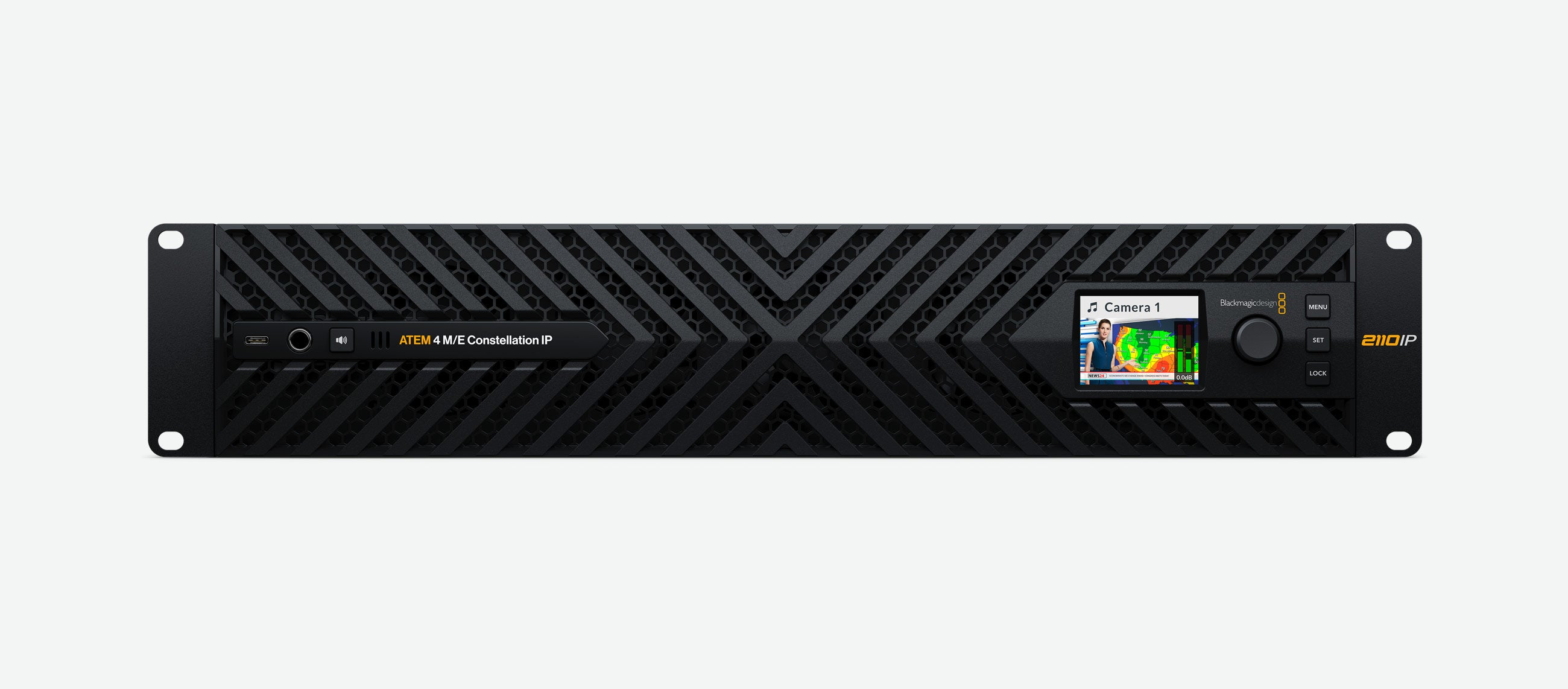

Blackmagic Design ATEM 4 M/E Constellation IP Switcher
SKU: SWATEMSCN2/3ME4/IP
Key Features
- 32 IP Inputs, 32 Outputs with Multiview
- Frame Rate/Format Converter per Input

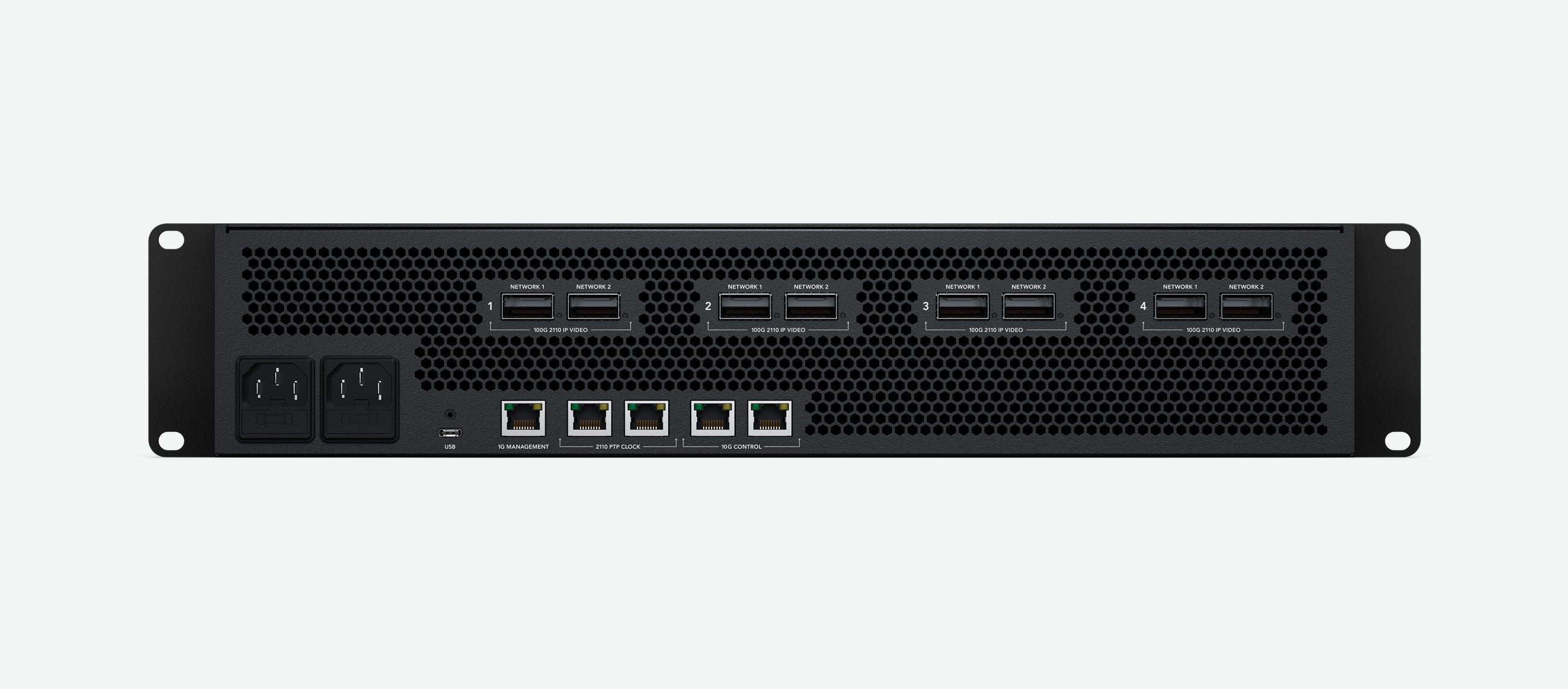

- Redundant 100G Fiber Ethernet Ports
- SMPTE 2110 Reference Ports
- Redundant Power, 4 Cooling Fans
- 2 SuperSource Processors, 12 Total DVEs
- 32,954.00 AED
- 32,954.00 AED
- Unit price
- per
Dimensions: 48.3 x 22 x 8.84 cm
Description
xThe Blackmagic Design ATEM 4 M/E Constellation IP Switcher is a professional live production switcher built for broadcasters, production studios, live events, sports venues, and enterprise AV installations. Featuring 32 SMPTE ST 2110 IP video inputs and 32 outputs, it delivers reliable, high-performance switching for modern IP-based broadcast workflows.
Supporting UHD 4K up to 60 fps, the switcher includes automatic frame synchronization and standards conversion on every input, allowing cameras and video sources with different formats to work together seamlessly. Redundant 100G fiber Ethernet ports, dual power supplies, and efficient front-to-back cooling ensure dependable operation during mission-critical productions.
With four Mix Effect (M/E) rows, advanced keying, multiple transition engines, four downstream keyers, and two SuperSource processors providing up to 12 DVEs, the ATEM 4 M/E Constellation IP gives production teams the flexibility to create professional multi-camera broadcasts, picture-in-picture layouts, graphics overlays, and virtual sets.
The integrated 64-view multiview output simplifies source monitoring, while the included ATEM Software Control application for Windows and macOS enables easy management. For larger productions, the switcher can also be paired with compatible Blackmagic Design hardware control panels.
Browse our complete range of Blackmagic Design products for compatible broadcast equipment, or explore our collection of Camera Support to find the right solution for your live production workflow.
Frequently Asked Questions
Does the ATEM 4 M/E Constellation IP support SMPTE ST 2110?
Yes. It is designed for SMPTE ST 2110 IP production workflows and includes redundant 100G fiber Ethernet connections for reliable broadcast networking.
How many video inputs and outputs does this switcher have?
The switcher features 32 IP video inputs and 32 outputs, making it suitable for large-scale live productions.
Does it support UHD 4K?
Yes. It supports UHD 4K video at up to 60 fps, along with multiple HD video formats.
Can it work with different video formats simultaneously?
Yes. Every input includes automatic frame synchronization and standards conversion, allowing different video formats and frame rates to be used together without external converters.
Who is this switcher designed for?
It is ideal for broadcasters, production companies, sports venues, live event professionals, houses of worship, streaming studios, and enterprise AV environments requiring professional IP-based live production.
In the Box
x- Blackmagic Design ATEM 4 M/E Constellation IP Switcher
- Limited 1-Year Manufacturer Warranty
Specs
x| Brand | Blackmagic Design |
|---|---|
| Model | ATEM 4 M/E Constellation IP |
| Mix Effects | |
| Available M/E Layers | 4 M/E |
| Effect Types | 20x Luma Key, 4x DVE, 4x Transition, 4x Stinger |
| Graphics Memory | 64 Images |
| Downstream Keys | 4x DVE |
| Generators | 21x Pattern |
| Audio Mixing | 68-Channel Mixing |
| Processing | |
| Switching Type | Software |
| Processing Resolution | UHD 4K at 60 fps |
| Color Processing | 10-Bit 4:2:2 |
| Input | |
| Number of Video Input Sources | 32 |
| Video Inputs | 8x QSFP28 Female |
| Input Video Format |
Fiber (10-Bit 4:2:2) UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
| Output | |
| Video Output Channels | 32 |
| Video Outputs | 8x QSFP28 Female |
| Output Video Format |
Fiber (10-Bit 4:2:2) UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
| Multiview Output | 64-Way Multiview |
| Connectivity | |
| Other I/O | 2x RJ45 Control Input/Output, 2x RJ45 Reference Input/Output, 1x RJ45 LAN Input/Output |
| Video Standard Compliance | SMPTE ST-2110 |
| Hardware | |
| OS Compatibility | macOS 15 or Later / Windows 11 or Later |
| Processor | Not Specified by Manufacturer |
| Wireless | No |
| Power | |
| Power I/O | 2x IEC C14 Input |
| General | |
| Operating Conditions | 32 to 104°F (0 to 40°C), up to 90% Humidity |
| Storage Conditions | -4 to 140°F (-20 to 60°C), up to 90% Humidity |
| Rack Form Factor | 2 RU |
| Dimensions | 19 × 8.66 × 3.48 in (48.3 × 22 × 8.84 cm) |
