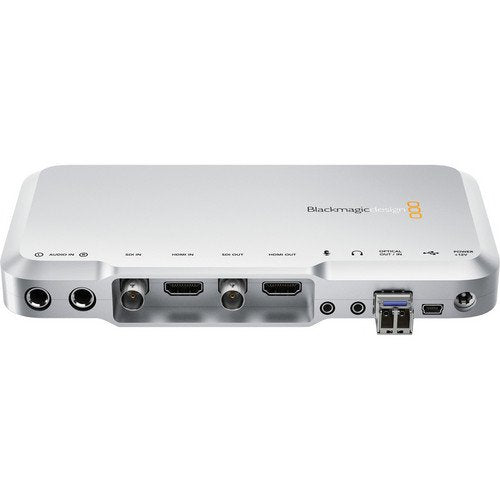

Blackmagic Design ATEM Camera Converter
SKU: SWRCONV
Key Features
- Enables Extension of SDI/HDMI Cameras
- Transmission Distance - 28 miles (45km)
- Internal Battery
- Talkback Function
- 12V Power Connection
- 2 Tally LEDs
- Integrated Belt Clip / Camera Mount
- Microphone Inputs
- Aircraft-grade Aluminum Construction
- Built-in Button Pad
- 2,558.00 AED
- 2,558.00 AED
- Unit price
- per
Dimensions: 21.2 x 16.76 x 7.74 cm
Weight: 1.11 kg
Description
xThe Blackmagic Design ATEM Camera Converter is a professional camera converter designed for live production workflows. It converts SDI or HDMI camera signals to optical fiber, allowing cameras to connect to a switcher over long-distance fiber links while receiving a program return feed for monitoring.
It supports switchable SD and HD video through SDI and HDMI, with 10-bit processing and 4:2:2 video sampling. The converter also carries camera audio and intercom audio over the optical fiber connection, making it suitable for live events, broadcast studios, and remote camera positions.
Built-in talkback, tally support, microphone inputs, headphone connectivity, and an internal battery provide practical features for camera operators working in live production environments. USB 2.0 is included for setup, firmware updates, and Converter Utility software control. Explore more professional Signal Processing, Converters & Distribution equipment from Systec International.
FAQs
What is the ATEM Camera Converter used for?
It converts SDI or HDMI camera signals to optical fiber for long-distance live production connections and provides a return program feed to the camera.
Does it support both SDI and HDMI?
Yes. It includes one switchable 10-bit SD/HD SDI input and output, plus HDMI Type A input and output.
Does it support talkback and intercom?
Yes. It includes dedicated talkback microphone and headphone connections and carries intercom audio through the optical fiber connection.
Does it have a built-in battery?
Yes. The ATEM Camera Converter includes an internal battery for portable camera operation.
What video formats does it support?
It supports SD and HD formats, including 720p and 1080p standards, as well as 2K DCI 24p and 25p through SDI.
Specs
xSpecifications
| Product Type | Professional camera-to-fiber converter |
|---|---|
| SDI Video Input | 1 x 10-bit SD/HD switchable |
| SDI Video Output | 1 x 10-bit SD/HD switchable |
| HDMI Video Input | 1 x HDMI Type A |
| HDMI Video Output | 1 x HDMI Type A |
| Optical Fiber Video Input | 1 x single-mode SD/HD switchable with LC connector |
| Optical Fiber Video Output | 1 x single-mode SD/HD switchable with LC connector |
| Optical Fiber Audio | Camera audio on channels 1–2 and intercom audio on channels 15–16 |
| Talkback Audio | 3.5mm stereo microphone and 3.5mm stereo headphone connections |
| Analog Audio | 2 x balanced 1/4-inch TRS stereo microphone-level inputs |
| SDI Format Support | SD, HD and 2K DCI formats up to 1080p60 |
| HDMI Format Support | 720p, 1080p and 1080i formats |
| SDI Compliance | SMPTE 259M and SMPTE 292M |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | Rec. 601 and Rec. 709 |
| Audio Sampling | 48 kHz, 24-bit A/D conversion |
| Computer Interface | 1 x Mini-B USB 2.0 |
| Software | Converter Utility |
| Power Supply | 12V power supply with international socket adapters |
| Operating Systems | Mac OS X 10.11 or later and Windows 8.1/10 |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
