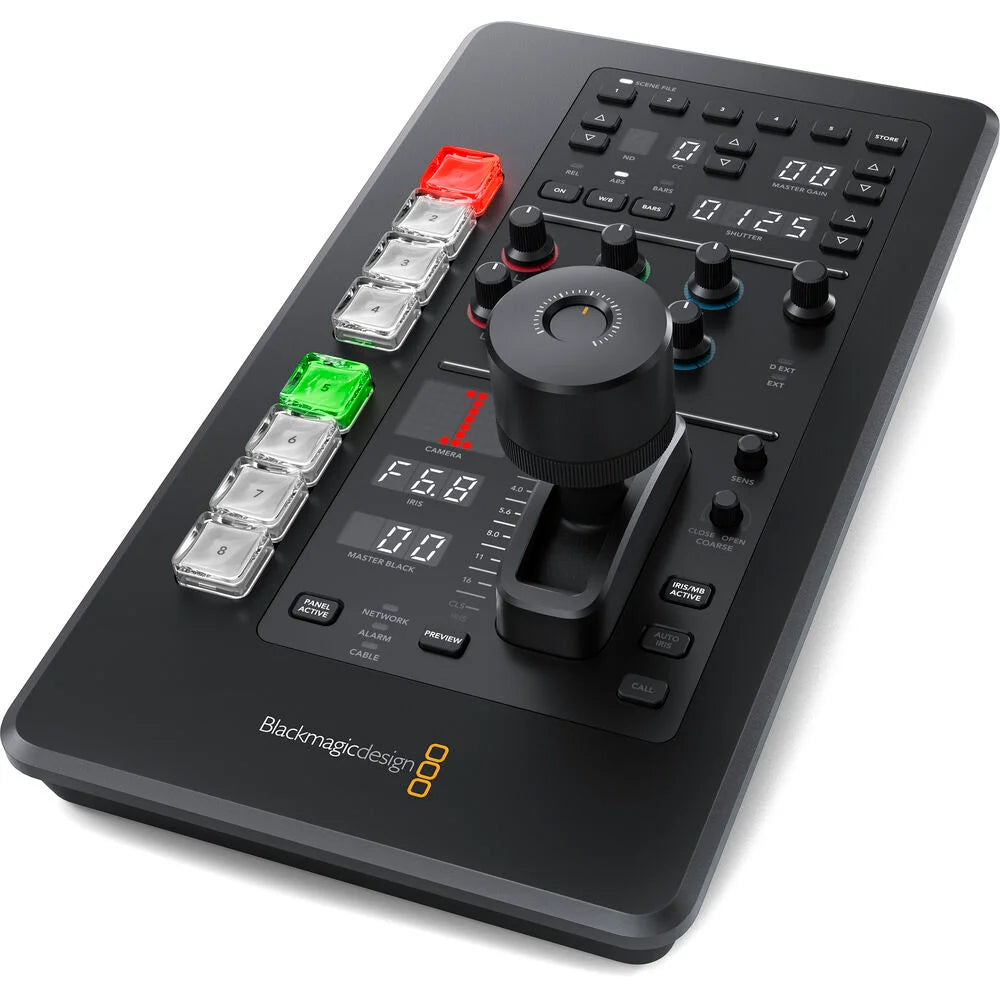

Blackmagic Design ATEM Micro Camera Panel
SKU: SWPANELCCU1
Key Features
- Compact Camera Control Panel
- Control up to 8 Cameras
- Joystick Control, Red/Green Tally LEDs
- USB-C or Bluetooth Computer Connections
- Battery Powered with Power Switch
- CCU Channels to Control More Cameras
- Aux Output, RGB Balance Knob Controls
- 2,484.00 AED
- 2,484.00 AED
- Unit price
- per
Dimensions: 32.5 x 22 x 14 cm
Weight: 1.6 kg
Description
xThe Blackmagic Design ATEM Micro Camera Panel is a compact professional camera control panel designed for live production and multi-camera broadcast workflows. It provides high-end broadcast-style CCU controls for up to eight cameras, allowing operators to adjust and match cameras from a single portable panel.

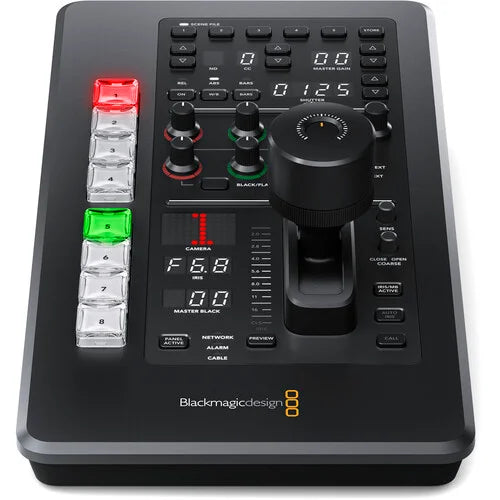

The panel features eight assignable NKK camera selection buttons, red and green camera status indicators, a 3-axis joystick, preview control, iris adjustment, gain, ND filters, shutter speed, white balance and RGB balance controls. Five scenes can also be recalled for each camera, making it easier to maintain consistent camera settings during live productions.

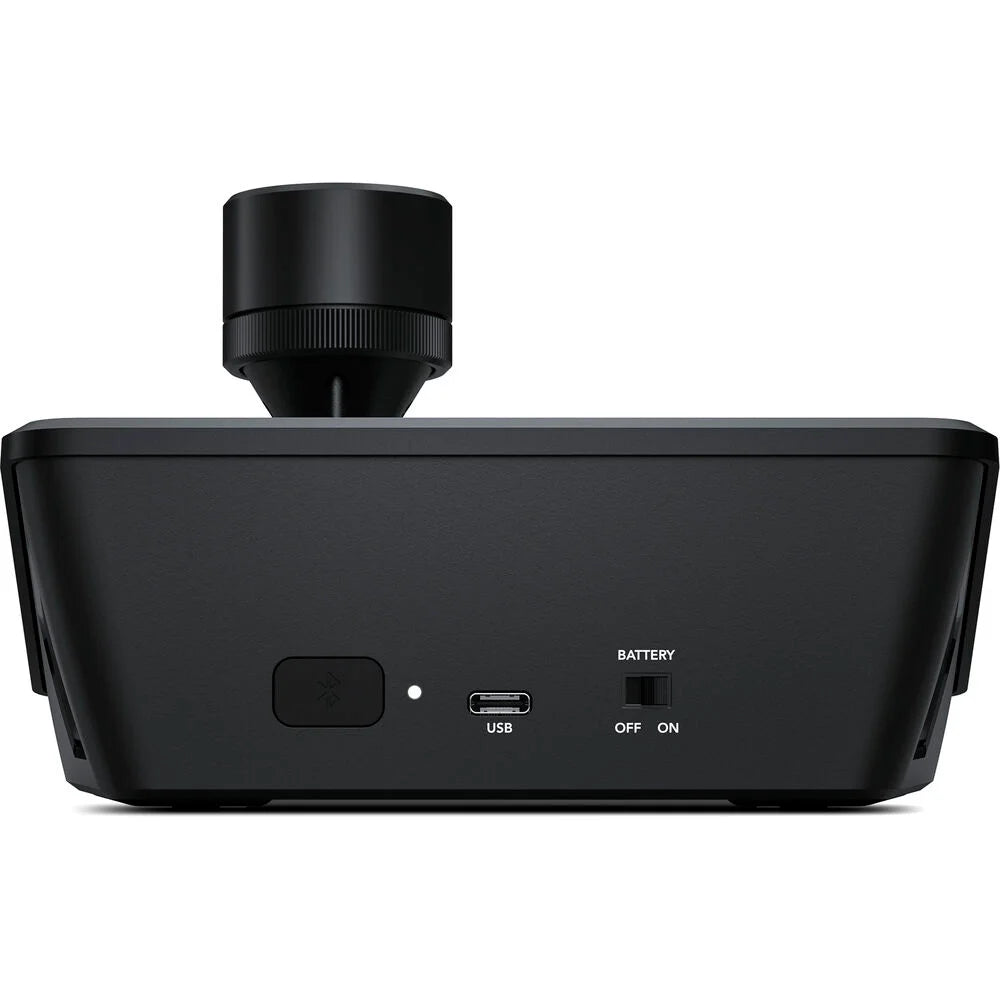

Connectivity is handled through USB-C or Bluetooth 5.1 LE, allowing the panel to connect to a computer running ATEM Software Control. Its built-in battery and USB-C charging make it suitable for mobile production environments where a compact and wireless control solution is useful.
The ATEM Micro Camera Panel is particularly useful for broadcast studios, live events, houses of worship, corporate productions and other multi-camera environments where fast and precise camera matching is important. For additional professional production equipment, explore Systec's Switchers & Controllers, Studio Chain Cameras, and Camera Support categories.
Frequently Asked Questions
How many cameras can the ATEM Micro Camera Panel control?
The ATEM Micro Camera Panel can control up to eight cameras from a single panel.
How does the ATEM Micro Camera Panel connect to a computer?
It connects using USB-C or Bluetooth 5.1 LE and controls the ATEM Software Control panel running on the host computer.
What camera controls are available?
It provides controls for iris, gain, ND filters, shutter, white balance, pedestal and RGB balance, along with scene recall and other CCU functions.
Does the ATEM Micro Camera Panel have a built-in battery?
Yes. It has an internal battery with a power switch and can be charged through USB-C. Blackmagic Design specifies a minimum battery life of approximately 3 hours under normal use.
What operating systems are supported?
The panel supports macOS 14 Sonoma and later, Windows 10 and 11, and Windows 11 for ARM.
Specs
xKey Specs
| Product Type | Professional Camera Control Panel |
|---|---|
| Camera Control | Up to 8 Cameras |
| Computer Interface | USB Type-C |
| Wireless Connectivity | Bluetooth 5.1 LE |
| Camera Selection Buttons | 8 x NKK Buttons |
| Camera Number Display | Green Off Air, Red On Air |
| 3-Axis Joystick | 1 |
| Preview Button | 1 |
Camera Controls
| Iris Control | Auto Iris On, Coarse Control |
|---|---|
| Iris Range | CLS f32 to f1.2 |
| Gain Range | -12 dB to +32 dB |
| ND Filters | 0, 2, 4, 6 |
| Shutter Range | 1/24 to 1/2000 |
| White Balance Range | 2500K to 10,000K |
| Setup Controls | White Balance, Black Balance and Flare |
| Recallable Scenes | 5 per Camera |
| Panel Active | Protects Settings |
Software
| Software Application | ATEM Software Control |
|---|---|
| Software Updates | USB Type-C |
Operating Systems
| macOS | macOS 14.0 Sonoma, macOS 15.0 Sequoia or Later |
|---|---|
| Windows | Windows 10 and 11, Windows 11 for ARM |
Power
| Power Supply | Internal Battery with Power Switch |
|---|---|
| Charging | USB Type-C |
| Battery Life | Minimum 3 Hours Under Normal Use |
| Power Usage | 4 W Maximum |
Environmental
| Operating Temperature | 5° to 40°C / 41° to 104°F |
|---|---|
| Storage Temperature | -20° to 45°C / -4° to 113°F |
