Blackmagic Design ATEM Micro Panel
SKU: SWPANELAA1ME10
Key Features
- For ATEM Constellation Switchers
- Works with ATEM Software Control
- Connects via Bluetooth, USB
- 2 x 10 Input Buttons for Program/Preview
- Transition Control, Fader
- Macro Key
- 2,816.00 AED
- 2,816.00 AED
- Unit price
- per
Description

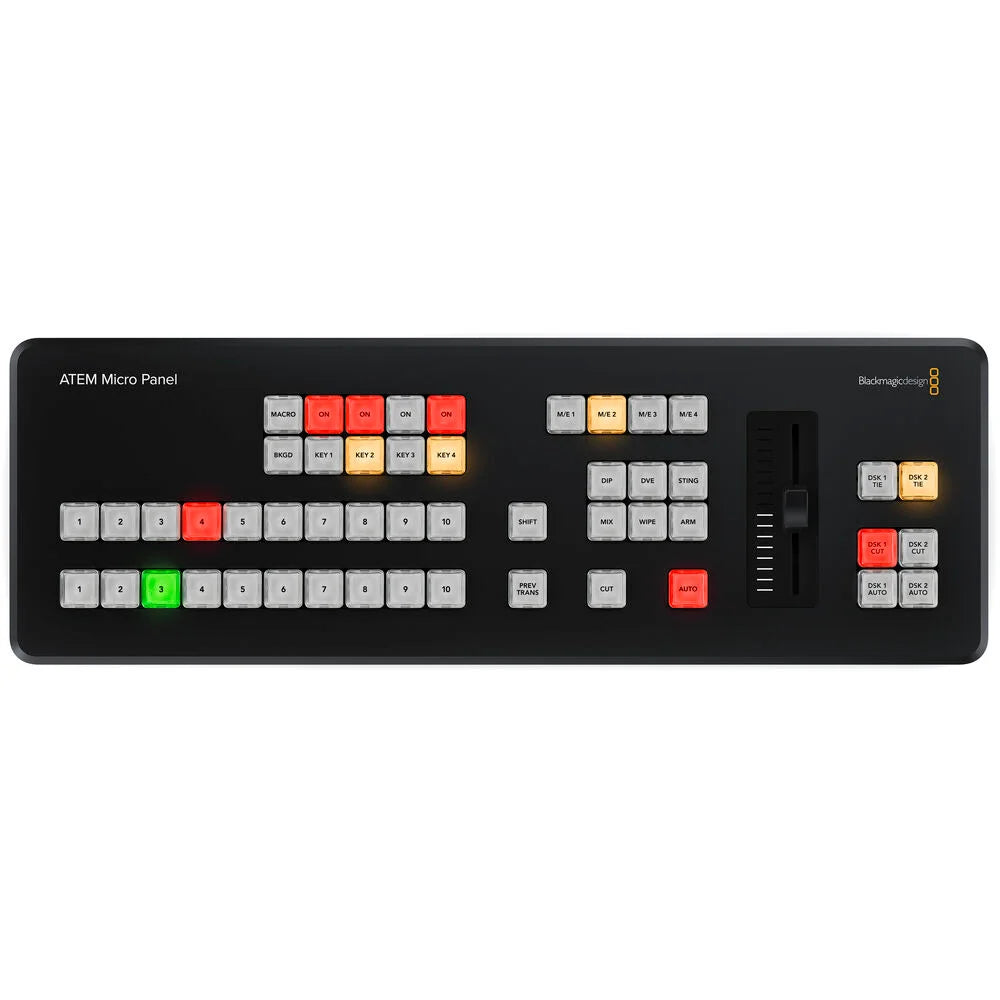

xThe Blackmagic Design ATEM Micro Live Stream Switcher Panel is a compact hardware control panel designed to bring physical switching control to ATEM Software Control. Its portable design features professional backlit buttons and a low-profile manual transition fader, making it a practical choice for live production and streaming workflows.
The panel provides two rows of 10 buttons for program and preview, with a shift function giving access to up to 20 sources. Dedicated controls are available for upstream and downstream keyers, CUT and AUTO switching, multiple transition types, preview transition, macros, and four M/E selections.

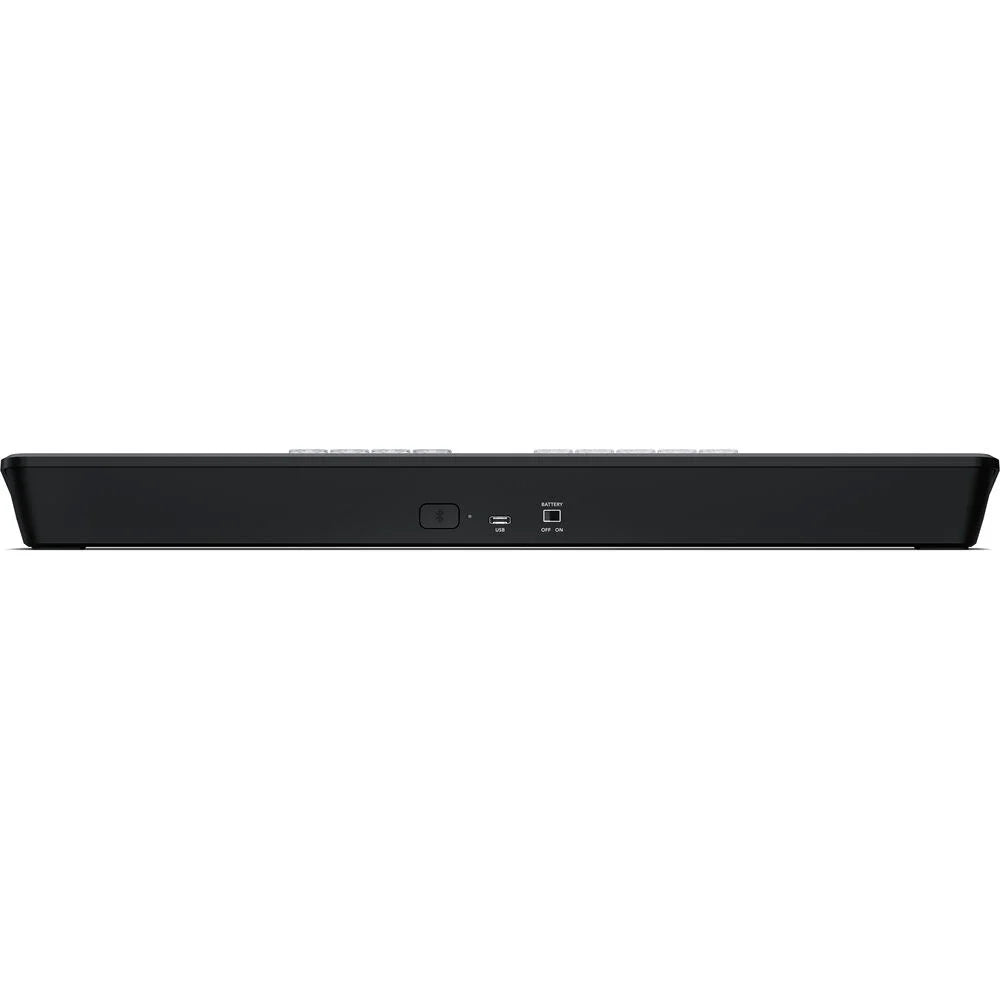

For flexible operation, the ATEM Micro Panel connects to a computer through USB-C or wirelessly through Bluetooth 5.1 LE. Its built-in battery provides a minimum of 6 hours of operation, while USB-C can also be used for external power and charging. It works with ATEM Software Control on supported Mac and Windows systems.
The compact control surface is well suited for broadcasters, live streamers, event producers, studios, houses of worship, and other users who want tactile control without carrying a larger broadcast panel. You can also explore Systec International's Switchers & Controllers collection for related live production equipment.
FAQs
What is the Blackmagic ATEM Micro Panel used for?
It provides physical switching and control for ATEM Software Control, making live production easier to operate with tactile buttons and a transition fader.
How many sources can the ATEM Micro Panel control?
It has 10 direct crosspoints and 20 shifted crosspoints, allowing access to up to 20 sources.
Can the ATEM Micro Panel connect wirelessly?
Yes. It supports Bluetooth 5.1 LE for wireless connection to a computer running ATEM Software Control.
How long does the internal battery last?
The built-in battery provides a minimum of 6 hours of operation under normal use.
What transition controls are included?
The panel includes CUT and AUTO buttons, a manual transition slider, and DIP, DVE, STINGER, MIX, and WIPE transition controls.
Specs
xSpecifications
| Product Type | Hardware Control Panel for ATEM Software Control |
|---|---|
| Mix Effects Rows | 1 |
| Direct Cross Points | 10 |
| Shifted Cross Points | 20 |
| Crosspoint Button Type | Tri-Color LED |
| Preview Transition | 1 |
| Switching Type Buttons | CUT and AUTO |
| Transition Type Buttons | DIP, DVE, STINGER, MIX, WIPE |
| M/E Select Buttons | 4 |
| Upstream Key Buttons | 4 with ON/OFF |
| Downstream Key Buttons | 2 with ON/OFF |
| Transition Slider | 1 |
| Computer Interface | USB Type-C |
| Bluetooth | Bluetooth 5.1 LE |
| Software | ATEM Software Control Panel |
| Operating Systems | Mac 14.0 Sonoma, Mac 15.0 Sequoia or later, Windows 10 and 11 |
| Power Supply | Internal battery; USB-C for external power and battery charging |
| Power Usage | 3W maximum |
| Battery Life | Minimum 6 hours under normal use |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
