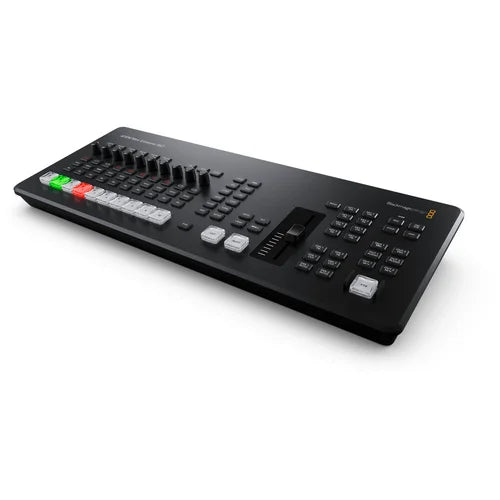

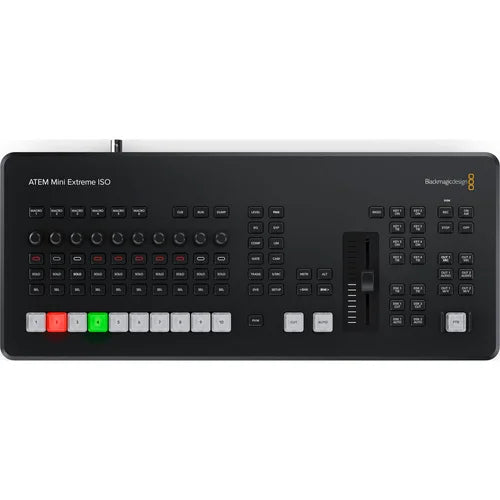

Blackmagic Design ATEM Mini Extreme ISO G2
SKU: SWATEMMINICEXTISOG2
Key Features
- 8-Channel HDMI Live Streaming Switcher
- All New Design, Supports up to 1080p60
- 1G & 10G Ethernet Ports, CFexpress Slot
- 3 Independently Assignable HDMI Outputs
- 26-Input, 2-Channel Audio Mixer
- Input Frame Rate and Format Converter
- MADI Input, Analog Line/Mic XLR Inputs
- HD Multiview Output with up to 16 Views
- Dual USB-C and Thunderbolt Ports
- 4 x Upstream, 2 x Downstream Keyers
- 7,930.00 AED
- 7,930.00 AED
- Unit price
- per
Dimensions: 45 x 20 x 8 cm
Weight: 2 kg
Description
xThe Blackmagic Design ATEM Mini Extreme ISO G2 is a professional 8-input live production switcher designed for live streaming, broadcast, studio production and multi-camera workflows. It combines an integrated hardware control panel with advanced switching, streaming, recording and audio capabilities.
The switcher features 8 HDMI inputs with frame rate and format conversion, supporting HD video up to 1080p60. It also provides three HDMI program outputs, multi-view monitoring with up to 16 views, DVE, chroma keying, multiple keyers, media playback and professional camera control.
For recording, the ATEM Mini Extreme ISO G2 can independently record all eight HDMI inputs along with the program output. It can save a DaVinci Resolve project file, allowing the live production to be reopened and edited with the recorded source files. The built-in CFexpress support and Thunderbolt connectivity provide additional options for professional recording and playback workflows.
The built-in streaming engine allows direct streaming through Ethernet without requiring a computer, while the 1G and 10G Ethernet connections provide network connectivity for streaming, control and high-speed recording workflows. USB-C connections can also provide webcam output for applications such as video conferencing and streaming software.
Audio production is handled through a 58-channel mixer, two XLR combo inputs with phantom power and a 32-channel MADI digital audio input. The ATEM Mini Extreme ISO G2 also supports Blackmagic camera control, allowing compatible cameras to be adjusted directly from the switcher.
For more professional live production equipment, explore Systec's Switchers & Controllers, Video Recorders & Players, and Signal Processing, Converters, Distribution categories.
Frequently Asked Questions
How many HDMI inputs does the ATEM Mini Extreme ISO G2 have?
The ATEM Mini Extreme ISO G2 has 8 HDMI video inputs, with frame rate and format conversion available on all eight inputs.
Can the ATEM Mini Extreme ISO G2 record each camera separately?
Yes. Its ISO recording feature can independently record all eight HDMI inputs along with the program output, while also generating a DaVinci Resolve project file for post-production.
Can it stream without a computer?
Yes. The built-in streaming engine allows the ATEM Mini Extreme ISO G2 to stream directly through its Ethernet connection without requiring a computer.
Does the ATEM Mini Extreme ISO G2 support CFexpress?
Yes. It includes a CFexpress card slot for recording and playback workflows.
What audio inputs does it have?
The switcher includes two XLR combo inputs with phantom power and a 32-channel BNC MADI digital audio input.
Specs
xVideo Inputs
| Total Video Inputs | 9 |
|---|---|
| HDMI Video Inputs | 8 x HDMI Type A, 10-Bit HD Switchable |
| Embedded Audio | 2-Channel Embedded Audio per HDMI Input |
| Video Input Standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| Input Re-Sync | All 8 HDMI Inputs and Remote Sources |
| Frame Rate and Format Conversion | All 8 HDMI Inputs and Remote Sources |
Video Outputs
| Total Outputs | 4 |
|---|---|
| HDMI Outputs | 3 |
| HDMI Program Outputs | 3 |
| Multi-View | 1, Routable to HDMI, USB-C Webcam Outputs or Thunderbolt |
| HD Video Output Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
Switching & Processing
| Mix Effects Rows | 1 |
|---|---|
| Direct Cross Points | 10 |
| Keyers | 4 x Upstream, 2 x Downstream |
| Chroma Keyers | Up to 4 |
| Linear Keyers | Up to 4 |
| DVE | 2 with Borders and Drop Shadow |
| Pattern Generators | 5 |
| Color Generators | 2 |
| Video Sampling | 4:2:2 YUV |
| Color Precision | 10-Bit |
| Color Space | Rec. 709 |
Audio
| Audio Mixer | 58-Channel Mixer |
|---|---|
| Analog Audio Inputs | 2 x XLR Combo with Phantom Power |
| Digital Audio Input | 1 x BNC 32-Channel MADI |
| Audio Output | 1 x 6.35 mm Headphone Jack |
| Audio Processing | 6-Band Parametric EQ, Expander, Gate, Compressor and Limiter |
Recording
| ISO Recording | All 8 HDMI Inputs and Program Output |
|---|---|
| Recording Media | CFexpress and USB-C External Drives |
| Recording Format | H.264 Video with AAC Audio |
| DaVinci Resolve Integration | DaVinci Resolve Project File Automatically Generated |
Streaming
| Built-In Streaming Engine | Yes |
|---|---|
| Streaming Connection | Ethernet |
| Streaming Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
Connectivity
| Ethernet | 1 x 1G Ethernet, 1 x 10G Ethernet |
|---|---|
| USB-C | 2 x USB Type-C 3.1 Gen 1 |
| Thunderbolt | 1 x Thunderbolt |
| Webcam Output | 2 x USB-C, 720p or 1080p at Program Frame Rate |
Camera Control
| Supported Controls | Focus, Iris, Zoom, Gain, White Balance, Tint, Shutter, ND Filter, Color Corrector, Tally and Record Start/Stop |
|---|
Software
| Control Software | ATEM Software Control |
|---|---|
| Supported Operating Systems | macOS 14.0 Sonoma or Later; Windows 10 and 11; Windows 11 for ARM |
| Software Updates | USB or Ethernet Connection |
Power
| Power Supply | 1 x External 12V Power Supply |
|---|---|
| Power Consumption | 120 W Maximum |
Environmental
| Operating Temperature | 5°C to 40°C / 41°F to 104°F |
|---|---|
| Storage Temperature | -10°C to 60°C / 14°F to 140°F |
| Relative Humidity | 0% to 90% Non-Condensing |
