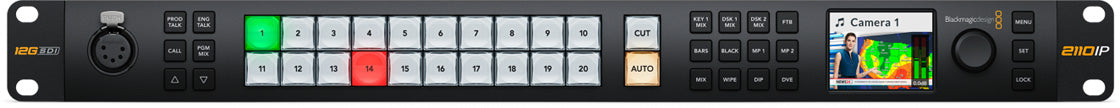

Blackmagic Design ATEM Monitoring Rack Panel 20
SKU: SWPANELABRMP20
Key Features
- Video converter designed for monitoring applications
- Redundant 10G SMPTE 2110 Ethernet input
- Converts SMPTE 2110 signals to 12G-SDI and HDMI monitor outputs
- 1 RU rackmount design with 20 backlit control buttons
- 1G Ethernet control connector with redundant power supply
- Supports talkback audio channel for communication
- 3,923.00 AED
- 3,923.00 AED
- Unit price
- per
Description
xThe Blackmagic Design ATEM Monitoring Rack Panel 20 is a professional IP video monitoring solution built for modern broadcast, live production, and studio environments. Designed for SMPTE 2110 workflows, it converts IP video streams into 12G-SDI and HDMI monitor outputs, allowing operators to monitor program, preview, and multiview feeds with exceptional clarity and reliability.
Housed in a compact 1 RU rackmount chassis, the panel features redundant 10G Ethernet connections for uninterrupted SMPTE 2110 network monitoring, dual redundant power inputs for maximum uptime, and an integrated LCD display with backlit control buttons for quick operation. It also includes a dedicated talkback interface, making communication between production teams simple during live events and broadcasts.
Supporting UHD 4K and Full HD video formats, along with Rec. 709 and Rec. 2020 color spaces, the ATEM Monitoring Rack Panel 20 integrates seamlessly into professional IP-based production systems. Whether you're upgrading an existing ATEM setup or building a new broadcast workflow, this monitoring panel delivers dependable performance and flexible connectivity for demanding production environments.
Browse our complete range of Blackmagic Design products, Video Switchers, and Broadcast Monitors to build a complete professional video production solution.
FAQs
What is the Blackmagic Design ATEM Monitoring Rack Panel 20 used for?
The ATEM Monitoring Rack Panel 20 is designed to monitor SMPTE 2110 IP video by converting IP video streams into 12G-SDI and HDMI outputs. It is ideal for broadcast studios, live events, and professional production environments.
Does the ATEM Monitoring Rack Panel 20 support SMPTE 2110?
Yes. It supports SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, and SMPTE 2022-7 for redundant IP network delivery, making it suitable for modern IP-based broadcast workflows.
Can the ATEM Monitoring Rack Panel 20 output 4K video?
Yes. It supports UHD 4K (3840 × 2160) at up to 60 fps, as well as Full HD 1080p, 1080i, and 720p video formats.
Does the ATEM Monitoring Rack Panel 20 have redundant power and network connections?
Yes. The panel includes dual IEC C14 power inputs for redundant power and dual 10G Ethernet ports to support redundant SMPTE 2110 networks, helping maintain continuous operation during live productions.
Can I connect HDMI and SDI monitors at the same time?
Yes. The ATEM Monitoring Rack Panel 20 provides dual 12G-SDI monitor outputs and an HDMI 2.0 output, allowing you to monitor video on both SDI and HDMI displays simultaneously.
Is the ATEM Monitoring Rack Panel 20 compatible with ATEM switchers?
Yes. It is designed to integrate seamlessly with Blackmagic Design ATEM switchers and other SMPTE 2110 IP production systems, making it an excellent addition to professional broadcast and live production workflows.
In the Box
x- Blackmagic Design ATEM Monitoring Rack Panel 20
- Limited 1-Year Manufacturer Warranty
Specs
x| Brand | Blackmagic Design |
|---|---|
| Model | ATEM Monitoring Rack Panel 20 |
| Compatibility | Not Specified by Manufacturer |
| Buttons | 22 LED Backlit Buttons (8 Source, 4 Transition, 6 Talkback & Mix) |
| Rack Size | 1 RU |
| Supported Video Formats |
UHD 4K (3840 × 2160p): 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 HD 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 HD 1080i: 60, 59.94, 50 HD 720p: 60, 59.94, 50 |
| Color Processing | 10-Bit, 4:2:2 |
| Color Spaces | Rec. 709, Rec. 2020 |
| Video Standards | SMPTE 2110-20, 2110-21, 2110-30, 2110-40, SMPTE 2022-7 |
| Supported Codecs | SMPTE 2110 IP, Blackmagic IP10 (Optional for 2160p59.94 & 2160p60) |
| Supported Protocols | IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2, NMOS |
| Supported Operating Systems | macOS 14 Sonoma, macOS 15 Sequoia, macOS 26 Tahoe or later, Windows 10, Windows 11, Windows 11 for ARM |
| Software | ATEM Setup Utility, ATEM Software Control Panel |
| Display Type | LCD |
| Touchscreen | No |
| USB Interface | 1 × USB-C (Firmware Only) |
| Video Inputs | 2 × RJ45 (Redundant 10G LAN) |
| Video Outputs | 2 × 12G-SDI (Program, Preview, Multiview), 1 × HDMI 2.0 (Multiview) |
| Audio I/O | 1 × 5-Pin XLR Headphone/Microphone Input/Output (Talkback) |
| Control Interface | 1 × RJ45 Gigabit Ethernet |
| Power Source | AC Plug-In Power |
| AC Input | 100–240 VAC, 50/60 Hz |
| Power Inputs | 2 × IEC C14 (Redundant) |
| Mounting | 2 × Rack Ears |
| Color | Black |
| Operating Temperature | 32 to 104°F (0 to 40°C), up to 90% Humidity |
| Storage Temperature | -4 to 140°F (-20 to 60°C), up to 90% Humidity |
| Dimensions (W × D × H) | 19 × 8.94 × 1.74 in (48.3 × 22.71 × 4.42 cm) |
