Blackmagic Design ATEM Monitoring Rack Panel 40
SKU: SWPANELABRMP40
Key Features
- Video converter designed for professional monitoring workflows.
- Redundant 10G SMPTE 2110 Ethernet input for reliable signal transmission.
- Converts SMPTE 2110 signals to 12G-SDI and HDMI monitor outputs.
- Compact 2RU rackmount design with 40 backlit control buttons.
- Dedicated 1G Ethernet control connector with redundant power supply support.
- Supports integrated talkback audio channel for live production communication.
- 6,583.00 AED
- 6,583.00 AED
- Unit price
- per
Description
xThe Blackmagic Design ATEM Monitoring Rack Panel 40 is a professional SMPTE 2110 IP monitoring solution designed for broadcast studios, live production, and post-production environments. It converts SMPTE 2110 IP video streams into 12G-SDI and HDMI outputs, allowing operators to monitor program, preview, and multiview feeds using standard broadcast displays.
Built in a 2RU rackmount chassis, the ATEM Monitoring Rack Panel 40 features 40 backlit control buttons, a 5-inch LCD display, redundant 10G Ethernet inputs, and dual IEC power supplies for maximum reliability during mission-critical productions. A dedicated 1G Ethernet control port enables seamless integration with ATEM switchers and network-based workflows.
Supporting UHD 4K up to 60fps, 10-bit 4:2:2 color, Rec.709 and Rec.2020 color spaces, and industry-standard SMPTE 2110 protocols, the Monitoring Rack Panel 40 delivers accurate monitoring for modern IP video infrastructures. Built-in talkback support via a 5-pin XLR connection simplifies communication between operators and production teams during live events.
Whether you're upgrading an existing broadcast facility or building a new SMPTE 2110 workflow, the ATEM Monitoring Rack Panel 40 offers dependable monitoring, intuitive controls, and seamless compatibility with professional IP production systems.
You may also be interested in our Blackmagic Design Video Converters, ATEM Switchers, and Broadcast Monitors to complete your production workflow.
Frequently Asked Questions
1. What is the Blackmagic Design ATEM Monitoring Rack Panel 40 used for?
It is designed to monitor SMPTE 2110 IP video streams by converting them into 12G-SDI and HDMI outputs for professional broadcast monitors.
2. Does it support UHD 4K monitoring?
Yes. It supports UHD 4K video up to 3840 × 2160 at 60fps, along with Full HD and HD formats.
3. Does it have redundant network connections?
Yes. It includes dual 10G Ethernet ports supporting redundant SMPTE 2022-7 IP video delivery.
4. Can it be integrated with ATEM switchers?
Yes. The dedicated 1G Ethernet control port allows integration with ATEM switchers and network control systems.
5. Does it support talkback?
Yes. A built-in 5-pin XLR talkback interface allows communication during live productions.
In the Box
x- Blackmagic Design ATEM Monitoring Rack Panel 40
- Limited 1-Year Manufacturer Warranty
Specs
x| Brand | Blackmagic Design |
|---|---|
| Model | ATEM Monitoring Rack Panel 40 |
| Rack Size | 2 RU |
| Compatibility | Not specified by manufacturer |
| Buttons | 42 Backlit LED Buttons (8 Source, 4 Transition, 6 Talkback & Mix) |
| Display | 5-inch LCD (Non-Touch) |
| Supported Video Formats | UHD 4K, Full HD 1080p/i, HD 720p |
| Maximum Resolution | 3840 × 2160p at up to 60 fps |
| Color Processing | 10-Bit, 4:2:2 |
| Color Spaces | Rec.709, Rec.2020 |
| Video Standards | SMPTE 2110-20, 2110-21, 2110-30, 2110-40, SMPTE 2022-7 |
| Supported Codec | SMPTE 2110 IP, Optional Blackmagic IP10 (2160p59.94/60) |
| Supported Protocols | IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2, NMOS |
| USB Port | 1 × USB-C (Firmware Updates Only) |

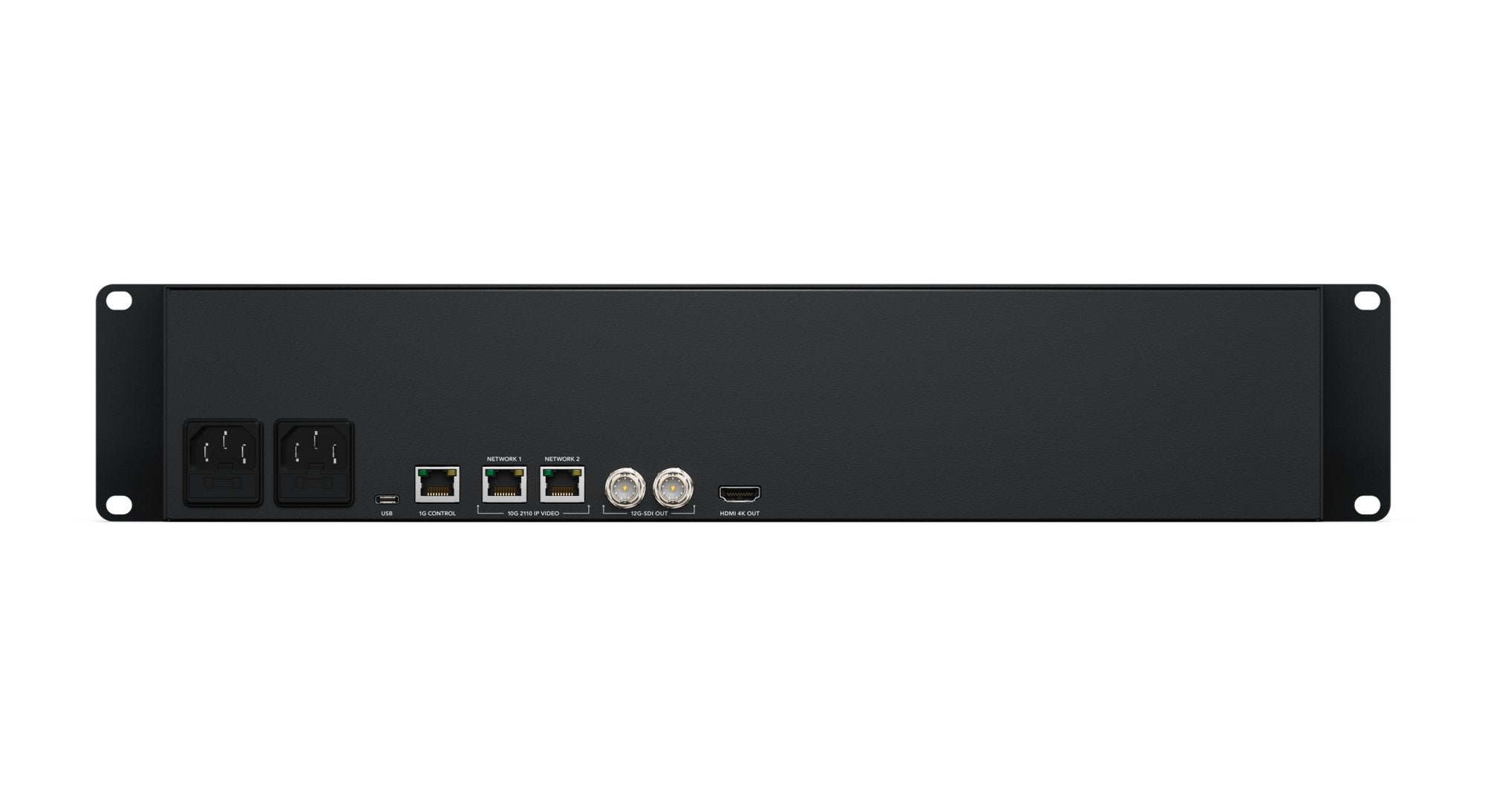

| Video Inputs | 2 × RJ45 Redundant 10G Ethernet |
| Video Outputs | 2 × 12G-SDI (Program, Preview, Multiview), 1 × HDMI 2.0 (Multiview) |
| Audio I/O | 1 × 5-Pin XLR Headphone/Microphone (Talkback) |
| Control Port | 1 × RJ45 1G Ethernet |
| Software | ATEM Setup Utility, ATEM Software Control Panel |
| Supported Operating Systems | macOS Sonoma 14+, Sequoia 15+, Tahoe 26+, Windows 10, Windows 11, Windows 11 ARM |
| Power Source | 100–240 VAC, 50/60 Hz |
| Power Input | 2 × IEC C14 (Redundant) |
| Mounting | 2 × Rack Ears |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | Up to 90% (Non-Condensing) |
| Dimensions | 48.3 × 22.71 × 8.84 cm (19 × 8.94 × 3.48") |
| Color | Black |
