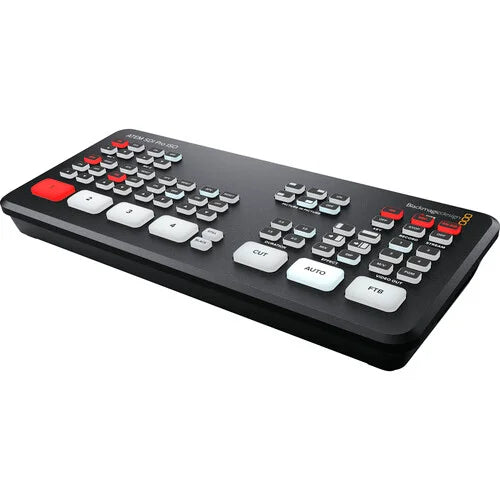

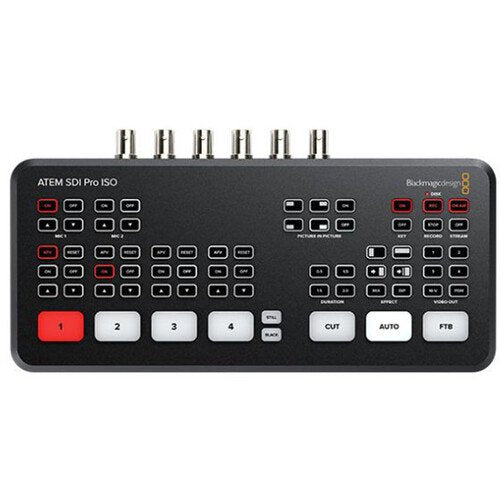

Blackmagic Design ATEM SDI Pro ISO Switcher
SKU: SWATEMMXEPBPRISO
Key Features
- 16 x 6G-SDI Inputs with Loop Outputs
- 1 x HDMI, 4 x SDI Multiview Outputs
- Supports SD, HD, Ultra HD 4K, DCI 4K
- 2 x 2, 3 x 3, 4 x 4 Multiview Grids
- Built-In LCD with Spin Knob Control
- Push Buttons on Front Panel
- Ethernet for Remote Control
- 1 RU Machined Aluminum Chassis
- Built-In Multi-Voltage Power Supply
- 3,161.00 AED
- 3,161.00 AED
- Unit price
- per
Dimensions: 26.67 x 18.28 x 6.6 cm
Weight: 1.06 kg
Description
xThe Blackmagic Design ATEM SDI Pro ISO is a compact professional live production switcher designed for multi-camera streaming, live events, and video production. It features four standards-converted 3G-SDI inputs and supports HD video up to 1080p60. Each SDI input includes re-synchronization and frame rate and format conversion.
The switcher includes built-in hardware streaming through Ethernet, allowing direct streaming using RTMP or SRT without requiring additional streaming software. It also provides a built-in control panel, HD multiview monitoring, DVE transitions, chroma keying, media playback, and a Fairlight audio mixer with EQ and dynamics.
For post-production, the ATEM SDI Pro ISO can record the program output and all four SDI inputs as separate H.264 files to external USB-C storage. It also creates a DaVinci Resolve project file, making it possible to refine the live production later using the recorded camera sources.
For more professional switchers and controllers, explore the Systec Switchers & Controllers collection.
FAQs
How many video inputs does the ATEM SDI Pro ISO have?
It has four 3G-SDI video inputs with built-in re-synchronization and frame rate and format conversion.
Can it stream directly to the internet?
Yes. It supports direct live streaming using RTMP and SRT through Ethernet or a shared internet connection over USB-C.
Can it record each camera separately?
Yes. The ATEM SDI Pro ISO can record all four SDI inputs as individual H.264 files, along with the program output, to external USB-C storage.
Does it create a DaVinci Resolve project?
Yes. During ISO recording, it saves a DaVinci Resolve project file that can be opened for editing, audio remixing, and color correction.
Does it include multiview monitoring?
Yes. It provides an HD 10-view multiview showing program/preview, SDI inputs, media player, streaming and recording status, and audio meters.
Specs
xSpecifications
| Product Type | Live production and streaming switcher |
|---|---|
| Video Inputs | 4 x 3G-SDI, 10-bit HD switchable |
| Video Input Re-Sync | All 4 SDI inputs |
| Frame Rate Conversion | Built-in on all 4 SDI inputs |
| SDI Program Outputs | 2 |
| Auxiliary Outputs | 2 |
| Video Standards | 720p50/59.94/60 and 1080p23.98/24/25/29.97/30/50/59.94/60, plus 1080i50/59.94/60 |
| Video Sampling | 4:2:2 YUV |
| Color Precision | 10-bit |
| Color Space | Rec. 709 |
| Upstream Keyers | 1 |
| Downstream Keyers | 1 |
| Advanced Chroma Keyer | 1 |
| Linear/Luma Keyers | 2 |
| DVE | 1 with borders and drop shadow |
| Transition Keyer | DVE |
| Audio Mixer | 6 input, 2-channel mixer |
| Audio Inputs | 2 x 3.5mm stereo mini jack |
| Audio Output | Embedded audio and USB-C digital audio output |
| Media Player | 1 with fill and key |
| Media Pool | 20 still images with fill and key |
| Live Streaming | RTMP and SRT over Ethernet or USB-C internet connection |
| ISO Recording | 4 SDI input recordings plus program output |
| Recording Format | H.264 MP4 with AAC audio |
| DaVinci Resolve Project | Recorded program switching saved as a .drp project |
| Multiview | HD 10-view multiview |
| Ethernet | 10/100/1000 Base-T |
| USB | 1 x USB-C 3.1 Gen 1 |
| Control Software | ATEM Software Control for Mac and Windows |
| Operating Systems | macOS 14.0 Sonoma or later and Windows 10/11 |
| Power Supply | External 12V DC power supply |
| Power Consumption | 36W |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -10°C to 60°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
