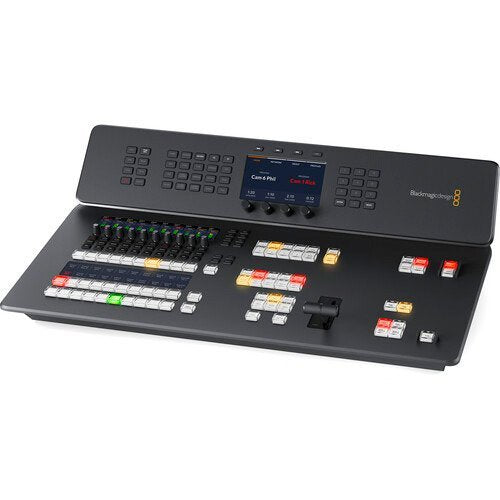

BlackMagic Design ATEM Television Studio HD8
SKU: SWATEMTVSTA/HD08
Key Features
- 8-Input 3G-SDI 1080p60 Live Switcher
- Redesigned Buttons and Layout
- Streaming Support, USB & M.2 Recording
- Blackmagic Cloud Integration
- Webcam Support, Runs Blackmagic OS
- Up to 16 Multiview Output Sources
- Audio Mixing, Transitions, T-Bar, AUX
- Customizable Electronic LCDs
- Studio Camera Control
- Timecode, MADI, Talkback
- 11,110.00 AED
- 11,110.00 AED
- Unit price
- per
Dimensions: 72.39 x 54.61 x 25.4 cm
Weight: 11.86 kg
Description
xThe Blackmagic Design ATEM Television Studio HD8 is a compact professional live production switcher with a built-in broadcast control panel. It features eight standards-converted 3G-SDI inputs for HD production up to 1080p60, along with built-in streaming, recording, multiview, USB webcam output, and professional audio mixing.
Designed for broadcast studios, live events, streaming, and remote production, the HD8 includes four ATEM Advanced Chroma Keyers, two downstream keyers, two media players, SuperSource, DVEs, talkback, and camera control. Its integrated control panel provides dedicated buttons, LCD labels, a T-bar, joystick, and other controls for fast live switching.
The switcher supports direct RTMP streaming over Ethernet or USB-C and can record programs to external USB-C storage. It also includes a four-port 10/100/1000 Ethernet switch, MADI audio connections, timecode, reference, and USB-C webcam output. Explore more professional Switchers & Controllers from Systec International.
FAQs
How many video inputs does the ATEM Television Studio HD8 have?
It has eight 3G-SDI video inputs with built-in re-sync and frame-rate and format conversion.
Does the ATEM Television Studio HD8 support live streaming?
Yes. It supports direct RTMP live streaming over Ethernet or through a shared internet connection over USB-C.
Can it record video?
Yes. The HD8 can record the program to external storage connected through its USB-C expansion ports. It records HD programs as H.264 MP4 files with AAC audio.
Does it have a built-in audio mixer?
Yes. It features a 58-channel audio mixer with EQ, dynamics, level and peak metering, and master gain control.
What type of multiview does it support?
The HD8 provides SDI and HDMI multiview with configurable layouts of 16, 13, 10, 7, or 4 views.
Specs
xSpecifications
| Product Type | Professional HD live production switcher |
|---|---|
| Video Inputs | 8 x 3G-SDI |
| Video Outputs | 12 x SDI, 1 x HDMI |
| SDI Rates | 1.5G and 3G |
| HD Video Standards | 720p50/59.94/60 and 1080i/p standards up to 1080p60 |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| SDI Aux Outputs | 2 |
| Multiview Outputs | 1 x 3G-SDI and 1 x HDMI |
| Multiview Layouts | 16, 13, 10, 7 or 4 views |
| Audio Mixer | 58-channel mixer with 6-band parametric EQ and dynamics |
| Audio Inputs | 2 x XLR balanced, 32-channel MADI, 2 x RCA stereo, 5-pin XLR talkback |
| Audio Outputs | 4 x 1/4-inch jack, 64-channel MADI, 5-pin XLR talkback |
| Keyers | 4 upstream keyers, 2 downstream keyers, 4 Advanced Chroma Keyers |
| DVE | 2 |
| SuperSource | 1 |
| Media Players | 2 with fill and key |
| Streaming | RTMP over Ethernet or USB-C internet connection |
| Recording | H.264 MP4 with AAC audio to external USB-C media |
| Webcam Output | 2 x USB-C, 720p or 1080p at program frame rate |
| Ethernet | 4 x RJ45, 10/100/1000 Base-T network switch |
| Timecode | 1 x BNC input and 1 x BNC output |
| Reference | 1 x BNC input and 1 x BNC output, Tri-Sync or Black Burst |
| Remote Control | RJ12 with RS-422 support |
| Operating Systems | macOS 14 Sonoma or later and Windows 10/11 |
| Power Supply | 100–240V AC, 50/60Hz with 12V DC XLR input |
| Power Usage | 100W maximum |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Mounting | Desktop or in-desk mount |
| Warranty | 1 Year Limited Manufacturer's Warranty |
