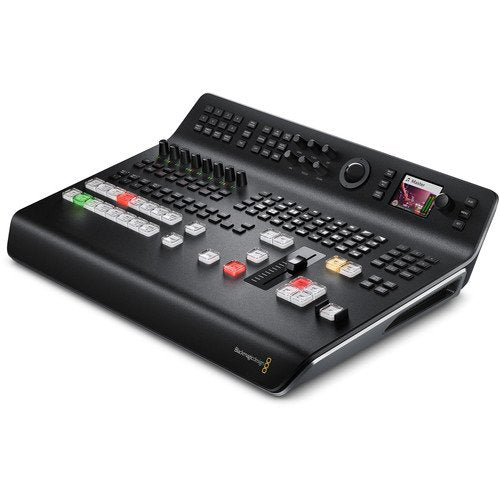

Blackmagic Design ATEM Television Studio Pro 4K
SKU: SWATEMTVSTU/PRO4K
Key Features
- 8-Channel 12G-SDI Switcher
- HD and UHD Signal-Compatible to 2160p60
- 12-Input, 2-Channel Audio Mixer
- Re-Sync on All Inputs
- UHD 4K Multiview Output
- Low-Latency Converter
- Built-In Talkback Feature
- CCU Control for Select Cameras
- ATEM Advanced Chroma Keyer
- Powerful DVE Processor, 2 x Clip Pool
- 12,235.00 AED
- 12,235.00 AED
- Unit price
- per

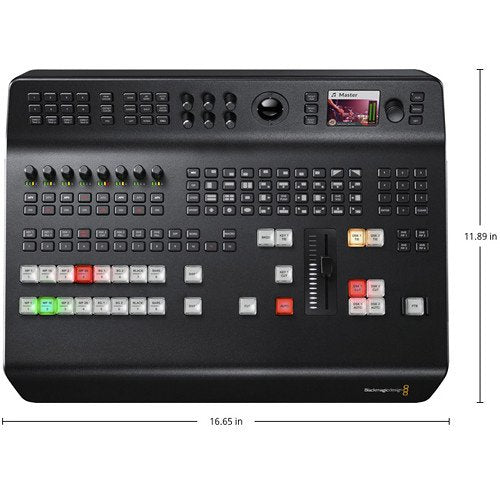

Dimensions: 54 x 43 x 24 cm
Weight: 7 kg
Description
xThe Blackmagic Design ATEM Television Studio Pro 4K is a professional live production switcher with eight independent 12G-SDI inputs. It supports HD and Ultra HD signals up to 2160p60, with re-sync and format conversion on all inputs for flexible broadcast and live production workflows.
Its integrated control panel provides direct access to switching, transitions, keying, DVE effects, and camera control. The switcher includes an advanced chroma keyer, two DVE processors, SuperSource, two media players, and a built-in Fairlight audio mixer for professional live production.
The ATEM Television Studio Pro 4K also supports UHD multiview, talkback, direct streaming, and USB-C recording and webcam output. For more professional live production equipment, explore the Systec Switchers & Controllers collection.
FAQs
How many SDI inputs does the ATEM Television Studio Pro 4K have?
It has eight independent 12G-SDI inputs with re-sync and format conversion on all inputs.
Does it support 4K video?
Yes. It supports Ultra HD video standards up to 2160p60 through its 12G-SDI connections.
Does it have a built-in audio mixer?
Yes. It includes a Fairlight audio mixer with EQ, dynamics, level and peak metering, and master gain control.
Does it support live streaming?
Yes. It supports direct streaming using RTMP over Ethernet or a shared internet connection through USB-C.
Does it include a multiview output?
Yes. It provides UHD multiview through SDI or HDMI with configurable monitoring views, labels, and audio meters.
Specs
xSpecifications
| Product Type | Professional Ultra HD live production switcher |
|---|---|
| SDI Video Inputs | 8 x 12G-SDI |
| SDI Video Outputs | 12 x SDI |
| SDI Rates | 1.5G, 3G, 6G and 12G |
| Video Standards | HD and Ultra HD up to 2160p60 |
| Video Sampling | 4:2:2, 10-bit |
| Video Input Re-Sync | All 8 inputs |
| Frame Rate and Format Conversion | All 8 inputs |
| SDI Aux Outputs | 10 |
| Program Output | 1 x SDI |
| HDMI Output | 1 x HDMI 2.0 |
| Multi View | 1 x 12G-SDI and 1 x HDMI 2.0 |
| Upstream Keyers | 4 |
| Downstream Keyers | 2 |
| Advanced Chroma Keyers | 4 |
| DVEs | 2 |
| SuperSource | 1 |
| Media Players | 2 |
| Audio Mixer | Fairlight mixer with 6-band parametric EQ, expander, gate, compressor and limiter |
| Streaming | Direct RTMP streaming over Ethernet or USB-C |
| Webcam Output | 2 x USB-C supporting 720p or 1080p at program frame rate |
| Ethernet | 4 x RJ45 supporting 10/100/1000/10G Base-T |
| Computer Interface | 2 x USB-C with USB 3.0 |
| Talkback | RJ45 for compatible third-party talkback systems |
| Remote Control | RJ12 supporting RS-422 |
| Power Supply | 100–240V AC, 50/60Hz with IEC C14 socket |
| Power Consumption | 120W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
