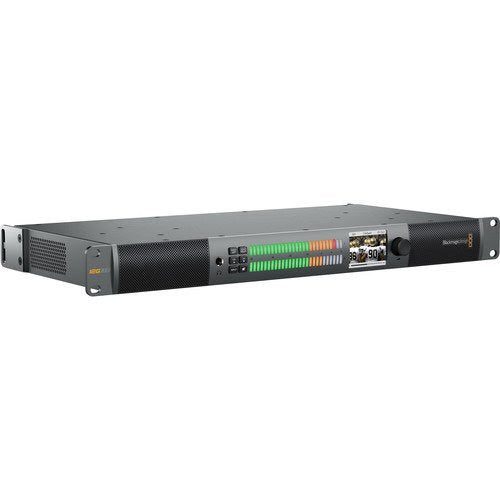

Blackmagic Design Audio Monitor 12G (1 RU)
SKU: HDL-AUDMON1RU12G
Key Features
- Dual-Subwoofer Design
- Class-D Amplifiers
- 12G-SDI, AES/EBU & Analog Inputs
- SDI Loop Out & HDMI 2.0 Output
- LCD Display & Audio Level Meters
- 5,428.00 AED
- 5,428.00 AED
- Unit price
- per
Dimensions: 49.53 x 27.68 x 8.63 cm
Weight: 3.13 kg
Description
xThe Blackmagic Design Audio Monitor 12G (1 RU) is a professional audio and video monitoring solution designed for broadcast racks, live production, post-production, and edit facilities. Its dual-subwoofer design, wide-range speakers, and Class-D amplifiers provide powerful audio monitoring in a compact rackmount format.
It features a 12G-SDI input supporting SD, HD, and Ultra HD video up to 2160p60, along with an SDI loop output and HDMI 2.0 output for connecting large-screen displays. The unit can automatically switch between supported SDI formats and provides access to embedded SDI audio channels.
For audio monitoring, the Audio Monitor 12G includes balanced XLR analog inputs, AES/EBU digital audio, RCA HiFi inputs, and a headphone output. Its front panel includes a 2.2-inch LCD, illuminated controls, and RGB audio meters supporting VU, PPM, and loudness monitoring.
For more professional audio equipment, explore the Systec Professional Audio collection.
FAQs
What is the Blackmagic Audio Monitor 12G used for?
It is designed for professional audio and video monitoring in broadcast, live production, post-production, and edit environments.
What video input does it support?
It has one 12G-SDI input supporting SD, HD, and Ultra HD formats up to 2160p60.
Does it have an HDMI output?
Yes. It provides an HDMI 2.0 output for monitoring the selected SDI video source on a compatible display.
What audio inputs are available?
It includes balanced XLR analog inputs, balanced AES/EBU digital audio, and two RCA HiFi inputs.
What type of audio metering does it provide?
The front panel has two RGB LED audio meters supporting VU, PPM, and loudness metering, including EBU and BBC options.
Specs
xSpecifications
| Product Type | 1RU broadcast audio and video monitor |
|---|---|
| SDI Video Input | 1 x 12G-SDI |
| SDI Video Output | 1 x reclocked SDI loop output |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G |
| HDMI Output | 1 x HDMI 2.0 |
| Analog Audio Inputs | 2 x balanced XLR and 2 x RCA HiFi |
| Digital Audio Input | 2-channel balanced 110Ω AES/EBU via XLR |
| Analog Audio Output | 1 x 6.5mm headphone socket |
| SDI Audio Input | 16 channels embedded audio |
| SDI Audio Output | 16 channels embedded audio loop output |
| HDMI Audio Output | 8 channels embedded audio |
| Built-in Speakers | Stereo with 2-way crossover and independent stereo subwoofers |
| Audio Metering | 2 x 27-segment RGB LED VU, PPM, or loudness meters |
| Audio Sampling | 96 kHz, 24-bit |
| Video Sampling | 4:2:2 and 4:4:4 |
| Display | 2.2-inch color LCD, 320 × 240 |
| Ethernet | 1Gb/s for configuration and firmware updates |
| USB | USB-C for configuration and firmware updates |
| Power Supply | Internal 100–240V AC |
| Power Consumption | 55W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Mounting | 1RU rackmount |
| Warranty | 1 Year Limited Manufacturer's Warranty |
