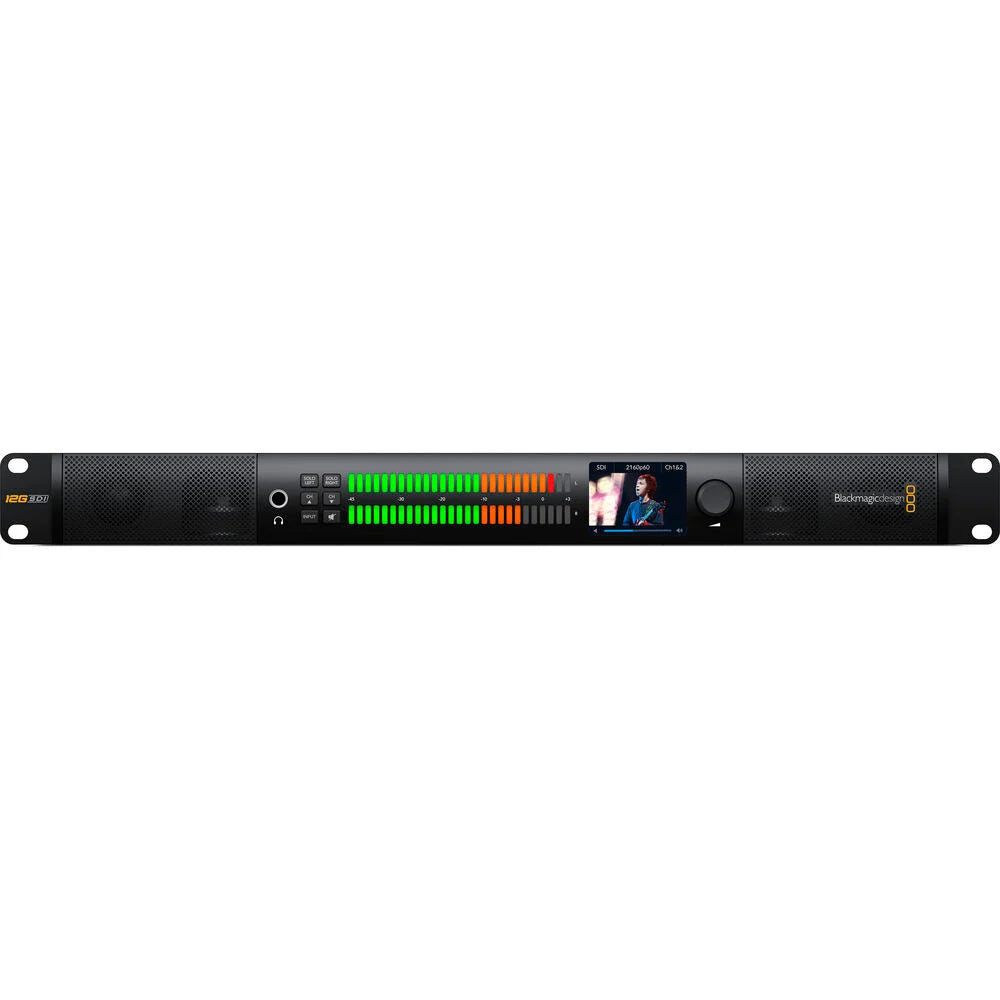

Blackmagic Design Audio Monitor 12G G3 (1 RU)
SKU: HDL-AUDMON1RU12GG3
Key Features
- Dual-Subwoofer Design
- SMPTE 2110 Input Capabilities
- Class-D Amplifiers
- 12G-SDI, AES/EBU, and Analog Inputs
- SDI Loop Out and HDMI 2.0 Output
- LCD Display and Audio Level Meters
- 5,428.00 AED
- 5,428.00 AED
- Unit price
- per
Dimensions: 49 x 25 x 5 cm
Weight: 3 kg
Description
xThe Blackmagic Design Audio Monitor 12G G3 is a professional 1RU rack-mount audio monitoring solution for broadcast, live production, and post-production environments. It combines powerful built-in speakers with 12G-SDI and SMPTE-2110 IP monitoring in a compact design.
The system features a dual-subwoofer design, wide-range speakers, and Class-D amplifiers for clear audio with strong low-frequency response. A large audio meter provides accurate level monitoring, while front-panel controls allow quick source selection, channel solo, and speaker mute.

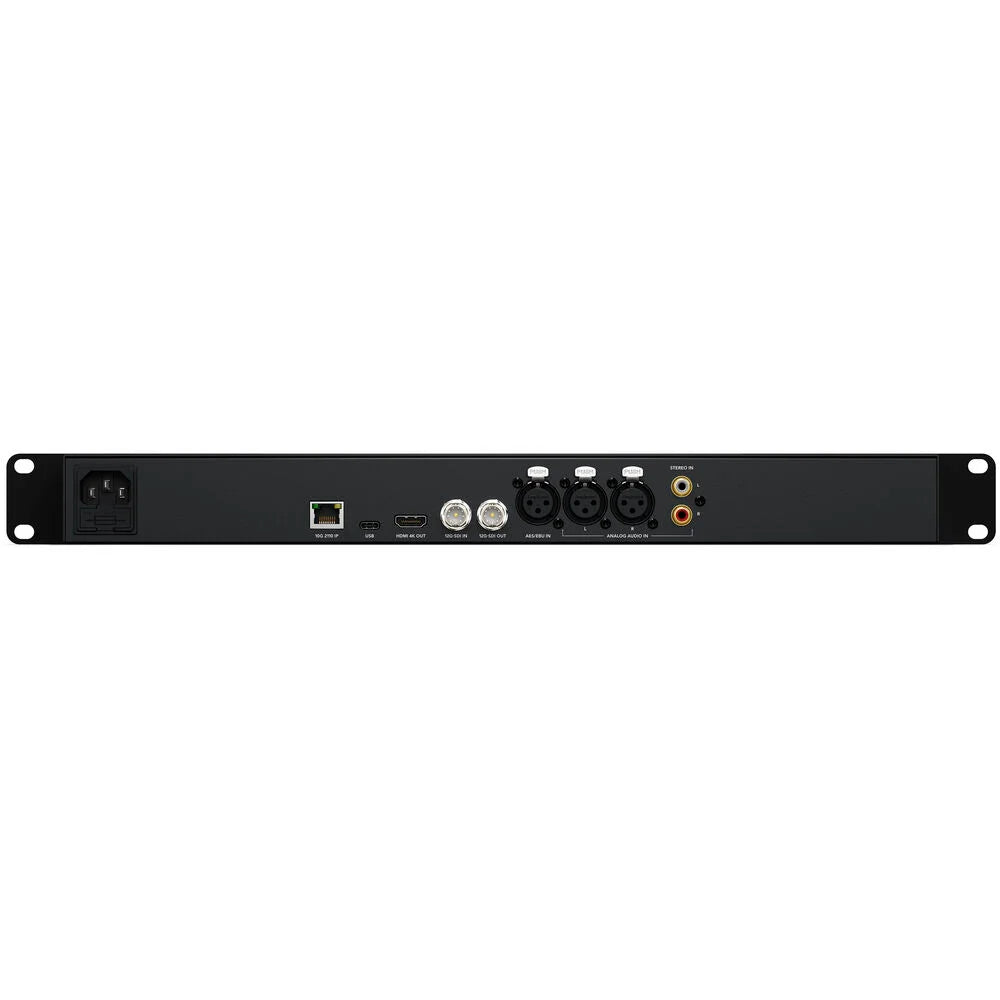

For professional broadcast workflows, the Audio Monitor 12G G3 supports 12G-SDI video and 10G Ethernet SMPTE-2110 IP video without requiring an external IP converter. It also includes balanced analog XLR, HiFi, and AES/EBU audio inputs, plus an HDMI output for monitoring connected video sources.
The compact 1RU design makes it suitable for broadcast racks, production studios, OB vehicles, control rooms, and post-production facilities. Explore more professional monitoring solutions from Systec International.
FAQs
What is the Blackmagic Audio Monitor 12G G3 used for?
It is designed for professional audio monitoring of SDI, SMPTE-2110 IP, analog, HiFi, and AES/EBU sources.
Does it support SMPTE-2110 IP?
Yes. It includes a 10G Ethernet SMPTE-2110 IP input for monitoring IP broadcast systems.
Does it support 12G-SDI?
Yes. It supports SDI rates from 270Mb/s through 12G-SDI and video formats up to Ultra HD and 4K 2160p60.
What audio inputs are included?
It includes balanced analog XLR, HiFi, and AES/EBU audio inputs.
Can it be installed in a rack?
Yes. The Audio Monitor 12G G3 uses a compact 1RU rack-mount design.
Specs
xSpecifications
| Product Type | Rack-Mount Audio Monitor |
|---|---|
| Rack Installation | 1RU |
| SDI Video Input | 1 |
| SDI Video Output | 1 loop output |
| SDI Rates | 270Mb/s, 1.5G, 3G, 6G, 12G |
| HDMI Output | 1 x HDMI 2.0 |
| Analog Audio Inputs | 2 x XLR, 2 x RCA HiFi |
| Digital Audio Input | 1 x XLR AES/EBU |
| Headphone Output | 1 x 6.35mm headphone jack |
| IP Video Input | 10G Ethernet SMPTE-2110 |
| SDI Video Standards | SD, HD, 2K, Ultra HD and 4K |
| Maximum Video Format | 2160p60 |
| Audio Monitoring | Stereo two-way crossover with independent stereo subwoofers |
| Display | 2.2-inch color LCD |
| Display Resolution | 320 x 240 |
| Control | Built-in control panel with display |
| Precision Time Protocol | IEEE 1588-2008 PTP v2, ST 2059-1, ST 2059-2 |
| NMOS | IS-04 v1.3.2 and IS-05 v1.1.2 |
| Power Supply | Internal 100–240V AC |
| Power Usage | 55W |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 45°C / -4°F to 113°F |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
