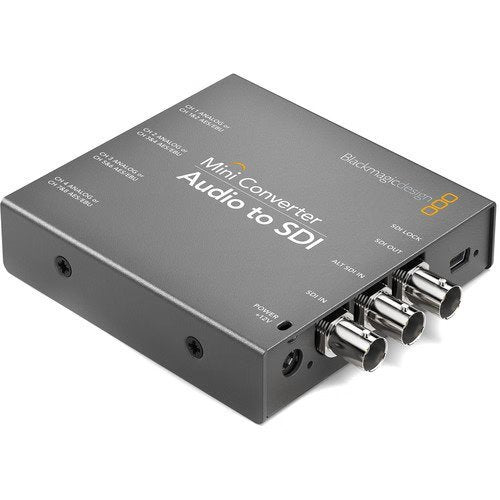

Blackmagic Design Audio to SDI 2 Mini Converter
SKU: CONVMCAUDS2
Key Features
- Embed Audio into up to 1080p SDI Signals
- Four 1/4" Audio Input Jacks
- Supports 4 Channels of Analog Audio
- Supports 8 Channels of AES/EBU Audio
- Redundant SDI Backup Input
- 1,049.00 AED
- 1,049.00 AED
- Unit price
- per
Dimensions: 2.63 x 14.09 x 6.6 cm
Weight: 0.483 kg
Description
xThe Blackmagic Design Mini Converter Audio to SDI is a professional audio embedding solution designed to combine external audio with SDI video signals. It supports SD, HD, and 3G-SDI formats, making it suitable for broadcast, studio, live production, post-production, and professional AV applications.
The converter accepts four channels of balanced analog audio or eight channels of balanced AES/EBU digital audio. This allows audio from professional mixers, decks, and other audio equipment to be embedded directly into an SDI video signal.

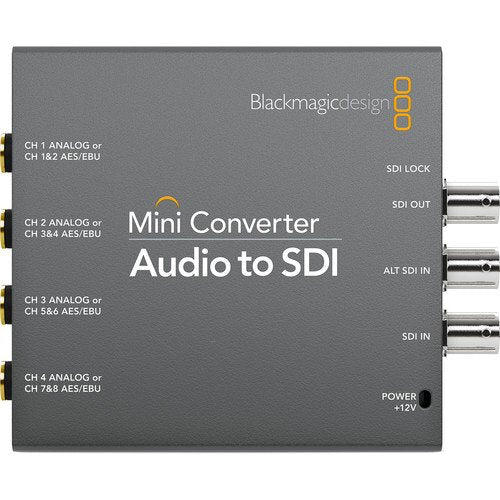

It features one SDI input, one redundant SDI input, and one SDI output. The alternate SDI input provides automatic failover if the primary SDI input loses its signal, helping maintain reliable video connectivity during professional production workflows.
The Mini Converter Audio to SDI automatically detects incoming SD, HD, and 3G-SDI video formats. It also provides SDI re-clocking and supports embedded audio at 48 kHz and 24-bit, helping maintain reliable audio and video performance.

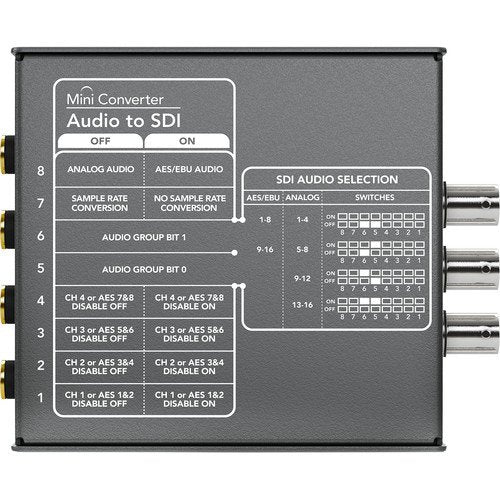

Configuration is available through the built-in mini switches or compatible computer software using the USB 2.0 connection. The USB port can also be used for firmware updates. A 12V universal power supply with international socket adapters is included.
For more professional video equipment, explore our Production & Studio range and Video products.
Frequently Asked Questions
What is the Blackmagic Design Audio to SDI Mini Converter used for?
The Mini Converter Audio to SDI is used to embed external audio into an SDI video signal, making it suitable for broadcast, studio, live production, and professional AV workflows.
How many analog audio channels does it support?
The converter supports 4 channels of balanced analog audio.
How many AES/EBU audio channels does it support?
It supports 8 channels of balanced AES/EBU digital audio.
What SDI formats does the converter support?
The Mini Converter Audio to SDI supports SD-SDI, HD-SDI, and 3G-SDI formats with automatic input detection.
Specs
x| Component | Specification |
|---|---|
| SDI Video Inputs | 1 x SD, HD or 3G-SDI; 1 x ALT SDI input for automatic switch over if the main input fails |
| SDI Video Output | 1 x Embedded SDI output |
| Analog Audio Inputs | 4 channels of balanced analog audio via standard 1/4-inch jack connections |
| Digital Audio Inputs | 8 channels of balanced AES/EBU digital audio via standard 1/4-inch jack connections |
| SDI Redundant Input | Automatically switches over if the main SDI input is lost |
| Multi-Rate Support | Automatic detection of SD, HD and 3G-SDI |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B, SMPTE 425M Level B, ITU-R BT.656 and ITU-R BT.601 |
| SDI Video Rates | 270 Mb/s, 1.5G and 3G |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| SDI Color Precision | 4:2:2, 4:4:4 |
| SDI Color Space | YUV, RGB |
| SDI Auto Switching | Automatically selects between SD, HD and 3G-SDI |
| Reclocking | Yes |
| Settings Control | Mini switches or USB software |
| Software Updates | USB 2.0 high-speed interface, 480 Mb/s |
| Software Control | Mac and Windows software |
| Operating Systems | macOS 10.15 Catalina, macOS 11.1 Big Sur or later, Windows 10 64-bit |
| Power Supply | +12V universal power supply with international socket adapters |
| Power Consumption | 8.40 Watts |
| Operational Voltage Range | 12V DC |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 45°C (-4°F to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Mini Converter Audio to SDI and 12V universal power supply with international socket adapters |
| Warranty | 3-year limited manufacturer's warranty |
