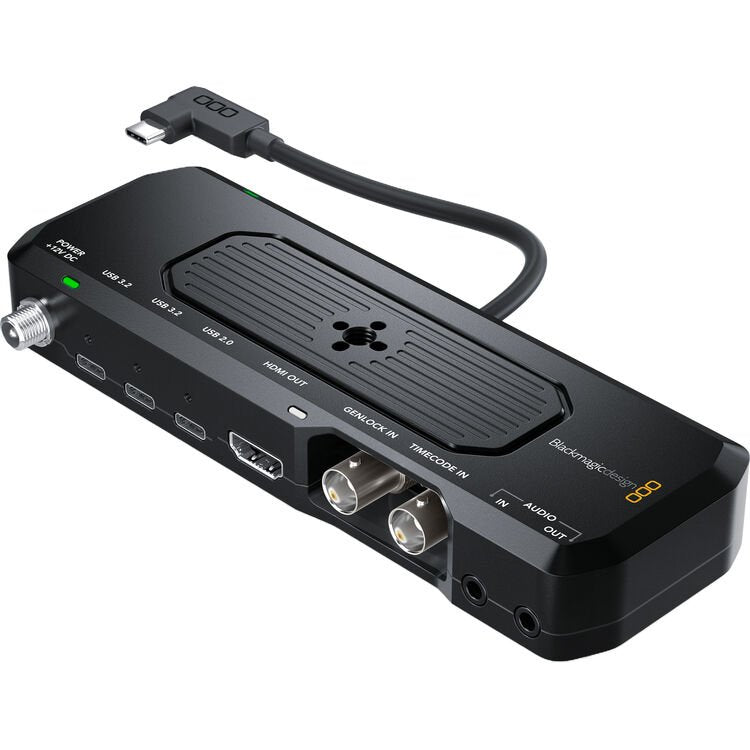

Blackmagic Design Camera ProDock
SKU: CINTDOCKPRO
Key Features
- For Apple iPhone 17 Pro & Pro Max

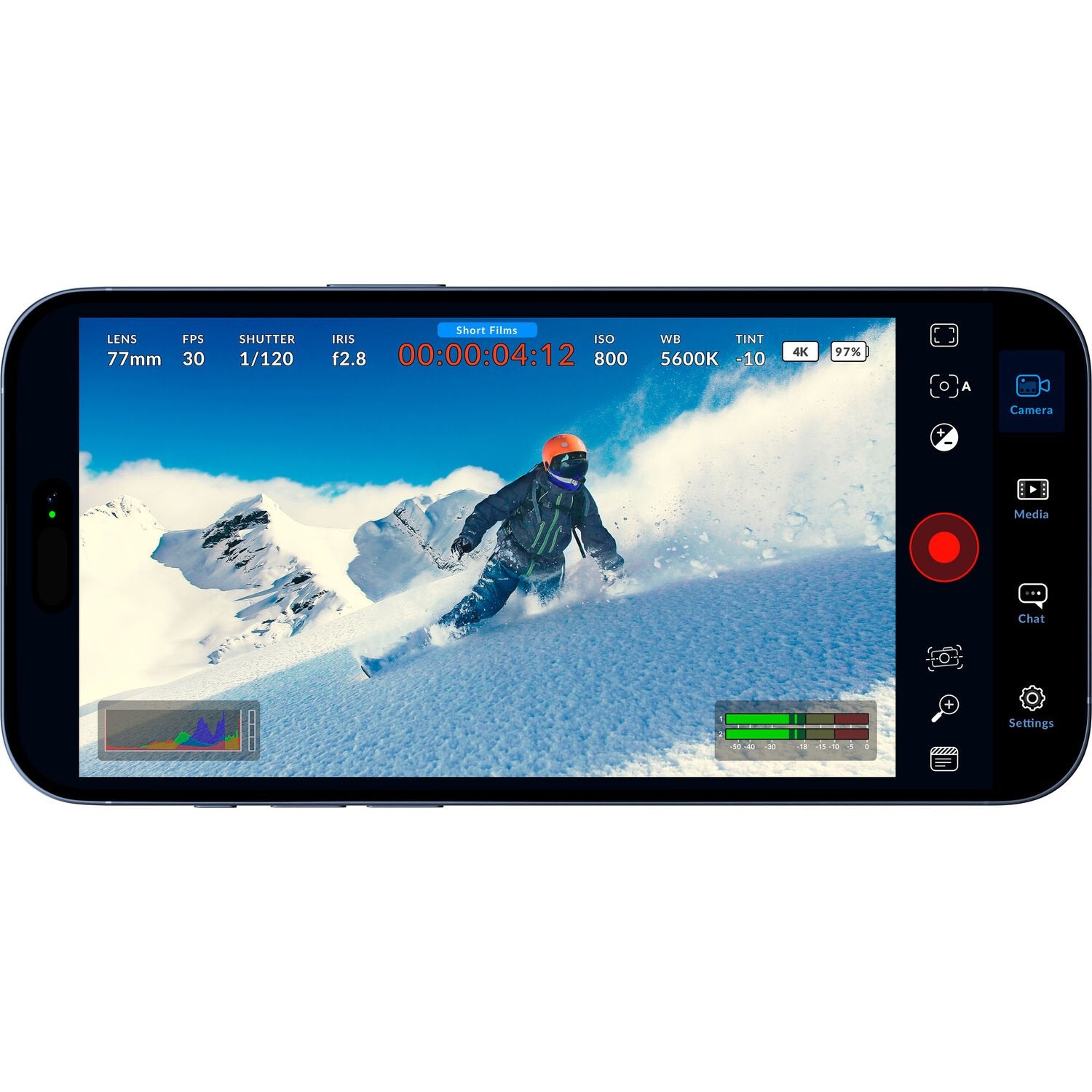

- Works with BlackMagic Camera App
- Access ProRes RAW & Genlock on iPhone
- Genlock & Timecode Ports for Camera Sync
- Flicker-Free Camera & LED Wall Sync
- HDMI Output for Monitoring Footage
- 3 x USB-C for Control & Storage Devices
- 3.5mm Mic Input & Headphone Output
- Power All with Locking 12 VDC Port
- Top & Bottom 1/4"-20 Pin Lock Mounting
- 1,280.00 AED
- 1,280.00 AED
- Unit price
- per
Dimensions: 27.5 x 12.5 x 7.8 cm
Weight: 0.9 kg
Description

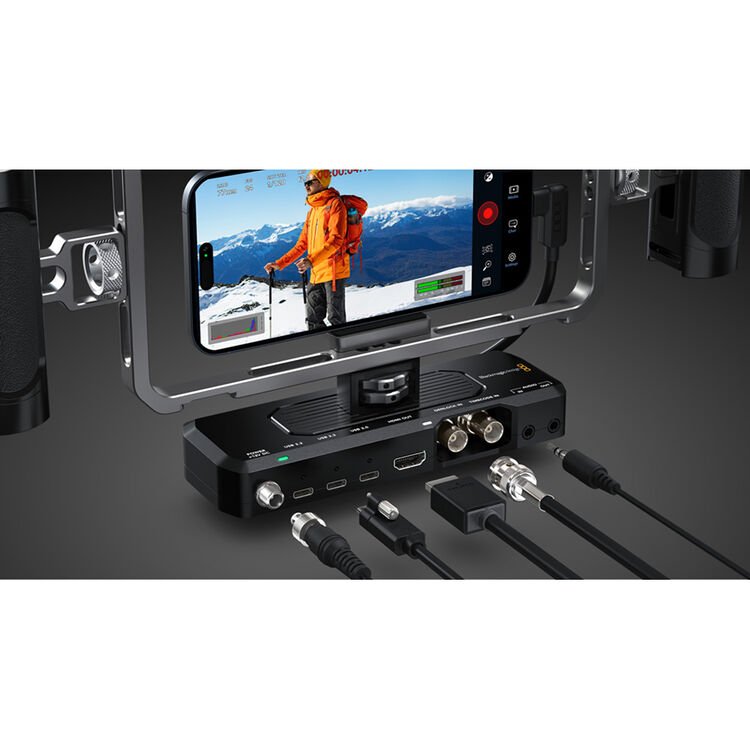

xThe Blackmagic Design Camera ProDock transforms a compatible iPhone into a professional production camera by adding the connections needed for studio, broadcast, multicamera, and cinematic workflows. It works with the Blackmagic Camera app for iPhone and provides HDMI monitoring, external storage, audio, genlock, timecode, and power connections.

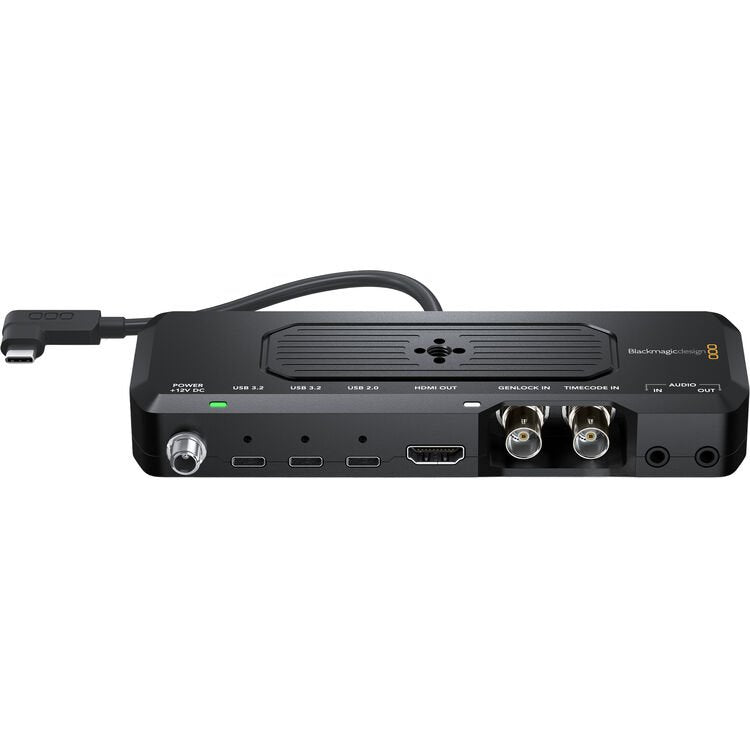

The ProDock features one HDMI 2.1 output for connecting an external monitor or television. It also includes three USB-C ports, with two USB 3.2 ports designed for high-speed external media recording and one USB 2.0 port for accessories.
For professional synchronization, the Camera ProDock provides BNC genlock and timecode inputs, allowing compatible iPhones to synchronize with other cameras and production equipment. Genlock is supported on iPhone 17 Pro and iPhone 17 Pro Max models and can also help synchronize cameras with LED walls for flicker-free virtual production.
The dock includes 3.5mm stereo microphone and headphone connections, while its locking 12V to 15V DC input provides power for the dock, connected iPhone, external USB-C drives, and accessories. Its top and bottom 1/4"-20 pin-lock mounting points make it easy to integrate into professional camera rigs.
The Blackmagic Camera ProDock is an excellent choice for filmmakers, content creators, live production teams, and multicamera operators who want to expand an iPhone into a more versatile professional video system.
For more professional video production equipment, explore our Blackmagic Design collection and Camera Accessories range.
Frequently Asked Questions
What is the Blackmagic Camera ProDock used for?
The Camera ProDock adds professional video, audio, synchronization, storage, and power connections to compatible iPhones for professional production workflows.
Which iPhones are compatible with the Camera ProDock?
The ProDock supports iPhone 15 Pro, iPhone 15 Pro Max, iPhone 16 Pro, iPhone 16 Pro Max, iPhone 17 Pro, and iPhone 17 Pro Max for its supported features. Genlock is available specifically on iPhone 17 Pro and iPhone 17 Pro Max.
Does the Camera ProDock support external SSD recording?
Yes. Two of its three USB-C ports are USB 3.2 high-speed ports designed for recording to external media such as SSDs.
Does it support genlock and timecode?
Yes. The ProDock includes BNC genlock and timecode inputs for synchronizing compatible cameras and production equipment.
What HDMI output does the ProDock have?
It features one HDMI 2.1 Type-A output for monitoring video from the Blackmagic Camera app.
Specs
x| Product Type | Professional iPhone Camera Dock |
|---|---|
| HDMI Output | 1 x HDMI 2.1 Type-A |
| Audio Input | 1 x 3.5mm Stereo Mini-Jack |
| Audio Output | 1 x 3.5mm Stereo Mini-Jack |
| Timecode Input | 1 x BNC; 3.5mm Audio Input Supports Timecode |
| Genlock Input | 1 x BNC, Tri-Sync or Black Burst |
| USB-C Ports | 2 x USB 3.2 High Speed, 1 x USB 2.0 |
| Power Input | +12V to +15V DC, Locking 5.5mm Barrel Connector |
| iPhone Connection | USB-C Cable and Plug |
| USB-C Power Output | 5V, 1.5A, 7.5W Maximum per USB-C Port |
| Video Monitoring | Ultra HD with HDR |
| Audio | 2-Channel Embedded HDMI Audio |
| Status Indicators | Power LED, Front Tally LED, Genlock LED |
| Mounting | 1/4"-20 Pin-Lock Mounting Points, Top and Bottom |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 45°C (-4°F to 113°F) |
| Operating Humidity | 0% to 90% Non-Condensing |
| Supported App | Blackmagic Camera for iOS |
| Operating System | iOS 26 or Later |
