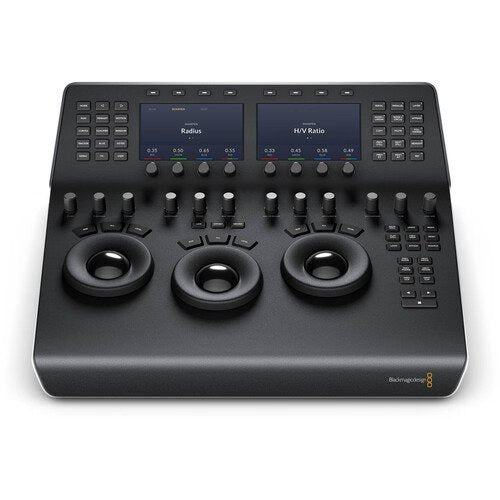

Blackmagic Design DaVinci Resolve Mini Panel
SKU: DV/RES/BBPNLMINI
Key Features
- 3 x High-Resolution Trackballs
- 12 x Primary Correction-Control Knobs
- 18 x Navigation and Transport Keys
- Dedicated Feature Buttons
- 2 x LCD Information Display Screens
- Backlit and Illuminated Buttons
- USB Type-C and Ethernet Interface
- Supports Mac and Windows
- Supports Select Linux Installations
- USB 3.0 Type-A to Type-C Cable Included
- 8,666.00 AED
- 8,666.00 AED
- Unit price
- per
Dimensions: 53.84 x 49.27 x 24.05 cm
Weight: 10.52 kg
Description

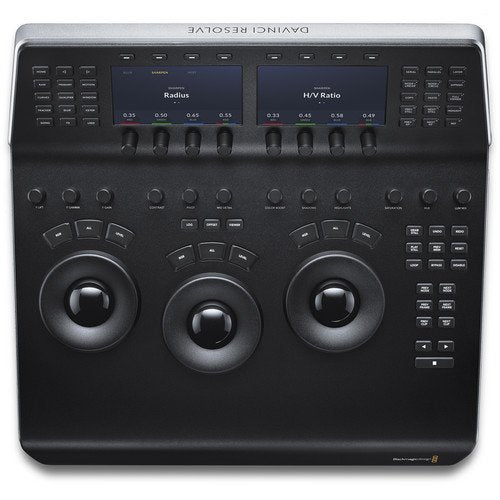

xThe Blackmagic Design DaVinci Resolve Mini Panel is a professional color grading control surface designed for editors and colorists working in DaVinci Resolve. It provides dedicated physical controls for precise color correction and a faster workflow than using a keyboard and mouse alone.
The panel features three high-resolution weighted trackballs, 12 primary correction knobs, and 18 dedicated navigation and transport keys. Two built-in LCD screens display menus and parameters, while eight customizable soft knobs and eight soft buttons provide quick access to grading tools and settings.

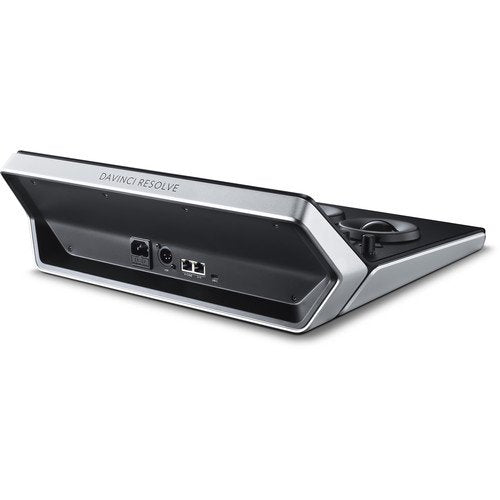

The Mini Panel connects through USB Type-C or Gigabit Ethernet, with Ethernet supporting PoE. It can be powered through AC, 12V DC via a 4-pin XLR connection, or PoE, making it suitable for desktop, studio, and mobile grading environments.
For professional video switching and control equipment, explore the Systec Switchers & Controllers collection.
FAQs
What is the DaVinci Resolve Mini Panel used for?
It provides dedicated hardware controls for professional color correction, grading, timeline navigation, and other DaVinci Resolve workflows.
How many trackballs does it have?
It features three high-resolution weighted trackballs with outer control rings.
Does it have LCD displays?
Yes. The Mini Panel has two 5-inch LCD screens for displaying menus and grading parameters.
How does it connect to a computer?
It supports USB Type-C and two Gigabit Ethernet connections, with one Ethernet connection supporting PoE.
Is DaVinci Resolve Studio included?
Yes. Blackmagic Design lists a DaVinci Resolve Studio activation key as included with the Mini Panel.
Specs
xSpecifications
| Product Type | Professional DaVinci Resolve color grading control panel |
|---|---|
| Trackballs | 3 high-resolution weighted trackballs with outer control rings |
| Primary Correction Controls | 12 control knobs |
| Soft Knobs | 8 customizable soft knobs |
| Soft Buttons | 8 customizable soft buttons |
| Navigation and Transport Keys | 18 dedicated keys |
| LCD Displays | 2 x 5-inch LCD screens |
| Knob Resolution | 4096 steps per rotation with push-button reset |
| Computer Interface | USB Type-C |
| Ethernet | 2 x 10/100/1000 Base-T, including 1 x PoE-enabled connection |
| Power Input | 100–240V AC via IEC C14, 12V DC via 4-pin XLR, or PoE |
| Power Consumption | 17W maximum |
| Supported Operating Systems | macOS 13.0 Ventura or later, Windows 10/11, Rocky Linux 8.6 |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Included Software | DaVinci Resolve Studio activation key |
| Warranty | 1 Year Limited Manufacturer's Warranty |
