Key Features
- 8-Lane PCIe Gen3 I/O Card
- Multi-Rate 12G-SDI
- Supports 8K and DCI 8K up to 60 fps
- Single & Dual Link 4:4:4/4:2:2 Signals
- Compatible with Mac, Windows, and Linux
- 3,088.00 AED
- 3,088.00 AED
- Unit price
- per
Dimensions: 18 x 14 x 3 cm
Weight: 0.4 kg
Description

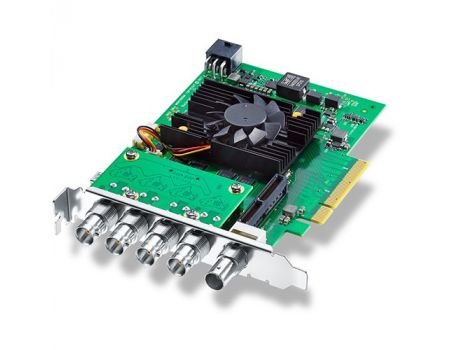

xThe Blackmagic Design DeckLink 8K Pro is a professional PCIe capture and playback card designed for high-end broadcast, post-production, digital cinema, and live production workflows. It features four 12G-SDI connections for capturing and playing back SD, HD, 2K, 4K, and 8K video.
The card supports 8K video up to 60 fps, 12-bit RGB, HDR workflows, and a wide range of professional video formats. It also includes advanced SDI monitoring, analog audio, reference input, and RS-422 deck control for demanding broadcast and post-production environments.
The DeckLink 8K Pro works with professional applications including DaVinci Resolve, Adobe Premiere Pro, Final Cut Pro, and Avid Media Composer. For more professional capture and playback solutions, explore the Systec Capture Cards collection.
FAQs
What is the DeckLink 8K Pro used for?
It is designed for professional capture and playback of high-resolution video in broadcast, post-production, digital cinema, and live production.
Does the DeckLink 8K Pro support 8K video?
Yes. It supports 8K video up to 60 fps using its 12G-SDI connections.
How many SDI connections does it have?
The card features four 12G-SDI connections that can be configured for different video formats and workflows.
Does it support HDR?
Yes. The DeckLink 8K Pro supports HDR workflows, including HDR10 and HLG.
Which software works with the DeckLink 8K Pro?
It works with DaVinci Resolve, Adobe Premiere Pro, Final Cut Pro, Avid Media Composer, and other compatible professional video applications.
Specs
xSpecifications
| Product Type | Professional PCIe capture and playback card |
|---|---|
| Computer Interface | PCI Express 8-lane Gen 3 |
| SDI Inputs | 4 x 12G-SDI |
| SDI Outputs | 4 x 12G-SDI |
| Maximum Video Format | 8K up to 60 fps |
| Video Standards | SD, HD, 2K, 4K, and 8K |
| Video Sampling | 4:2:2 YUV and 4:4:4 RGB |
| Color Precision | 8-bit, 10-bit, and 12-bit |
| HDR Support | HDR10 and HLG |
| Embedded SDI Audio | Up to 64 channels |
| Analog Audio | 2-channel balanced analog audio |
| Reference Input | Tri-Sync or Black Burst |
| Device Control | RS-422 deck control |
| Software Compatibility | DaVinci Resolve, Adobe Premiere Pro, Final Cut Pro, Avid Media Composer, and other compatible applications |
| Supported Systems | Compatible Mac, Windows, and Linux systems |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 3 Year Limited Manufacturer's Warranty |
