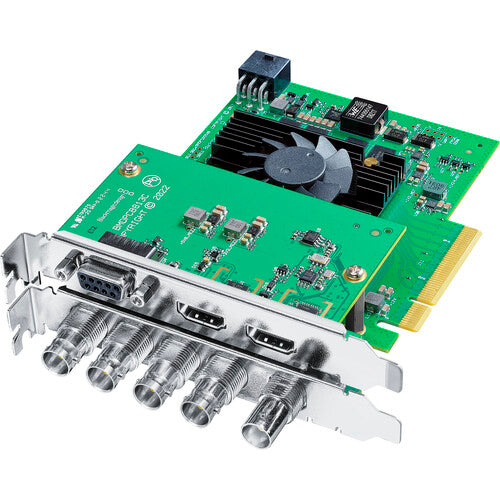

Blackmagic Design DeckLink 8K Pro G2 Capture Card
SKU: BDLKHCPRO8K12GG2
Key Features
- 8K PCIe Capture & Playback Card
- Supports SD, HD, UHD, 4K & 8K Formats
- 4 x Bidirectional 12G-SDI Ports
- HDMI 2.1 Input & Output
- 4:2:2 / 4:4:4 and 2D / 3D Switchable
- RS-422 Deck Control
- HD & 4K at up to 120 fps
- 64 Channels Embedded in 4K / 8K via SDI
- Compatible with macOS, Windows & Linux
- 3,088.00 AED
- 3,088.00 AED
- Unit price
- per
Description
xThe Blackmagic Design DeckLink 8K Pro G2 Capture Card is a professional PCIe capture and playback solution designed for high-resolution video production, post-production, broadcast, and feature film workflows. It supports SD, HD, Ultra HD, 4K, and 8K formats, making it suitable for demanding high-frame-rate and HDR applications.
The card features four bidirectional 12G-SDI connections along with HDMI 2.1 input and output, providing flexible options for professional video capture and playback. Using the DeckLink SDK, up to four video streams can be configured in different directions, formats, or frame rates up to DCI 4K at 60fps for multi-channel workflows.
The DeckLink 8K Pro G2 supports 8- and 10-bit YUV 4:2:2 as well as 10- and 12-bit RGB 4:4:4, with Rec. 2020 color support. It can handle up to 120fps in HD and 4K and up to 60fps in 8K, making it well suited for high-resolution production and high-frame-rate workflows.
For professional audio, the four SDI connections support up to 64 channels of embedded audio in 4K and 8K. The card also includes Tri-Sync or Black Burst synchronization, RS-422 deck control, and PCI Express Gen 3 connectivity.
The DeckLink 8K Pro G2 works with popular professional applications including DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, Avid Media Composer, Fusion, After Effects, OBS Studio, and vMix, making it a versatile solution for professional editing, live production, compositing, and broadcast workflows.
For more professional video production equipment, explore Systec's Capture Cards category and Signal Processing, Converters, Distribution range.
Frequently Asked Questions
What is the Blackmagic Design DeckLink 8K Pro G2?
The DeckLink 8K Pro G2 is a professional PCIe capture and playback card designed for SD, HD, 4K, and 8K video production, post-production, broadcast, and feature film workflows.
How many SDI connections does the DeckLink 8K Pro G2 have?
It features four bidirectional 12G-SDI connections, which can function as inputs or outputs depending on the selected workflow.
Does the DeckLink 8K Pro G2 support 8K video?
Yes. The card supports multiple 8K formats, including up to 8K 60p. Uncompressed recording is required for certain high-frame-rate 8K modes.
Does the DeckLink 8K Pro G2 support HDMI 2.1?
Yes. It includes one HDMI 2.1 input and one HDMI 2.1 output, with support for SD, HD, UHD, and 4K video standards.
Which operating systems are compatible with the DeckLink 8K Pro G2?
The card is compatible with macOS, Windows, and Linux and uses an 8-lane PCI Express Gen 3 interface compatible with 8- and 16-lane PCIe slots.
Specs
xKey Specs
| Product Type | PCIe Capture and Playback Card |
|---|---|
| Maximum Resolution | 8K |
| SDI Video Inputs | 4 x Bidirectional 12G-SDI |
| SDI Video Outputs | 4 x Bidirectional 12G-SDI |
| HDMI Input | 1 x HDMI 2.1 |
| HDMI Output | 1 x HDMI 2.1 |
| SDI Audio | 16 Channels in SD/HD/2K; 64 Channels in 4K/8K |
| HDMI Audio | 8 Channels via TMDS; 32 Channels via FRL |
| Computer Interface | PCI Express 8-Lane Generation 3 |
| Operating Systems | macOS, Windows, Linux |
Video Standards
| Supported Formats | SD, HD, Ultra HD, 4K, 8K |
|---|---|
| 8K Video | 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50*, 4320p59.94*, 4320p60* |
| 8K DCI | 8Kp23.98, 8Kp24, 8Kp25, 8Kp29.97, 8Kp30, 8Kp47.95, 8Kp48, 8Kp50*, 8Kp59.94*, 8Kp60* |
| 4K DCI | Up to 4K DCI 120p* |
| Ultra HD | Up to 2160p120* |
| HD | Up to 1080p120 |
| Maximum Frame Rate | Up to 120 fps in HD and 4K; up to 60 fps in 8K |
| *Uncompressed | Required for selected high-frame-rate modes |
SDI
| SDI Connections | 4 x Bidirectional 12G-SDI |
|---|---|
| SDI Standards | SD/HD/2K/4K/8K, Single Link, Dual Link and Quad Link 4:2:2/4:4:4 |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Color Precision | 8, 10, 12-bit RGB 4:4:4 up to 8Kp30 DCI; 8, 10-bit YUV 4:2:2 in all modes |
| Color Space | Rec. 601, Rec. 709, Rec. 2020 |
| SDI Audio | 16 Channels in SD/HD/2K; 64 Channels in 4K/8K |
| 3D Processing | Left Eye/Right Eye Dual Stream Capture and Playback |
HDMI
| HDMI Standard | HDMI 2.1 |
|---|---|
| HDMI Video Sampling | 4:2:2, 4:4:4 and 4:2:0* |
| HDMI Color Precision | 8, 10 and 12-bit* |
| HDMI Color Space | Rec. 601, Rec. 709, Rec. 2020 |
| HDR Support | Dolby Vision up to Ultra HD and 4K DCI 60p, HDR Static Metadata, HLG and PQ |
| HDMI Audio | 8 Channels via TMDS; 32 Channels via FRL |
| HDMI Audio Sampling | 48 kHz, 24-bit |
Processing
| Colorspace Conversion | Hardware-Based Real-Time on Output |
|---|---|
| 3D Processing | Left Eye/Right Eye Dual Stream Capture and Playback |
| Real-Time Effects | DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, Avid Media Composer |
| Multi-Channel Capture | Up to 4 Video Streams Using DeckLink SDK |
Synchronization & Control
| Sync Input | Tri-Sync or Black Burst |
|---|---|
| Remote Control | 1 x RS-422 Output |
Computer Interface
| Interface | PCI Express 8-Lane Generation 3 |
|---|---|
| PCIe Compatibility | Compatible with 8-Lane and 16-Lane PCI Express Slots |
| Installation | Requires 2 PCI Slots and Connection to Computer Power Supply |
Software Compatibility
| Supported Applications | DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, OBS Studio, vMix, Avid Pro Tools, Autodesk Flame, Nuke and other professional applications |
|---|---|
| SDK | DeckLink SDK |
Power & Environmental
| Power Consumption | 30 W |
|---|---|
| Operating Temperature | 5° to 50°C / 41° to 122°F |
| Storage Temperature | -20° to 60°C / -4° to 140°F |
| Relative Humidity | 0% to 90% Non-Condensing |
