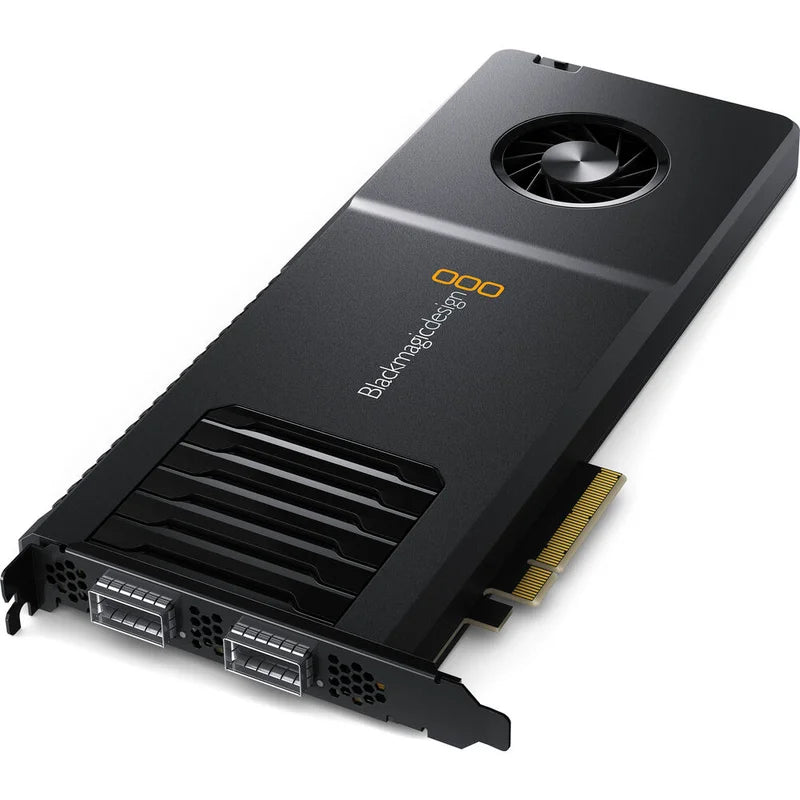

Blackmagic Design DeckLink IP 100G
SKU: BDLKIPHIP/100G
Key Features
- PCIe IP Video Capture & Playback Card
- Up to 8 Simultaneous UHD Video Channels
- Dual Redundant 100G Ethernet Ports
- GPU Direct RDMA Support Reduces Latency
- PCI Express Gen 4 Interface with 8 Lanes
- Ideal for 2110 IP Broadcast Systems
- Universal Video Software Compatibility
- Compatible with macOS, Windows & Linux
- Media Express Software Included
- Built-In Cooling Fan
- 5,943.00 AED
- 5,943.00 AED
- Unit price
- per
Description
xThe Blackmagic Design DeckLink IP 100G is a professional PCIe capture and playback card designed for high-performance SMPTE 2110 IP broadcast systems. It supports up to eight simultaneous Ultra HD video channels through dual 100G QSFP28 Ethernet connections, providing full network redundancy for demanding broadcast and production environments.
With support for SD, HD, Ultra HD, and DCI 4K formats, the DeckLink IP 100G can handle video up to 2160p60 according to Blackmagic Design's official technical specifications. Systec also highlights support for higher frame-rate workflows up to DCI 4K120. The card supports 8-, 10-, and 12-bit RGB 4:4:4 as well as 8- and 10-bit YUV 4:2:2 workflows.
Dual 100G Ethernet ports provide redundant connectivity, while GPU Direct RDMA enables direct memory transfers to GPUs for low-latency workflows such as real-time graphics, AI processing, and live compositing. The card also supports SMPTE 2022-7 redundancy, PTP synchronization, and NMOS IS-04 and IS-05 for professional IP broadcast environments.
The DeckLink IP 100G works with major professional applications including DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, and Avid Media Composer, and is compatible with macOS, Windows, and Linux. For more professional video capture solutions, explore our Capture Cards collection.
FAQs
What is the Blackmagic Design DeckLink IP 100G used for?
It is designed for high-performance video capture and playback in professional SMPTE 2110 IP broadcast systems, including broadcast servers, live production, virtual production, and post-production workflows.
How many video channels does the DeckLink IP 100G support?
It supports up to 8 simultaneous Ultra HD video channels for capture and playback on Windows and Linux. On macOS, up to 4 channels of Ultra HD p60 capture and playback are supported.
What type of network connection does it use?

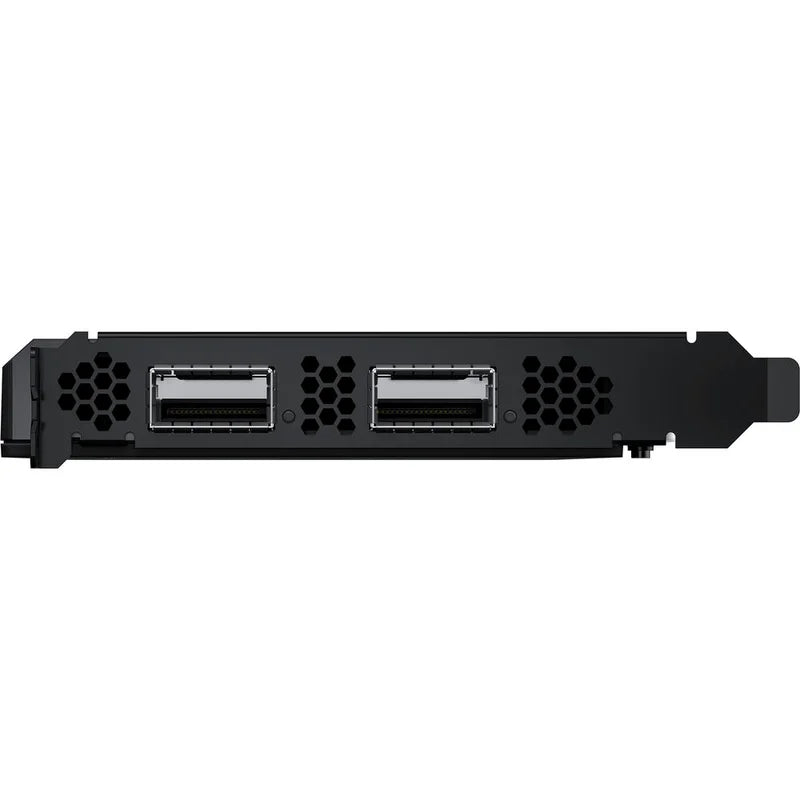

The card features two 100Gb/s QSFP28 optical Ethernet ports, providing redundant 100G network connectivity.
Does the DeckLink IP 100G support 4K video?
Yes. It supports SD, HD, Ultra HD, and DCI 4K video standards. Official Blackmagic specifications list support up to 2160p60.
What operating systems are supported?
The DeckLink IP 100G supports macOS, Windows, and Linux.
Specs
xSpecifications
| Video Channels | Up to 8 simultaneous Ultra HD channels |
|---|---|
| Maximum Video Standard | 2160p60 |
| Ethernet Ports | 2 x 100Gb/s QSFP28 |
| Computer Interface | PCI Express 8-lane Generation 4 |
| PCIe Compatibility | Compatible with 8-lane and 16-lane PCI Express slots |
| Power Connector | 6-pin 2x3 auxiliary power connector |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p, 1080i and 1080p |
| Ultra HD Standards | 2160p |
| DCI Standards | DCI 2K and DCI 4K |
| Color Precision | 8, 10 and 12-bit RGB 4:4:4; 8 and 10-bit YUV 4:2:2 |
| Color Space | REC 601, REC 709, REC 2020 |
| HDR Metadata | HLG and PQ static HDR metadata |
| Video Codec Support | Apple ProRes, DNxHD, DNxHR, DPX and uncompressed formats |
| IP Video Standard | SMPTE 2110-20 |
| Traffic Shaping | SMPTE 2110-21 |
| Audio Standard | SMPTE 2110-30, PCM Audio Conformance Level C |
| Ancillary Data | SMPTE 2110-40 |
| Stream Redundancy | SMPTE 2022-7, Receiver Class A |
| Synchronization | IEEE 1588-2008 PTP v2, ST 2059-1 and ST 2059-2 |
| NMOS Discovery | NMOS IS-04 v1.3.2 |
| NMOS Connection Management | NMOS IS-05 v1.1.2 |
| NMOS Grouping | NMOS BCP-002-01 |
| NMOS Receiver Capabilities | NMOS BCP-004-01 |
| Color Space Conversion | Hardware-based real-time |
| GPU Direct RDMA | Supported |
| Power Consumption | 50W |
| Operating Temperature | 5°C to 50°C / 41°F to 122°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Relative Humidity | 0% to 90% non-condensing |
| Operating Systems | macOS, Windows and Linux |
| Mac Ultra HD Support | Up to 4 channels at Ultra HD p60 |
| Windows/Linux Ultra HD Support | Up to 8 channels at Ultra HD p60 |
| Warranty | 3-Year Limited Manufacturer's Warranty |
