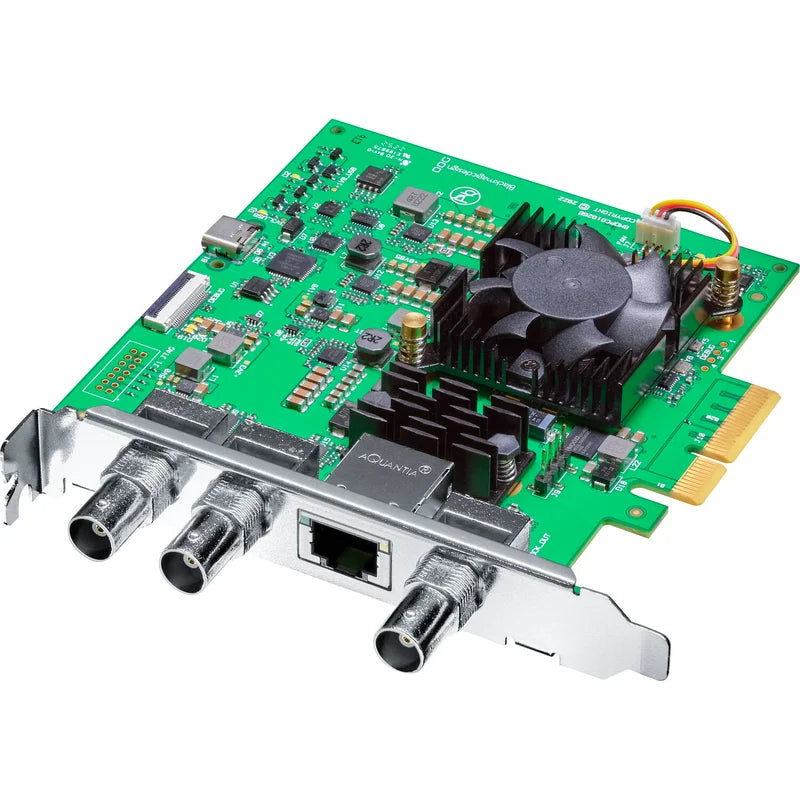

Blackmagic Design DeckLink IP HD 3G-SDI
SKU: BDLKIPFIP/SDI/HD
Key Features
- PCIe Playback & Monitoring Card
- Ideal for 2110 IP Broadcast Systems
- 10-Bit 1080p60 Uncompressed Video
- 10G Ethernet Port & 2 x 3G-SDI Ports
- All Popular Video Software Supported
- Compatible with Mac, Windows, and Linux
- NMOS Protocol Support
- Media Express Software Included
- 1,579.00 AED
- 1,579.00 AED
- Unit price
- per
Dimensions: 19.5 x 13.5 x 3 cm
Weight: 0.3 kg
Description
xThe Blackmagic Design DeckLink IP HD 3G-SDI is a professional PCIe capture and playback card designed for modern SMPTE 2110 IP broadcast systems. It provides two input and two output channels over a single 10G Ethernet connection, along with two bidirectional 3G-SDI ports for flexible SDI connectivity. It supports 10-bit uncompressed video up to 1080p60.
The card supports popular professional formats and codecs including Apple ProRes, DNxHD, DNxHR, and 10-bit uncompressed video. It also works with major production applications such as DaVinci Resolve, Adobe Premiere Pro, Final Cut Pro, and Avid Media Composer, making it suitable for broadcast, live production, streaming, post-production, and media workflows.
With a high-speed PCIe 4-lane Gen 2 interface, PTP synchronization, NMOS IS-04 and IS-05 support, and a built-in video firewall, the DeckLink IP HD 3G-SDI provides reliable connectivity between traditional SDI equipment and IP-based broadcast infrastructure.
For more professional video capture solutions, explore our Capture Cards collection.
FAQs
What is the Blackmagic Design DeckLink IP HD 3G-SDI used for?
It is designed for professional video capture and playback in SMPTE 2110 IP broadcast systems, while also providing connectivity with 3G-SDI equipment.
How many SDI ports does the DeckLink IP HD 3G-SDI have?
It has two bidirectional 3G-SDI ports, which can be independently configured as inputs or outputs.
What is the maximum video resolution supported?
The card supports SD and HD video formats up to 1080p60, including 720p, 1080i, and 1080p standards.
Does it support SMPTE 2110?
Yes. The DeckLink IP HD 3G-SDI conforms to SMPTE ST 2110 for transporting video, audio, and ancillary data over managed IP networks.
Which operating systems are supported?
It supports Mac, Windows, and Linux operating systems.
Specs
xSpecifications
| Product | Blackmagic Design DeckLink IP HD 3G-SDI |
|---|---|
| Model | DeckLink IP/SDI HD |
| IP Video Inputs | 2 channels |
| IP Video Outputs | 2 channels |
| SDI Ports | 2 x bidirectional 12-bit SD/HD 3G-SDI |
| SDI Configuration | Independently configurable as input or output |
| Ethernet Port | 1 x 10G BASE-T |
| Maximum Video Resolution | 1080p60 |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p, 1080i and 1080p up to 60 fps |
| SDI Audio | 16 channels embedded in SD and HD |
| IP Audio | 16 channels per video channel |
| Video Sampling | 4:2:2 and 4:4:4 |
| Color Precision | 8, 10 and 12-bit RGB 4:4:4; 8 and 10-bit YUV 4:2:2 |
| Color Space | REC 601, REC 709, REC 2020 |
| Audio Sampling | 48 kHz, 24-bit |
| IP Video Standard | SMPTE 2110 |
| Traffic Shaping | SMPTE 2110-21 |
| Audio Standard | SMPTE 2110-30 |
| Ancillary Data | SMPTE 2110-40 |
| Synchronization | IEEE 1588-2008 PTP v2, ST 2059-1, ST 2059-2 |
| NMOS | IS-04, IS-05, BCP-002-01, BCP-004-01 |
| Computer Interface | PCI Express 4-lane Gen 2 |
| Installation | PCI Express full height |
| Power Consumption | 10W |
| Operating Temperature | 5°C to 40°C / 41°F to 104°F |
| Storage Temperature | -20°C to 45°C / -4°F to 113°F |
| Relative Humidity | 0% to 90% non-condensing |
| Operating Systems | Mac, Windows and Linux |
| Dimensions | 19.5 x 13.5 x 3 cm |
| Weight | 0.3 kg |
| Warranty | 3-Year Limited Manufacturer's Warranty |
| SKU | BDLKIPFIP/SDI/HD |
