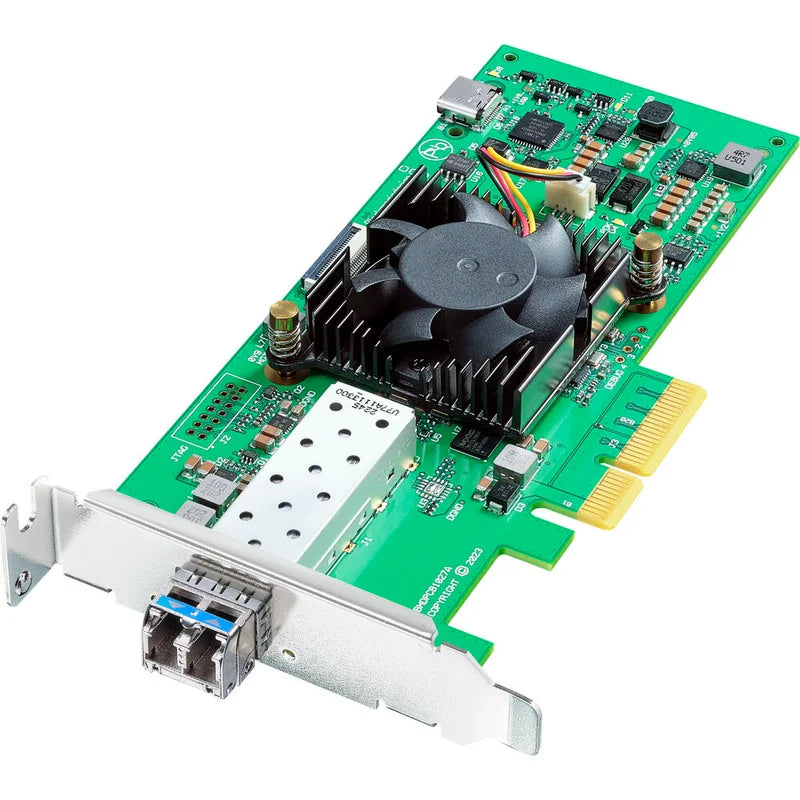

Blackmagic Design DeckLink IP HD Optical
SKU: BDLKIPDIP/OPT/HD
Key Features
- PCIe Playback & Monitoring Card
- Ideal for 2110 IP Broadcast Systems
- 10-Bit 1080p60 Uncompressed Video
- 10G Optical Fiber SFP+ Port
- All Popular Video Software Supported
- Compatible with Mac, Windows, and Linux
- NMOS Protocol Support
- Media Express Software Included
- 1,490.00 AED
- 1,490.00 AED
- Unit price
- per
Dimensions: 20 x 14 x 3 cm
Weight: 0.3 kg
Description
xThe Blackmagic Design DeckLink IP HD Optical is a professional PCIe capture and playback card designed for SMPTE 2110 IP broadcast systems. It provides two channels of video capture and two channels of video playback through a 10G optical fiber SFP+ connection, supporting video up to 1080p60.
With support for 10-bit uncompressed video, embedded audio, and professional codecs including Apple ProRes and DNxHD, the DeckLink IP HD Optical is ideal for broadcast production, post-production, live streaming, and professional media workflows.
The card supports SD and HD video formats, including 720p, 1080i, and 1080p up to 60 fps. It also supports NMOS IS-04 and IS-05 for IP video device discovery and connection management, making it a suitable solution for modern IP-based broadcast environments.
For more professional video capture solutions, explore our Capture Cards collection.
FAQs
What is the Blackmagic Design DeckLink IP HD Optical used for?
It is designed for professional video capture and playback in SMPTE 2110 IP broadcast systems, including broadcast production, streaming, and post-production workflows.
How many video channels does the DeckLink IP HD Optical support?
It provides 2 video input channels and 2 video output channels, supporting video up to 1080p60.
What connection does the DeckLink IP HD Optical use?
It uses a 10GBASE-LR optical fiber SFP+ connection for IP video connectivity.
Does it support 10-bit video?
Yes, it supports 10-bit uncompressed video for professional broadcast and production workflows.
Which operating systems are supported?
The DeckLink IP HD Optical supports Mac, Windows, and Linux operating systems.
Specs
xSpecifications
| Product | Blackmagic Design DeckLink IP HD Optical |
|---|---|
| Video Inputs | 2 channels |
| Video Outputs | 2 channels |
| Maximum Video Resolution | 1080p60 |
| Network Connection | 10GBASE-LR SFP+ |
| Computer Interface | PCI Express 4-lane Gen 2 |
| IP Video Standard | SMPTE 2110 |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p, 1080i and 1080p up to 60 fps |
| Color Precision | 8, 10 and 12-bit RGB 4:4:4 up to 1080p30; 8 and 10-bit YUV 4:2:2 |
| Color Space | REC 601, REC 709, REC 2020 |
| Audio Sampling | 48 kHz, 24-bit |
| Audio Standard | SMPTE 2110-30 |
| Ancillary Data | SMPTE 2110-40 |
| Traffic Shaping | SMPTE 2110-21 |
| Synchronization | IEEE 1588-2008 PTP v2, ST 2059-1 and ST 2059-2 |
| NMOS | IS-04, IS-05, BCP-002-01 and BCP-004-01 |
| Power Consumption | 10W |
| Installation | PCI Express low profile |
| Operating Temperature | 5°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 45°C / -4°F to 113°F |
| Relative Humidity | 0% to 90% non-condensing |
| Operating Systems | Mac, Windows and Linux |
| Dimensions | 20 x 14 x 3 cm |
| Weight | 0.3 kg |
