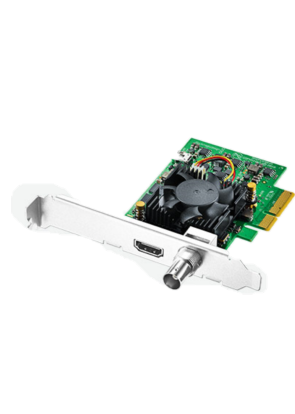

Blackmagic Design DeckLink Mini Monitor 4K
SKU: BDLKMINIMON4K
Key Features
- SD/HD/3G/6G-SDI output
- HDMI 2.0a output
- PCI Express 2.0 x4 interface
- DCI 4K, UHD 4K, HD, and SD video support
- 8/10-bit 4:2:2 YUV and 8/10/12-bit 4:4:4 RGB support
- Hardware color space conversion
- Software HD down-conversion
- 16-channel embedded SDI audio output
- 8-channel embedded HDMI audio output
- Compatible with Windows, macOS, and Linux
- 828.00 AED
- 828.00 AED
- Unit price
- per
Dimensions: 14 x 14 x 3 cm
Weight: 0.2 kg
Description
xThe Blackmagic Design DeckLink Mini Monitor 4K is a low-profile PCIe playback card designed for professional video monitoring, post-production, broadcast, and custom playback systems. It features 6G-SDI and HDMI 2.0a outputs for monitoring SD, HD, Ultra HD, and DCI 4K video from a compatible computer.
The card supports video formats up to 2160p30 and automatically detects and switches between connected video formats. HDMI supports Deep Color and HDR, including HLG and PQ, while SDI provides 10-bit video output for professional monitoring workflows.
The DeckLink Mini Monitor 4K provides 16 channels of embedded SDI audio and 8 channels of embedded HDMI audio. It also features hardware real-time color space conversion, software HD-to-SD down-conversion, and HD cross conversion during playback.
Its PCI Express 4-lane Generation 2 interface is compatible with 4-, 8-, and 16-lane PCIe slots. The card works with macOS, Windows, and Linux and can be used with professional applications including DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, and Avid Media Composer.
For more professional video playback equipment, explore our Blackmagic Design collection and Video Capture & Playback range for additional broadcast and post-production solutions.
Frequently Asked Questions
What is the Blackmagic Design DeckLink Mini Monitor 4K used for?
The DeckLink Mini Monitor 4K is a professional PCIe playback card designed for video monitoring, broadcast, post-production, and custom video playback systems.
What video resolutions does the DeckLink Mini Monitor 4K support?
It supports SD, HD, 2K, Ultra HD, and DCI 4K formats, with Ultra HD playback up to 2160p30.
Does the DeckLink Mini Monitor 4K support HDR?
Yes. Its HDMI 2.0a output supports HDR static metadata, HLG, and PQ transfer characteristics, along with Deep Color.
How many audio channels does the DeckLink Mini Monitor 4K support?
It supports 16 channels of embedded SDI audio and 8 channels of embedded HDMI audio.
What computers are compatible with the DeckLink Mini Monitor 4K?
The card is compatible with macOS, Windows, and Linux systems with a suitable PCI Express slot.
Specs
x| Product Name | Blackmagic Design DeckLink Mini Monitor 4K |
|---|---|
| SDI Video Output | 1 x 10-bit SD/HD/Ultra HD switchable |
| SDI Audio Output | 16 channels embedded in SD, HD, and Ultra HD |
| HDMI Video Output | 1 x HDMI 2.0a |
| HDMI Audio Output | 8 channels embedded in SD, HD, and Ultra HD |
| Computer Interface | PCI Express 4-lane Generation 2 |
| PCIe Compatibility | 4, 8, and 16-lane PCI Express slots |
| Maximum Ultra HD Resolution | 2160p30 |
| DCI 4K Support | 4096 x 2160 at 23.98p, 24p, and 25p |
| 2K DCI Support | 2048 x 1080 at 23.98p, 24p, and 25p |
| SDI Video Sampling | 4:4:4 and 4:2:2 |
| SDI Color Precision | 8, 10, and 12-bit RGB 4:4:4; 8 and 10-bit YUV 4:2:2 |
| HDMI Video Sampling | 4:4:4, 4:2:2, and 4:2:0 |
| HDMI Color Precision | Up to 12-bit Deep Color |
| HDR Support | HDR static metadata, HLG, and PQ |
| Color Space | REC 601, REC 709, REC 2020 |
| Audio Sampling | 48 kHz, 24-bit |
| HD-to-SD Conversion | Software-based during video playback |
| HD Cross Conversion | Software-based 720p to 1080HD conversion |
| Color Space Conversion | Hardware-based real-time conversion |
| Operating Systems | macOS, Windows, and Linux |
| Power Consumption | 10 W |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Operating Humidity | 0% to 90%, non-condensing |
