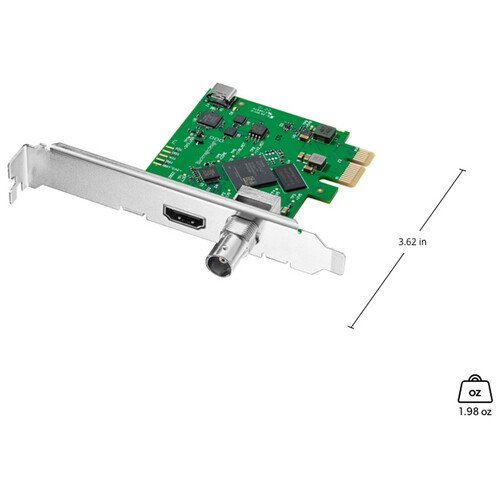

Blackmagic Design DeckLink Mini Monitor HD
SKU: BDLKMINIMON3G
Key Features
- Broadcast-Quality Playback & Monitoring
- 1-Lane PCIe Slot Card (for 1-16 Lanes)
- SDI and HDMI Outputs
- Up to 1080p60 Resolution Support in HDMI
- Supports up to 2K DCI over SDI
- 8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4
- REC 601/709 Color Space Support
- Mac, Windows, and Linux Compatible
- 570.00 AED
- 570.00 AED
- Unit price
- per
Dimensions: 13.46 x 13.2 x 3.04 cm
Weight: 0.133 kg
Description
xThe Blackmagic Design DeckLink Mini Monitor HD is a compact PCIe playback card designed for professional video monitoring and broadcast workflows. It provides both SDI and HDMI outputs, allowing computers to connect directly to professional SDI monitors, HDMI displays, and other video equipment.
The card supports SD and HD video formats up to 1080p60, with 10-bit YUV video processing for broadcast-quality playback. It also supports embedded audio through both SDI and HDMI outputs, making it suitable for editing, grading, broadcast, and post-production monitoring.
DeckLink Mini Monitor HD uses a PCI Express interface and is compatible with major professional software, including DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, and Avid Media Composer. It also includes hardware-based real-time format conversion for supported HD and SD workflows.
For more professional capture, playback, and video conversion equipment, explore Systec International’s Signal Processing, Converters & Distribution collection.
FAQs
What is the DeckLink Mini Monitor HD used for?
It is designed for professional video playback and monitoring from a computer to SDI and HDMI displays.
Does it support 1080p60?
Yes. The card supports HD video formats up to 1080p60.
What outputs does the DeckLink Mini Monitor HD provide?
It provides one 10-bit SDI output and one HDMI output for professional monitoring.
Does it support embedded audio?
Yes. Embedded audio is supported through both the SDI and HDMI outputs.
Which software works with DeckLink Mini Monitor HD?
It works with professional applications including DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, and Avid Media Composer.
Specs
xSpecifications
| Product Type | PCIe video playback and monitoring card |
|---|---|
| SDI Output | 1 x 10-bit SD/HD SDI |
| HDMI Output | 1 x HDMI |
| SDI Data Rates | 270 Mb/s, 1.5G, 3G |
| HD Video Standards | 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60 |
| SD Video Standards | 525i59.94 NTSC and 625i50 PAL |
| SDI Video Sampling | YUV 4:2:2 |
| SDI Color Precision | 10-bit |
| SDI Audio | 2 channels embedded in SD and HD |
| HDMI Audio | 8 channels embedded in SD and HD |
| HDMI Video Sampling | YUV 4:2:2 |
| Computer Interface | PCI Express |
| Format Conversion | Hardware-based real-time HD down-conversion to SD |
| Supported Software | DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, Avid Media Composer, and compatible applications |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
