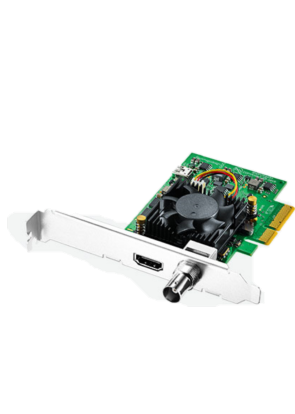

Blackmagic Design DeckLink Mini Recorder 4K
SKU: BDLKMINIREC4K
Key Features
- SD/HD/3G/6G-SDI input
- HDMI input
- PCI Express 2.0 x4 interface
- DCI 4K, UHD, HD, and SD video support
- 10-bit processing
- Hardware color space conversion
- Software HD down-conversion
- Compatible with macOS, Windows, and Linux
- 843.00 AED
- 843.00 AED
- Unit price
- per
Dimensions: 14 x 14 x 3 cm
Weight: 0.2 kg
Description
xThe Blackmagic Design DeckLink Mini Recorder 4K is a professional low-profile PCIe capture card designed for broadcast, live production, post-production, and custom video capture workflows. It provides 6G-SDI and HDMI 2.0a inputs for capturing SD, HD, Ultra HD, and DCI 4K video directly to a compatible computer.
The card supports video formats up to 2160p30 and automatically detects the connected SDI or HDMI video format. It provides 10-bit SDI input and supports HDMI Deep Color and HDR, including HLG and PQ transfer characteristics.
The DeckLink Mini Recorder 4K supports 16 channels of embedded SDI audio and 8 channels of embedded HDMI audio. It also provides real-time hardware color space conversion and software-based HD-to-SD and SD-to-HD conversion during capture.
Its PCI Express 4-lane Gen 2 interface works with 4-, 8-, and 16-lane PCIe slots, while the low-profile design makes it suitable for compact workstations, mobile capture systems, and broadcast environments. The card is compatible with macOS, Windows, and Linux.
For more professional video capture equipment, explore our Blackmagic Design collection and Video Capture & Playback range for additional production solutions.
Frequently Asked Questions
What is the Blackmagic Design DeckLink Mini Recorder 4K used for?
The DeckLink Mini Recorder 4K is a professional PCIe capture card designed for broadcast, live production, post-production, and video capture workflows.
What is the maximum resolution supported by the DeckLink Mini Recorder 4K?
It supports SD, HD, 2K, and 4K video formats up to 2160p30.
Does the DeckLink Mini Recorder 4K support HDMI?
Yes. It features an HDMI 2.0a input with support for Deep Color and HDR.
How many audio channels does the DeckLink Mini Recorder 4K support?
It supports up to 16 channels of embedded SDI audio and 8 channels of embedded HDMI audio.
What operating systems are compatible with the DeckLink Mini Recorder 4K?
The card is compatible with macOS, Windows, and Linux systems.
Specs
x| Product Name | Blackmagic Design DeckLink Mini Recorder 4K |
|---|---|
| SDI Video Input | 1 x 10-bit SD/HD/Ultra HD switchable |
| SDI Audio Input | 16 channels embedded in SD, HD, and Ultra HD |
| HDMI Video Input | 1 x HDMI 2.0a |
| HDMI Audio Input | 8 channels embedded in SD, HD, and Ultra HD |
| Computer Interface | PCI Express 4-lane Generation 2 |
| PCIe Compatibility | 4, 8, and 16-lane PCI Express slots |
| Maximum Ultra HD Resolution | 2160p30 |
| 4K DCI Support | 4096 x 2160 at 23.98p, 24p, and 25p via SDI |
| SDI Video Sampling | 4:4:4 and 4:2:2 |
| SDI Color Precision | 8, 10, and 12-bit RGB 4:4:4; 8 and 10-bit YUV 4:2:2 |
| HDMI Video Sampling | 4:4:4, 4:2:2, and 4:2:0 |
| HDMI Color Precision | Up to 12-bit Deep Color |
| HDR Support | HDR static metadata, HLG, and PQ |
| Color Space | REC 601, REC 709, REC 2020 |
| Audio Sampling | 48 kHz, 24-bit |
| Processing | Hardware real-time color space conversion |
| HD-to-SD Conversion | Software-based during video capture |
| SD-to-HD Conversion | Software-based during video capture |
| Supported Operating Systems | macOS, Windows, and Linux |
| Power Consumption | 8 W |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
