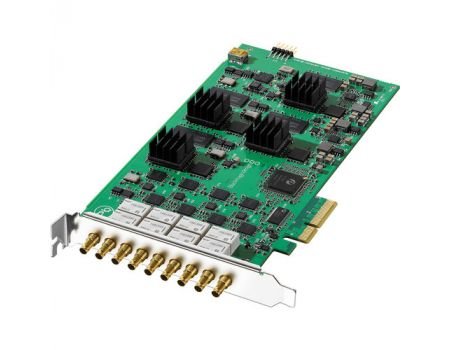

Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback Card
SKU: BDLKDVQD2
Key Features
- 8 x Bidirectional SD/HD/3G-SDI
- 8-Lane PCIe Interface
- Resolutions up to 1080p60
- Inputs/Outputs Independently Switchable
- Supports Uncompressed RGB 4:4:4 Signals
- Supports 16 Channels of Embedded Audio
- Reference Input
- Up/Down/Cross Conversions
- Media Express Application Included
- macOS, Windows, and Linux Compatible
- 3,956.00 AED
- 3,956.00 AED
- Unit price
- per
Dimensions: 18 x 14 x 3 cm
Weight: 0.3 kg
Description
xThe Blackmagic Design DeckLink Quad 2 is a professional PCIe capture and playback card designed for broadcast, live production, post-production, streaming, and multi-channel video workflows. It provides eight independent 3G-SDI channels that can be configured for capture or playback, allowing multiple video streams to be handled from a single card.
The DeckLink Quad 2 features eight bidirectional 12-bit 3G-SDI connections, with each channel independently configurable as an input or output. It supports SD and HD video up to 1080p60, making it suitable for multi-camera capture, broadcast servers, live switching, and professional video playback applications.
The card supports 8, 10, and 12-bit RGB 4:4:4 video as well as 8 and 10-bit YUV 4:2:2 formats. It also supports up to 16 channels of embedded SDI audio per input or output, providing professional audio and video connectivity for broadcast and production environments.
The DeckLink Quad 2 uses an 8-lane PCI Express Gen 2 interface and is compatible with 8-lane and 16-lane PCI Express slots. Built-in hardware processing provides real-time color space conversion, HD down-conversion, SD up-conversion, and cross-conversion between supported HD formats.
The card includes a Tri-Sync or Black Burst reference input for synchronization with professional broadcast systems. It also supports popular codecs including Apple ProRes, DNxHD, DNxHR, and uncompressed video formats, while Blackmagic Media Express and Desktop Video software are included for capture, playback, and device configuration.
The system is a strong choice for broadcasters, production studios, streaming teams, and post-production professionals who need multiple independent SDI capture and playback channels from a single PCIe card.
For more professional video capture and playback equipment, explore our Blackmagic Design collection and browse our Video Capture & Playback range for additional broadcast and production solutions.
Frequently Asked Questions
What is the Blackmagic Design DeckLink Quad 2 used for?
The Blackmagic Design DeckLink Quad 2 is a professional PCIe video capture and playback card designed for broadcast, live production, streaming, post-production, and multi-channel video workflows.
How many SDI channels does the DeckLink Quad 2 have?
The DeckLink Quad 2 features eight independent 3G-SDI channels, with each connection independently configurable as an input or output.
What is the maximum resolution supported by the DeckLink Quad 2?
The DeckLink Quad 2 supports SD and HD video formats up to 1080p60.
Does the DeckLink Quad 2 support 12-bit video?
Yes. The card supports 12-bit SD and HD video, including RGB 4:4:4 formats in supported modes.
How many audio channels does the DeckLink Quad 2 support?
The DeckLink Quad 2 supports up to 16 channels of embedded SDI audio for both input and output.
What type of PCIe interface does the DeckLink Quad 2 use?
The card uses an 8-lane PCI Express Gen 2 interface and is compatible with 8-lane and 16-lane PCI Express slots.
Does the DeckLink Quad 2 support synchronization?
Yes. It includes a Tri-Sync or Black Burst reference input for synchronizing the card with professional broadcast and video production systems.
Specs
x| Host Connection | PCIe x8 (PCIe 2.0) |
| Shared Input/Output Connectors | 8 x BNC (3G-SDI) Male |
| Input Video Format | SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps NTSC 60 fps PAL 50 fps |
| Input Audio Format | Analog: 48 kHz / 24-Bit |
| Embedded Audio Input | SDI: 16-Channel |
| Output Video Format | SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps NTSC 60 fps PAL (768 x 576) 50 fps |
| Embedded Audio Output | SDI: 16-Channel |
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M ITU -R BT.601/BT.656 |
| Other I/O | 1 x BNC Blackburst, Reference, Tri-Level Sync Input |
| OS Compatibility | Windows 8.1.10 or Later macOS 10.14.15 or Later Linux |
| Power Consumption | 22 W |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
| Certifications | C-Tick, CE, FCC, as per Manufacturer |
| Dimensions | 6.3" / 16 cm |
| Weight | 4.59 oz / 130 g |
