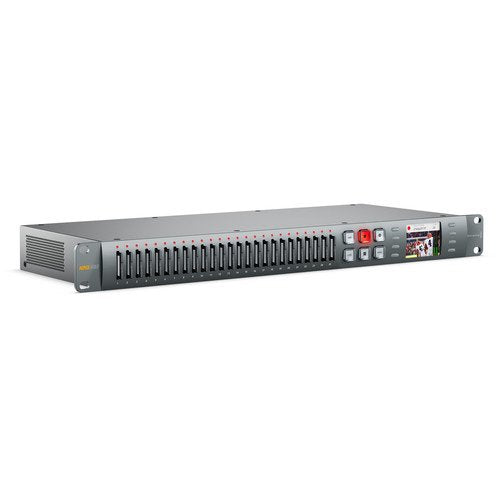

Blackmagic Design Duplicator 4K
SKU: HYPERD/VDUP25/12G
Key Features
- Record on up to 25 SD Cards
- Real-Time H.265 Encoding
- Scalable for Larger Projects
- SDI and Optical Video I/O
- Ethernet Control
- Single File Recording
- Simultaneous Card Formatting
- Blackmagic Duplicator Software
- 8,078.00 AED
- 8,078.00 AED
- Unit price
- per
Dimensions: 49.53 x 27.94 x 8.89 cm
Weight: 2.35 kg
Description
xThe Blackmagic Design Duplicator 4K is a professional SD card duplication and recording system designed for live events, broadcast production, and fast content delivery. It combines real-time H.265 encoding with multi-rate 12G-SDI connectivity, allowing SD, HD, and Ultra HD video to be recorded up to 2160p60.
With 25 built-in SD card slots, the Duplicator 4K can simultaneously record content to multiple cards, making it practical for events where finished recordings need to be distributed to customers immediately. It supports Class 10 SD cards, including UHS-I and UHS-II media.
The system supports H.264 and H.265 recording, with duplicate, sequential, and disk-overwrite recording modes. It also provides RS-422 control for connecting additional Duplicator units, Ethernet control, USB connectivity, and an optional SMPTE optical SDI module.
For more professional switchers, recorders, and live production equipment, explore the Systec Switchers & Controllers collection.
FAQs
How many SD cards can the Duplicator 4K record to?
It has 25 built-in SD card slots for simultaneous SD, HD, and Ultra HD recording.
Does the Duplicator 4K support 4K recording?
Yes. It supports Ultra HD formats up to 2160p60 through its multi-rate 12G-SDI input.
What recording codecs does it support?
It supports 8-bit H.264 and 10-bit H.265 recording at 4:2:0 with AAC audio.
Can multiple Duplicator units be connected?
Yes. RS-422 control allows multiple Duplicator units to be connected for extended recording and duplication workflows.
Does it support Ethernet control?
Yes. It includes 10/100/1000 Base-T Ethernet and supports the Blackmagic HyperDeck Ethernet Control Protocol.
Specs
xSpecifications
| Product Type | Professional 4K SD card duplicator and recorder |
|---|---|
| SDI Video Input | 1 x SDI |
| SDI Video Output | 1 x SDI loop output |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G |
| SDI Audio Input | 16-channel embedded audio |
| SDI Audio Output | 16-channel embedded audio |
| Optical SDI | Supports optional SMPTE optical module |
| Optical Output | 1 x 10-bit SD/HD/UHD auto-switching output |
| SD Card Slots | 25 |
| SD Card Support | Class 10 minimum, UHS-I and UHS-II |
| Record Codec | 8-bit H.264 or 10-bit H.265 at 4:2:0 with AAC audio |
| Media Format | ExFAT |
| Video Sampling | 4:2:2 |
| Audio Sampling | 48kHz, 24-bit uncompressed |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p, 1080p, 1080PsF, and 1080i formats up to 60 fps |
| Ultra HD Video Standards | 2160p23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 |
| SDI Compliance | SMPTE 259M, 292M, 296M, 425M |
| SDI Metadata | HD RP188 and closed captioning |
| Recording Modes | Duplicate, sequential, and disk overwrite |
| Built-in Control Panel | 6 transport and menu control buttons |
| Display | 2.2-inch color LCD, 320 × 240 |
| External Control | RS-422, SDI start/stop, timecode run, and Ethernet control |
| Computer Interface | 1 x USB 2.0 Mini-B |
| Ethernet | 10/100/1000 Base-T |
| Software | Blackmagic Duplicator software |
| Power Supply | Internal 110–240V AC |
| Rack Installation | 1RU |
| Operating Temperature | 5°C to 50°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 12-month limited manufacturer warranty |
