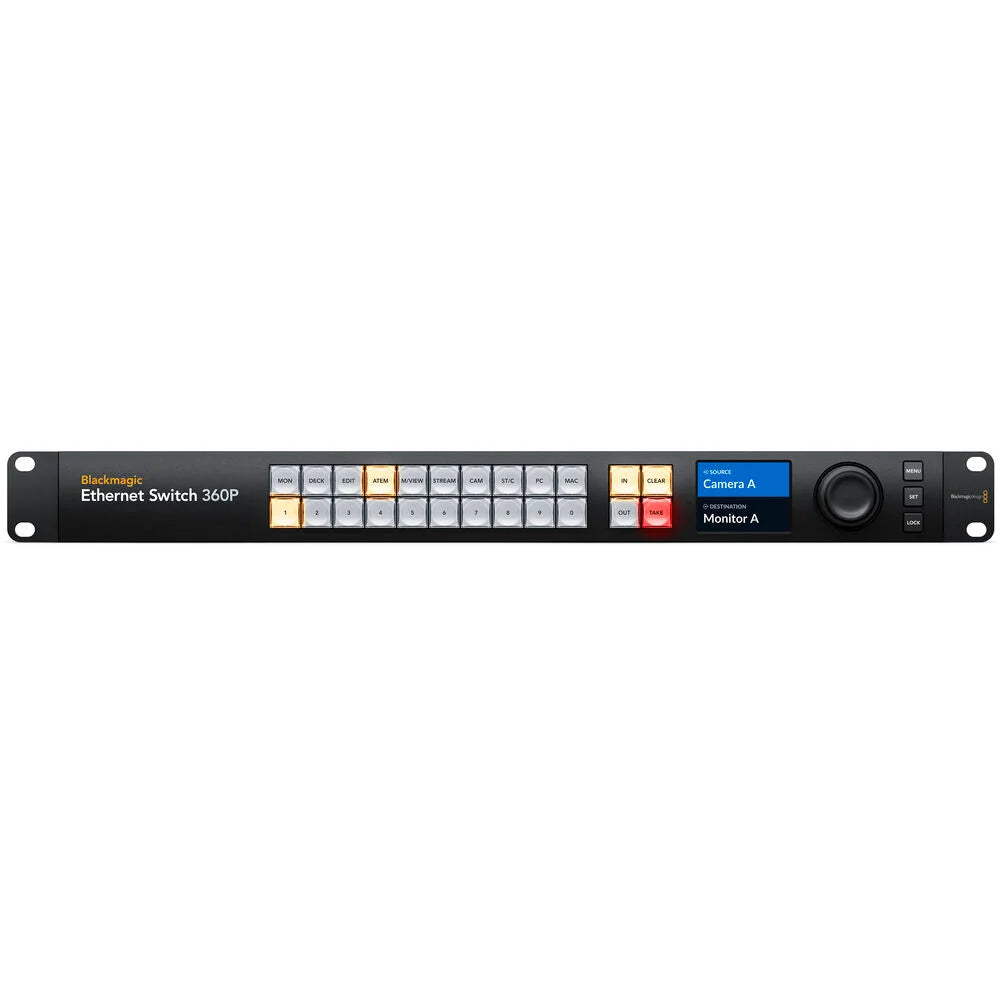

Blackmagic Design Ethernet Switch 360P
SKU: DWCSWA/MODC360P
Key Features
- Designed for SMPTE 2110 Video
- Video Router Controls on Front Panel
- Ethernet Switch with Ports on Back
- 16 x 10GbE and 2 x 100GbE RJ45 Ports
- For Complex Configurations, Multicasting
- Speed Graph on Monitor Out for Each Port
- Dynamic Labels for 2110 Connections

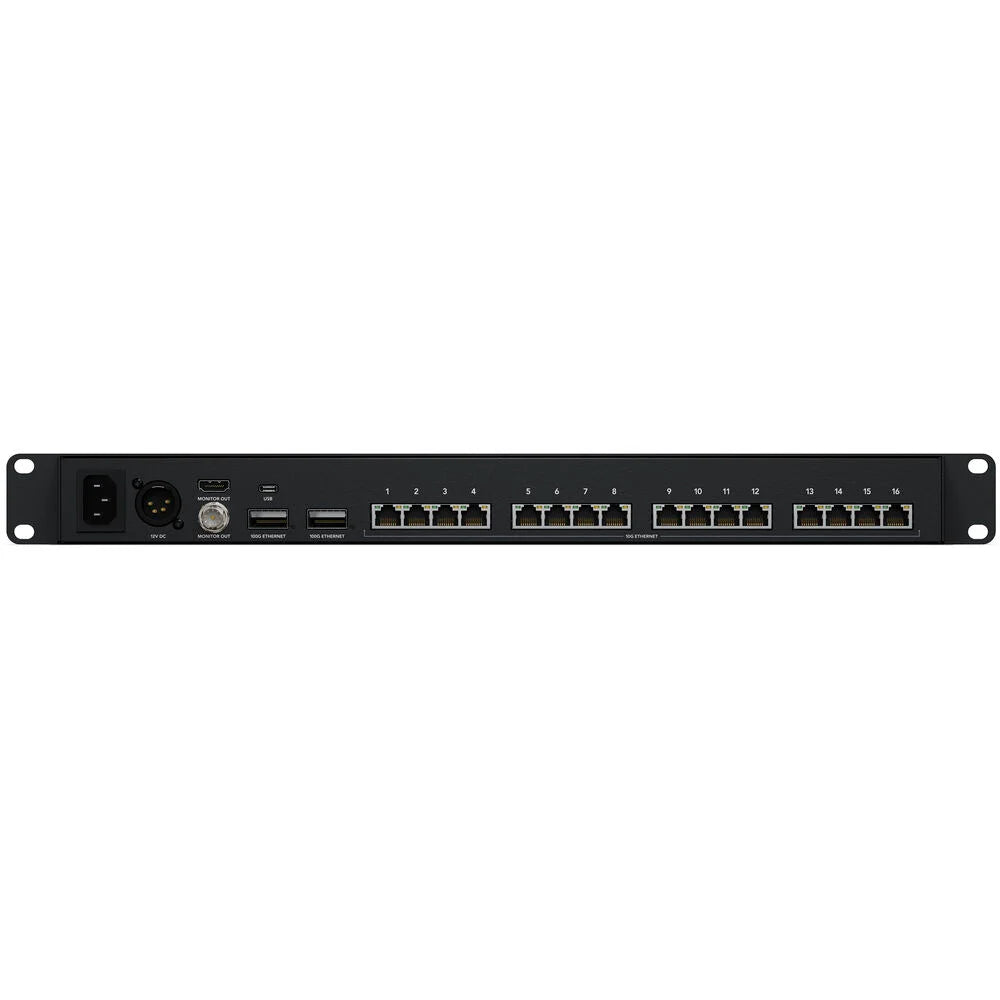

- Ports Located on Back, Easier Cabling
- Devices Display Alphabetically at Front
- For Fly Kits and Small Broadcast Trucks
- 11,736.00 AED
- 11,736.00 AED
- Unit price
- per
Dimensions: 49 x 24 x 5 cm
Weight: 3 kg
Description
xThe Blackmagic Ethernet Switch 360P is a high-performance, low-latency Ethernet switch built for professional film, television, and broadcast IP workflows. It provides 16 independent 10G Ethernet ports and two high-speed 100G QSFP28 connections for demanding network and SMPTE 2110 video applications.
Its built-in video router control panel makes 2110 IP multicasting easier to manage without complicated IT configuration. The front panel includes buttons, a search dial, and a 2.2-inch color display, while the Ethernet connections are positioned at the rear for cleaner and easier cable management.
The switch also provides HDMI and SDI monitor outputs for viewing network connections, device names, link speeds, and data activity. With NMOS support and PTP compliance, it is well suited for modern broadcast networks, fly-pack systems, compact broadcast trucks, ISO recording setups, and DaVinci Resolve workstations.
For more professional signal routing and distribution equipment, explore Systec's Signal Processing, Converters & Distribution collection.
FAQs
What is the Blackmagic Ethernet Switch 360P used for?
It is designed for high-performance Ethernet networking and SMPTE 2110 IP video workflows in broadcast and professional production environments.
How many 10G Ethernet ports does it have?
It has 16 independent 10Gb/s RJ-45 ports supporting 100/1000/10G BASE-T.
Does the Ethernet Switch 360P support 100G networking?
Yes. It has two 100Gb/s QSFP28 ports for high-speed network connections.
Does it support SMPTE 2110?
Yes. It supports SMPTE 2110 IP video workflows along with PTP and NMOS standards.
Can I monitor network activity?
Yes. HDMI and SDI monitor outputs can display connection information, device names, link speeds, and network activity
Specs
xSpecifications
| 10G Ethernet Ports | 16 x 10Gb/s RJ-45, supporting 100/1000/10G BASE-T |
|---|---|
| 100G Ethernet Ports | 2 x 100Gb/s QSFP28 |
| SDI Monitor Output | 1 |
| HDMI Monitor Output | 1 |
| Computer Interface | USB-C |
| Precision Time Protocol | IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2 |
| NMOS IS-04 | v1.3.2, peer-to-peer via mDNS/DNS-SD |
| NMOS IS-05 | v1.1.2 |
| NMOS BCP-002-01 | Natural Grouping |
| NMOS BCP-004-01 | Receiver Capabilities |
| SDI Monitor Standards | 1080p50, 1080p59.94, 1080p60 |
| HDMI Monitor Standards | 1080p50, 1080p59.94, 1080p60 |
| Front Panel Display | 2.2-inch color LCD |
| Control Panel | 24 buttons, 3 menu buttons and search dial |
| Power Supply | Internal 100–240V AC, 50/60Hz, IEC C14 |
| DC Power Input | 1 x 4-pin XLR, +12V DC |
| Power Usage | 100W |
| Rack Installation | 1 RU |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
