Blackmagic Design HyperDeck Extreme 4K HDR
SKU: HYPERD/RSTEX4KHDR
Key Features
- Large LCD with Touchscreen Deck Controls
- Physical Controls, Two CFast Card Slots
- 12G-SDI, HDMI, and Legacy Analog
- Fast USB Type-C Disk Port; 10G Ethernet
- PCIe Cache Card Slot
- H.265 Recording/Playback, ProRes Support
- Rec. 2020/709 Support, HDR Scopes
- SDI/HDMI Auto HDR Detection
- Multichannel SDI and Analog Audio
- Load and Save 3D LUTs
- 12,567.00 AED
- 12,567.00 AED
- Unit price
- per
Description

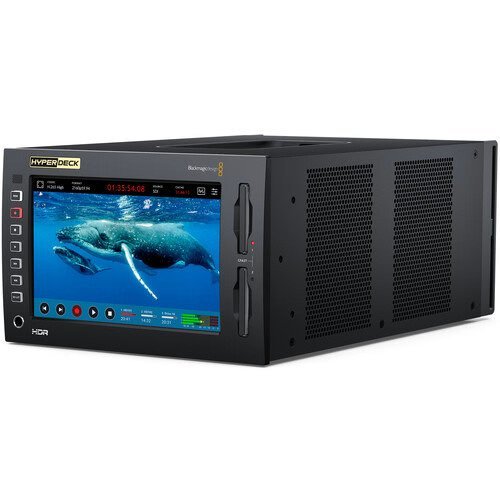

xThe Blackmagic Design HyperDeck Extreme 4K HDR is a professional broadcast recorder and playback deck designed for live production, broadcast, post-production, and high-resolution video workflows. It supports SD, HD, Ultra HD, and 4K DCI formats with professional SDI connectivity and advanced H.265 recording.
It features four 12G-SDI inputs, five SDI outputs, and HDMI 2.0 input and output connections. The built-in 7-inch HDR LCD provides a bright 2000-nit display for monitoring video, audio, timecode, scopes, and recording status during production.
The HyperDeck Extreme 4K HDR also includes 3D LUT support, broadcast-quality scopes, 64-channel embedded SDI audio, XLR and RCA audio connections, RS-422 deck control, 10Gb/s Ethernet, and USB-C external disk recording. Its internal AC power supply and 12V DC input make it suitable for both studio and mobile workflows.
For more professional recording and playback equipment, explore the Systec Video Recorders & Players collection.
FAQs
What video formats does the HyperDeck Extreme 4K HDR support?
It supports SD, HD, Ultra HD, and 4K DCI video formats with frame rates up to 60 fps.
Does it support HDR?
Yes. It features HDR recording and playback support along with a 7-inch 2000-nit HDR LCD and 3D LUT functionality.
What video connections does it have?
It provides four 12G-SDI inputs, five SDI outputs, one HDMI 2.0 input, and one HDMI 2.0 output.
Can it record to external USB storage?
Yes. The USB-C connection supports external disk recording for compatible USB storage devices.
Does it provide professional deck control?
Yes. It includes RS-422 input and output, SDI start/stop, timecode control, and Ethernet-based HyperDeck control.
Specs
xSpecifications
| Product Type | Professional 4K broadcast recorder and playback deck |
|---|---|
| SDI Video Inputs | 4 x 12G-SDI |
| SDI Video Outputs | 5 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G-SDI |
| HDMI | 1 x HDMI 2.0 input and 1 x HDMI 2.0 output |
| Video Standards | SD, HD, Ultra HD, and 4K DCI |
| Maximum Frame Rate | Up to 60 fps |
| Display | 7-inch HDR LCD, 2000 nits, 100% DCI-P3 |
| SDI Audio | 64-channel embedded audio |
| HDMI Audio | 8-channel embedded audio |
| Analog Audio | 4-channel balanced XLR and 2-channel unbalanced RCA |
| Timecode | 1 x XLR input and 1 x XLR output |
| Reference Input | Tri-Sync or Black Burst |
| Remote Control | 1 x RS-422 input and 1 x RS-422 output |
| Ethernet | 10Gb/s |
| External Recording | USB-C 3.1 Gen 2, up to 10Gb/s |
| Video Sampling | 4:2:2 YUV |
| Color Precision | 10-bit |
| Color Space | Rec. 601, Rec. 709, Rec. 2020 |
| 3D LUTs | 33-point 3D LUT support |
| Video Codecs | H.264 and H.265 |
| Scopes | Waveform, RGB Parade, Vector, and Histogram |
| Software | Blackmagic OS and Blackmagic HyperDeck Setup |
| Operating Systems | macOS and Windows |
| Power Supply | Internal 100–240V AC and 4-pin XLR 12V DC input |
| Power Consumption | 190W maximum |
| Installation | 3RU, half-rack width |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
