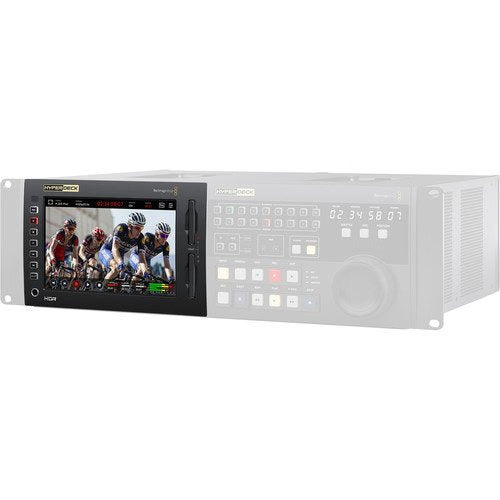

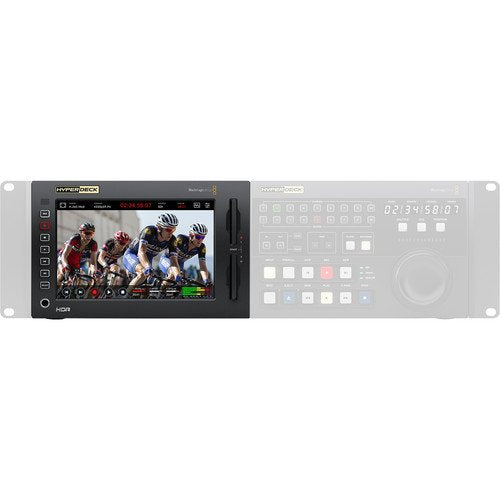

Blackmagic Design HyperDeck Extreme 8K HDR
SKU: HYPERD/RSTEX8KHDR
Key Features
- Large LCD with Touchscreen Deck Controls
- Physical Controls, Two CFast Card Slots
- Quad 12G-SDI, HDMI, and Legacy Analog
- Fast USB Type-C Disk Port; 10G Ethernet
- PCIe Cache Card Slot
- H.265 Recording/Playback, ProRes Support
- Rec. 2020/709 Support, HDR Scopes
- SDI/HDMI Auto HDR Detection
- Multichannel SDI and Analog Audio
- Load and Save 3D LUTs
- 22,555.00 AED
- 22,555.00 AED
- Unit price
- per
Dimensions: 43.92 x 27.94 x 20.57 cm
Weight: 4.67 kg
Description
xThe Blackmagic Design HyperDeck Extreme 8K HDR is a professional 8K broadcast recorder and playback deck designed for live production, broadcast, post-production, and high-resolution video workflows. It combines native 8K recording with advanced H.265 encoding, HDR support, internal cache, and professional SDI connectivity.
It features four 12G-SDI inputs, five SDI outputs, HDMI 2.0 input and output, and support for SD, HD, Ultra HD, 4K DCI, and native 8K formats up to 60p. The built-in 7-inch HDR LCD provides a 2000-nit display with 100% DCI-P3 coverage for monitoring video, audio, timecode, and recording information.
The HyperDeck Extreme 8K HDR also includes 3D LUTs, broadcast-quality scopes, 64-channel embedded SDI audio, professional XLR and RCA audio inputs, RS-422 deck control, 10Gb/s Ethernet, and USB-C external disk recording. Its internal 100–240V AC power supply and 12V XLR input support studio and mobile production workflows.
For more professional recording and playback equipment, explore the Systec Video Recorders & Players collection.
FAQs
What resolutions does the HyperDeck Extreme 8K HDR support?
It supports SD, HD, Ultra HD, 4K DCI, and native 8K formats, including 8K up to 60p.
Does it support HDR?
Yes. It includes a 7-inch 2000-nit HDR LCD, HDR metadata support, and 3D LUT functionality.
What video connections does it provide?
It has four SDI inputs, five SDI outputs, one HDMI 2.0 input, and one HDMI 2.0 output.
Can it record to external USB storage?
Yes. Its USB-C 3.1 Gen 2 connection supports external disk recording at up to 10Gb/s.
Does it include professional deck control?
Yes. It provides RS-422 input and output, SDI start/stop, timecode control, and Blackmagic HyperDeck Ethernet Protocol support.
Specs
xSpecifications
| Product Type | Professional 8K broadcast recorder and playback deck |
|---|---|
| SDI Video Inputs | 4 |
| SDI Video Outputs | 5, including 4 x 12G-SDI and 1 x 3G-SDI monitor output |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G-SDI |
| HDMI | 1 x HDMI 2.0 input and 1 x HDMI 2.0 output |
| Analog Video Input | Component YUV and composite NTSC/PAL |
| Analog Audio Inputs | 4-channel balanced XLR and 2-channel unbalanced RCA |
| Built-in Speaker | Mono |
| Display | 7-inch 1920 × 1200 HDR LCD, 2000 nits, 100% DCI-P3 |
| Timecode | 1 x XLR input and 1 x XLR output |
| Reference Input | Tri-Sync or Black Burst |
| SDI Audio | 64-channel embedded audio input and output |
| HDMI Audio | 8-channel embedded audio input and output |
| Remote Control | 1 x RS-422 input and 1 x RS-422 output |
| Ethernet | 10Gb/s |
| External Recording | USB-C 3.1 Gen 2, up to 10Gb/s |
| Computer Interface | USB-C for software updates |
| Video Sampling | 4:2:2 YUV |
| Color Precision | 10-bit |
| Color Space | Rec. 601, Rec. 709, Rec. 2020 |
| 3D LUTs | 33-point 3D LUT support |
| Audio Codecs | AAC 2-channel; PCM 2, 4, 8, 16, 32, or 64-channel |
| Scopes | Waveform, RGB Parade, Vector, and Histogram |
| Operating Systems | macOS 15.0 Sequoia, macOS 26.0 Tahoe or later, and Windows 11 |
| Software | Blackmagic OS and Blackmagic HyperDeck Setup |
| Power Supply | Internal 100–240V AC and 4-pin XLR 12V DC input |
| Power Consumption | 190W maximum |
| Installation | 3RU, half-rack width |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 1 Year Limited Manufacturer's Warranty |
