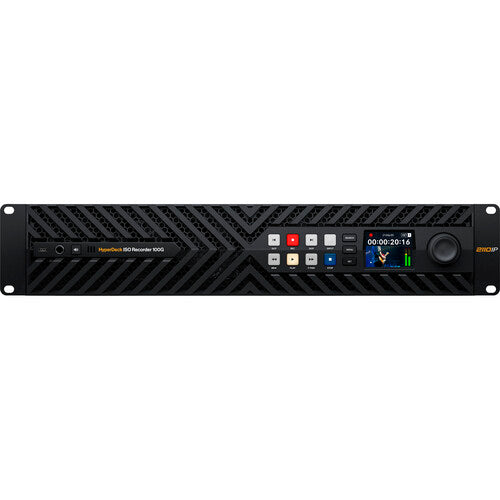

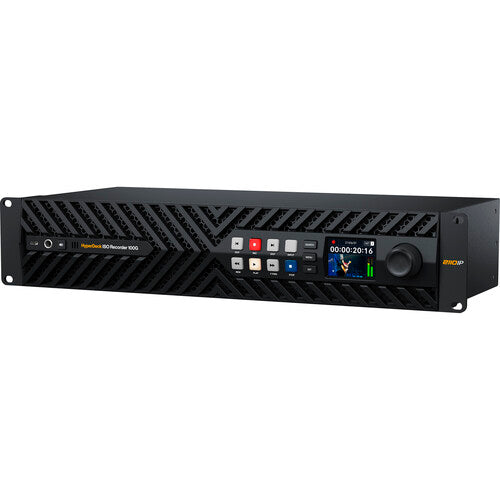

Blackmagic Design HyperDeck ISO Recorder 100G
SKU: HYPERD/UISO/100G
Key Features
- Record 8 Channels of 4K60 10-Bit Video
- Dual Redundant 100GbE Video I/O
- Records Direct to Network Storage
- SMPTE 2110 IP Video Compliance
- ProRes HQ, 422, LT & Proxy Support
- Live Replay via DaVinci Resolve
- 2.2" LCD with Search Dial Control
- External Control via RJ45 & RS-422
- 2 RU Form Factor
- Dual Redundant AC Power Inputs
- 19,853.00 AED
- 19,853.00 AED
- Unit price
- per
Dimensions: 48.3 x 24.1 x 8.9 cm
Description
xThe Blackmagic Design HyperDeck ISO Recorder 100G is a professional multi-channel recorder designed for live production, broadcast, sports, and IP-based video workflows. It can record up to eight Ultra HD or HD camera channels simultaneously in broadcast-quality ProRes directly to network storage.
The recorder supports ProRes 422 HQ, ProRes 422, ProRes LT, and ProRes Proxy, with recording up to 4K60. Its dual 100G QSFP28 connections support SMPTE 2110 IP video and SMPTE 2022-7 redundant network delivery, making it suitable for demanding broadcast environments.
For monitoring and control, the HyperDeck ISO Recorder 100G features a 2.2-inch LCD, search dial, dual 12G-SDI monitor outputs, HDMI output, RS-422 deck control, Ethernet control, and USB-C connectivity. It also supports live replay workflows with DaVinci Resolve.
With dual redundant power inputs and a compact 2 RU rackmount design, the HyperDeck ISO Recorder 100G is built for reliable multi-camera recording and professional live production systems.
Looking for more professional video recording equipment? Explore our Blackmagic Design products for more solutions.
Frequently Asked Questions
How many channels can the HyperDeck ISO Recorder 100G record?
It can record up to eight Ultra HD or eight HD video channels simultaneously.
What recording formats does it support?
It supports ProRes 422 HQ, ProRes 422, ProRes LT, and ProRes Proxy in QuickTime format.
Does the HyperDeck ISO Recorder 100G support SMPTE 2110?
Yes. It supports SMPTE 2110 IP video, audio, and ancillary data standards, along with SMPTE 2022-7 redundant delivery.
Can it record directly to network storage?
Yes. The recorder is designed to record ProRes files directly to network storage over its 100G Ethernet connections.
In the Box
x- Blackmagic Design HyperDeck ISO Recorder 100G
- Limited 1-Year Manufacturer Warranty
Specs
x| Brand | Blackmagic Design |
|---|---|
| Supported Formats | MOV / ProRes 422 / ProRes 422 HQ / ProRes 422 LT / ProRes 422 Proxy |
| Recording Modes | ProRes / ProRes 422 / ProRes 422 HQ / ProRes 422 Proxy up to DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Max Video Output | 4:2:2 10-Bit via HDMI / RJ45 / SDI/BNC, up to DCI 4K at 24/25/29.97/30/50/59.94/60 fps |
| Video I/O | 12G-SDI / HDMI / SMPTE LEMO Fiber |
| Audio I/O | 1/8" / 3.5 mm TRRS Headphone/Mic |
| Media Support | MOV / ProRes 422 / ProRes 422 HQ / ProRes 422 LT / ProRes 422 Proxy |
| Video Recording |
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
| Video Output |
4:2:2 10-Bit via HDMI / RJ45 / SDI/BNC 4096 x 2160 at 24/25/29.97/30/50/59.94/60 fps 3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
| Video Connectivity |
2x SMPTE LEMO Fiber SMPTE 2110 Input 2x SMPTE LEMO Fiber SMPTE 2110 Output 2x BNC (12G-SDI) Monitor Output 1x HDMI Monitor Output |
| Audio Connectivity | 1x 1/8" / 3.5 mm Stereo Output |
| Power I/O | 2x IEC C13/C14 Input |
| Input Power | 100 to 240 VDC |
| Display | 2.2" / 5.6 cm LCD |
| Rack Mountable | Yes, 2 RU |
| Operating Conditions | 32 to 104°F / 0 to 40°C, up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C, up to 90% Humidity |
| Certifications | IEEE 1588-2008, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084, SMPTE 2108-1, SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, SMPTE 2022-7, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10 |
| Dimensions | 19 x 9.5 x 3.5" / 48.3 x 24.1 x 8.9 cm |
