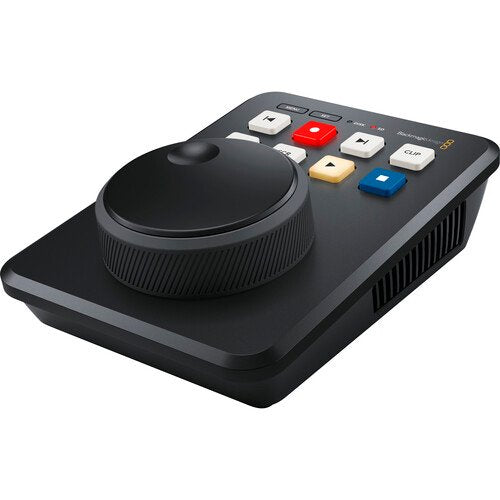

Blackmagic Design HyperDeck Shuttle HD
SKU: HYPERD/PTSHD
Key Features
- Compact Desktop Media Player/Recorder
- Broadcast Deck Controls with Search Dial
- Records to SD Cards or USB Type-C Disks
- HD and Full HD Recording up to 60p
- H.264, ProRes, and DNx File Formats
- 1 Gb/s Ethernet and USB Type-C Ports
- HDMI In and Out Ports
- Webcam Ability; Teleprompter Function
- Blackmagic OS
- 2,079.00 AED
- 2,079.00 AED
- Unit price
- per
Dimensions: 18.79 x 18.03 x 8.89 cm
Weight: 0.75 kg
Description
xThe Blackmagic Design HyperDeck Shuttle HD is a professional desktop recorder and media player designed for broadcast, live production, post-production, and studio workflows. Its large search dial makes it easy to browse clips, while the HDMI connections allow you to connect cameras, switchers, monitors, and other video equipment.
The HyperDeck Shuttle HD records and plays back popular professional formats including ProRes, DNxHD, and H.264. It supports SD and HD video up to 1080p60, with 10-bit video and 4:2:2 YUV processing for high-quality recording and playback.
Media can be recorded to SD/UHS-I or UHS-II cards, while the USB-C 3.0 port supports external disk recording, configuration, and software updates. The unit also includes Ethernet control, a built-in teleprompter, HDMI start/stop support, and a 10-button transport control panel. For more professional recording and playback solutions, explore the Systec Video Recorders & Players collection.
FAQs
What is the HyperDeck Shuttle HD used for?
It is a professional desktop video recorder and player for broadcast, live production, studio, and post-production workflows.
What video formats does it support?
It supports SD and HD formats up to 1080p60, including ProRes, DNxHD, and H.264 codecs.
What type of media can it record to?
It supports UHS-I and UHS-II SD cards and external USB-C drives.
Does it have HDMI input and output?
Yes. It has one HDMI input and one HDMI output with embedded audio support.
Can it be controlled remotely?
Yes. It supports 1Gb/s Ethernet and the Blackmagic HyperDeck Ethernet Protocol, as well as HDMI start/stop and timecode control.
Specs
xSpecifications
| Product Type | Professional HD recorder and media player |
|---|---|
| HDMI Inputs | 1 |
| HDMI Outputs | 1 |
| HDMI Audio | 8 channels embedded audio input and output |
| Video Standards | SD and HD up to 1080p60 |
| Video Sampling | 4:2:2 YUV |
| Color Precision | 10-bit |
| Color Space | Rec. 601 and Rec. 709 |
| Media | 1 x SD card slot and 1 x USB-C 3.0 expansion port |
| Media Type | UHS-I and UHS-II SD cards |
| Media Format | ExFAT and HFS+ |
| Video Codecs | ProRes HQ, ProRes 422, ProRes LT, ProRes Proxy, DNxHD and H.264 |
| Ethernet | 1Gb/s |
| Computer Interface | USB Type-C 3.0 up to 5Gb/s |
| Control | 10-button transport panel, metal search dial and HyperDeck Ethernet Protocol |
| Teleprompter | Supports RTF and TXT files |
| Power Supply | 12V DC locking 5.5mm barrel input |
| Power Consumption | 20W maximum |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 0% to 90%, non-condensing |
| Warranty | 1 Year Limited Manufacturer’s Warranty |
