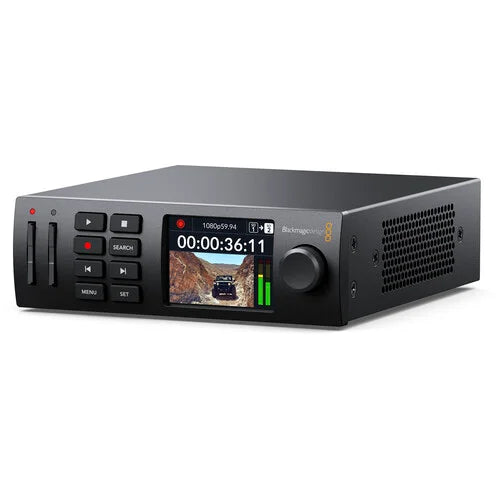

Blackmagic Design HyperDeck Studio HD Mini
SKU: HYPERD/ST/DAHM
Key Features
- 1 x 3G-SDI Input
- 1 x HDMI and 1 x 3G-SDI Outputs
- Records ProRes, DNxHD, and H.264
- Records in H.264 SDI 4:2:2 10-Bit
- Front-Panel Buttons, Jog Wheel, LCD
- Timecode and Reference Input/Output
- 1/3 Rack-Mountable Form Factor
- USB Type-C, 1G Ethernet, RS-422
- 2,337.00 AED
- 2,337.00 AED
- Unit price
- per
Dimensions: 30 x 18 x 7 cm
Weight: 1.5 kg
Description
xThe Blackmagic Design HyperDeck Studio HD Mini is a compact professional broadcast recorder designed for studio, live production and portable workflows. It features 3G-SDI input and output, HDMI output, dual SD card slots and USB-C for external recording or webcam output. It supports recording in ProRes, DNxHD and H.264 formats up to 1080p60.
Its built-in 2.2-inch LCD, front-panel controls and jog/shuttle wheel make recording and playback easy to manage. The HyperDeck Studio HD Mini also includes timecode and reference connections, RS-422 control and 1Gb Ethernet for remote operation and file transfers.
For more professional recording and playback solutions, explore Systec International’s Video Recorders & Players collection.
FAQs
What formats can the HyperDeck Studio HD Mini record?
It supports Apple ProRes, DNxHD and H.264 recording formats.
What video inputs does it have?
It has one 3G-SDI video input supporting SD, HD and compatible 3G-SDI signals.
Does it support SD cards?
Yes. It has two SD card slots supporting UHS-I and UHS-II SD cards.
Can it record to an external USB drive?
Yes. The USB Type-C 3.0 port supports external recording to USB drives.
Can it be controlled remotely?
Yes. It supports RS-422, Ethernet and USB control options.
Specs
xSpecifications
| Video Input | 1 x BNC, 3G-SDI |
|---|---|
| Video Outputs | 1 x BNC 3G-SDI, 1 x HDMI Type A |
| Computer Interface | 1 x USB Type-C 3.0 |
| Timecode | 1 x BNC In, 1 x BNC Out |
| Reference | 1 x BNC In, 1 x BNC Out, Tri-Sync or Black Burst |
| Audio | 16-channel embedded SDI audio; 8-channel HDMI audio |
| Device Control | 1 x RS-422 deck control |
| Ethernet | 1Gb/s |
| Media | 2 x SD card slots, UHS-I and UHS-II |
| Supported Codecs | ProRes, DNxHD and H.264 |
| Video Sampling | 4:2:2 YUV |
| Color Depth | 10-bit |
| Display | 2.2-inch LCD |
| Power | 100–240V AC and 12V DC input |
