Blackmagic Design Media Player 10G
SKU: BDLKULSTMP010G
Key Features
- Playback and Capture for Thunderbolt
- Dual 12G-SDI Fill/Key Playback Outputs
- 12G-SDI Capture Input, 12G-SDI Loop Out
- 10G Ethernet Storage/Power to Computer
- Supports DeckLink API Features
- 3,882.00 AED
- 3,882.00 AED
- Unit price
- per
Dimensions: 22.9 x 21.1 x 4.4 cm
Weight: 1.5 kg
Description

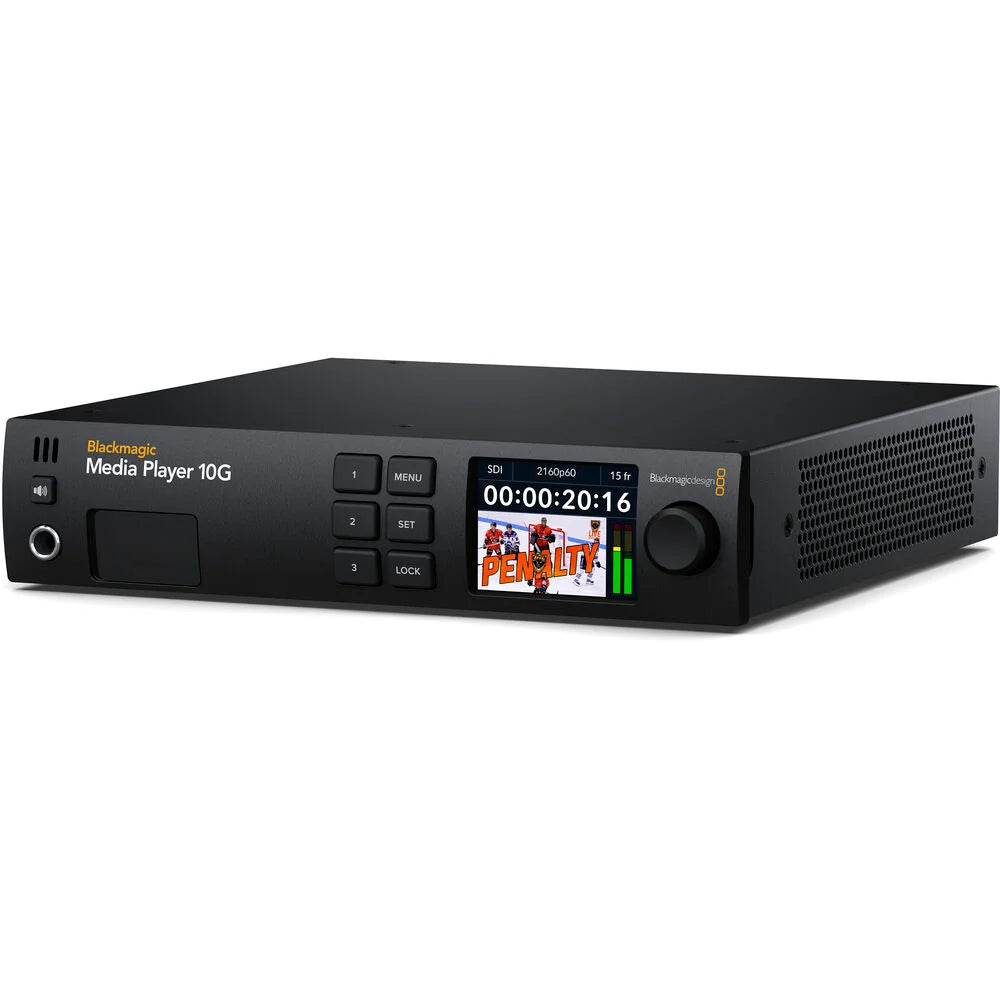

xThe Blackmagic Design Media Player 10G is a professional capture and playback solution designed for broadcast, live production, replay, and post-production workflows. It combines 12G-SDI capture, dual 12G-SDI fill and key outputs, extended desktop connections, and 10G Ethernet through a compact broadcast-focused design.
With Thunderbolt 3 connectivity, the Media Player 10G lets compatible Mac, Windows, and Linux computers handle real-time video capture and playback. It supports SD, HD, and Ultra HD video standards up to 2160p60, while its fill and key outputs make it suitable for broadcast graphics, titles, overlays, and transparent video playback.
The built-in 10G Ethernet connection provides fast access to network storage without requiring a separate Ethernet adapter. The unit also supports simultaneous capture and playback, allowing the connected computer to process live SDI video while outputting video at the same time.
The Media Player 10G works with DaVinci Resolve and popular professional video software through Blackmagic Desktop Video and DeckLink API support. Its RS-422 deck control, balanced audio outputs, headphone connection, front-panel display, and extensive codec support make it a flexible solution for broadcast graphics, replay, editing, and professional media workflows. For more professional capture and playback equipment, explore the Systec capture cards collection.
FAQs
What is the Blackmagic Media Player 10G used for?
It is designed for professional video capture and playback, live production, broadcast replay, graphics, and post-production workflows.
What SDI connections does it provide?

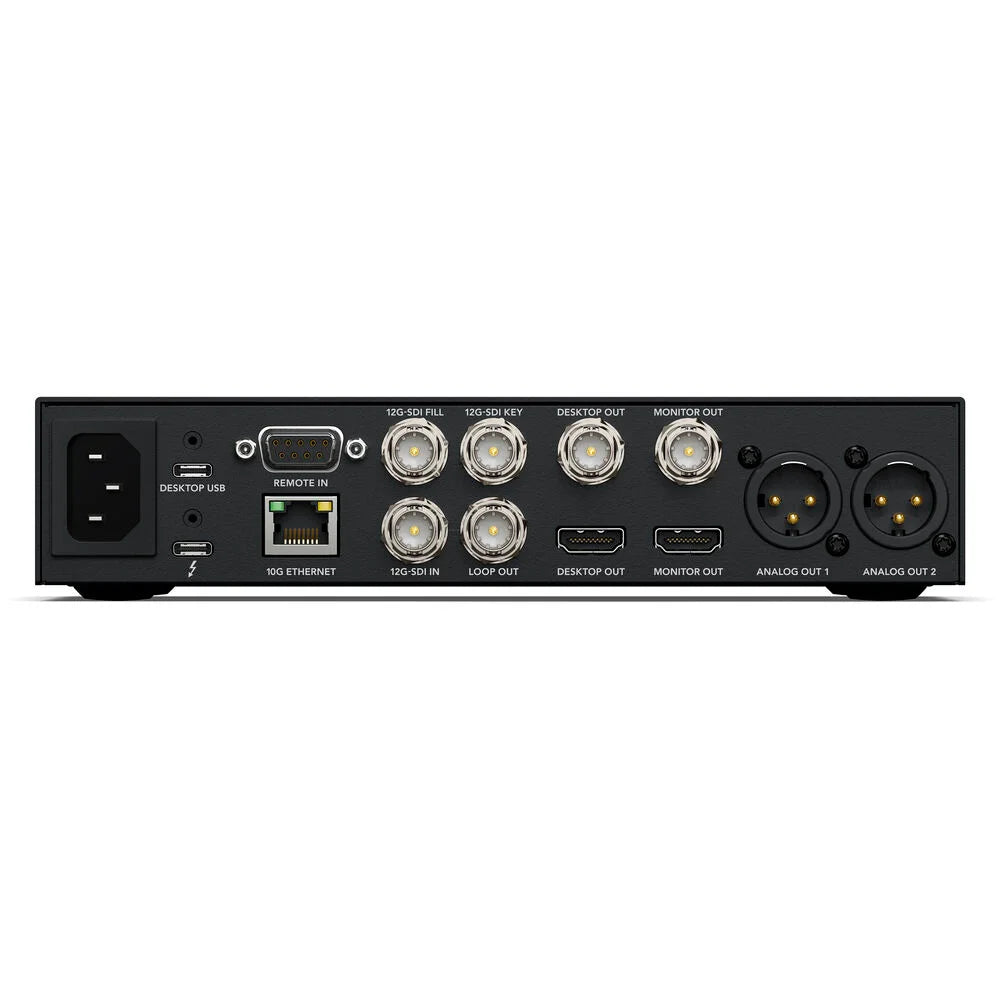

It includes one 12G-SDI input, separate 12G-SDI fill and key outputs, an SDI loop output, an extended desktop output, and an SDI monitoring output.
Does the Media Player 10G support 4K?
Yes. It supports SD, HD, and Ultra HD video standards up to 2160p60 through its 12G-SDI connections.
Does it support network storage?
Yes. Its 10G Ethernet connection provides high-speed access to network storage when the computer is connected through Thunderbolt.
Which computers can be used with the Media Player 10G?
It provides Thunderbolt 3 connectivity for Mac, Windows, and Linux computers.
Specs
xSpecifications
| Product Type | Professional capture and playback solution |
|---|---|
| SDI Video Input | 1 |
| SDI Fill Output | 1 |
| SDI Key Output | 1 |
| SDI Loop Output | 1 |
| SDI Extended Desktop Output | 1 |
| SDI Monitor Output | 1 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G |
| HDMI Extended Desktop Output | 1 |
| HDMI Monitor Output | 1 |
| Analog Audio Outputs | 2-channel balanced analog audio via 3-pin XLR, plus 6.35mm headphone output |
| SDI Audio Input | 16 channels embedded in HD and Ultra HD |
| SDI Audio Output | 16 channels embedded in HD and Ultra HD |
| HDMI Audio Output | 8 channels embedded in HD and Ultra HD |
| Device Control | Sony-compatible RS-422 deck control input |
| USB | USB-C 3.1 Gen 1, up to 5Gb/s |
| Computer Interface | Thunderbolt 3 for Mac, Windows and Linux; USB-C for keyboard, mouse and other USB devices |
| Ethernet | 10Gb/s RJ-45, supporting 1000/10G BASE-T |

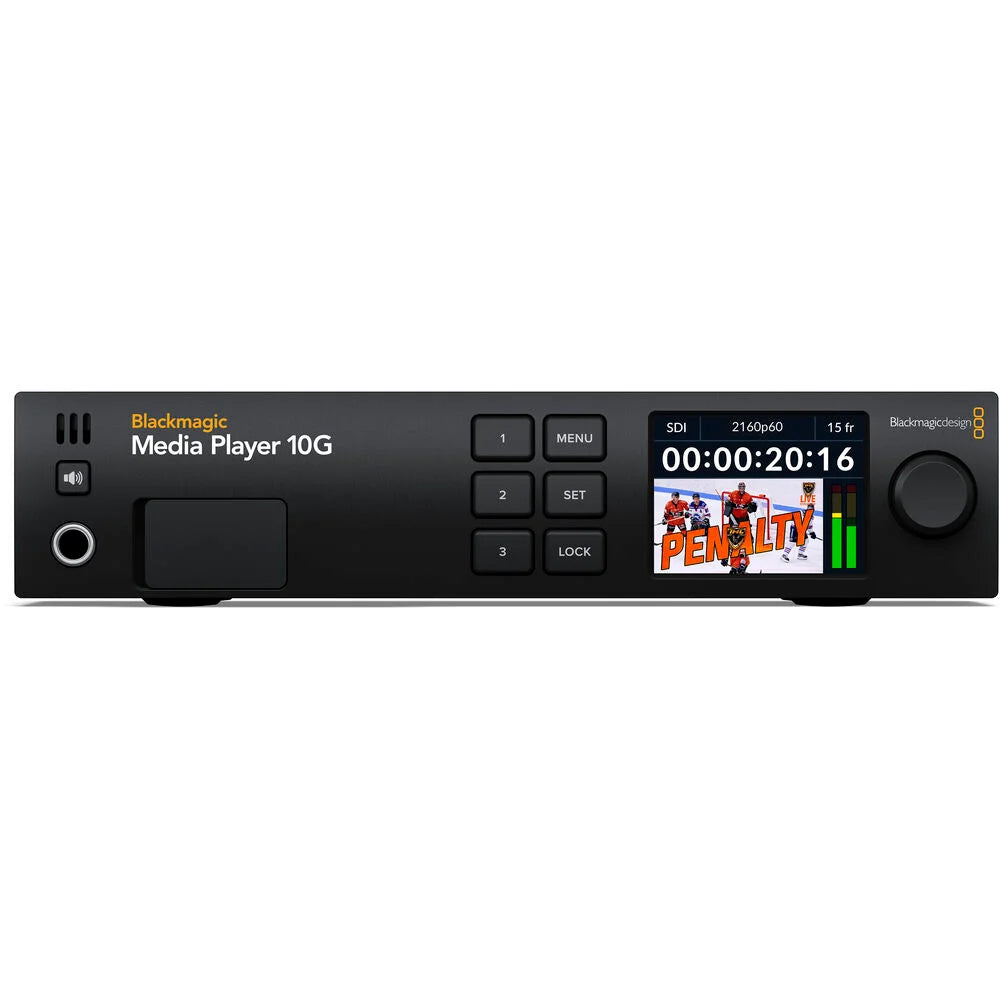

| Control Panel | 6 buttons, spin knob and 2.2-inch color display |
| Supported Video Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, DPX, HEVC, XDCAM, DNxHR, DNxHD, Apple ProRes and Uncompressed 8-bit/10-bit video |
| Hardware Frame Buffer | v210, 2vuy, ARGB, BGRA, r210, Ay10, R12B and R12L |
| HDR Support | HDR static metadata packing, HLG and PQ |
| Operating Systems | Mac 15 Sequoia, Mac 26 Tahoe or later, Windows 10 64-bit, Windows 11 and Linux |
| Power Supply | Internal 100–240V AC, 50/60Hz with IEC C14 socket |
| Power Consumption | 85.2W |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 1-year limited manufacturer warranty |
