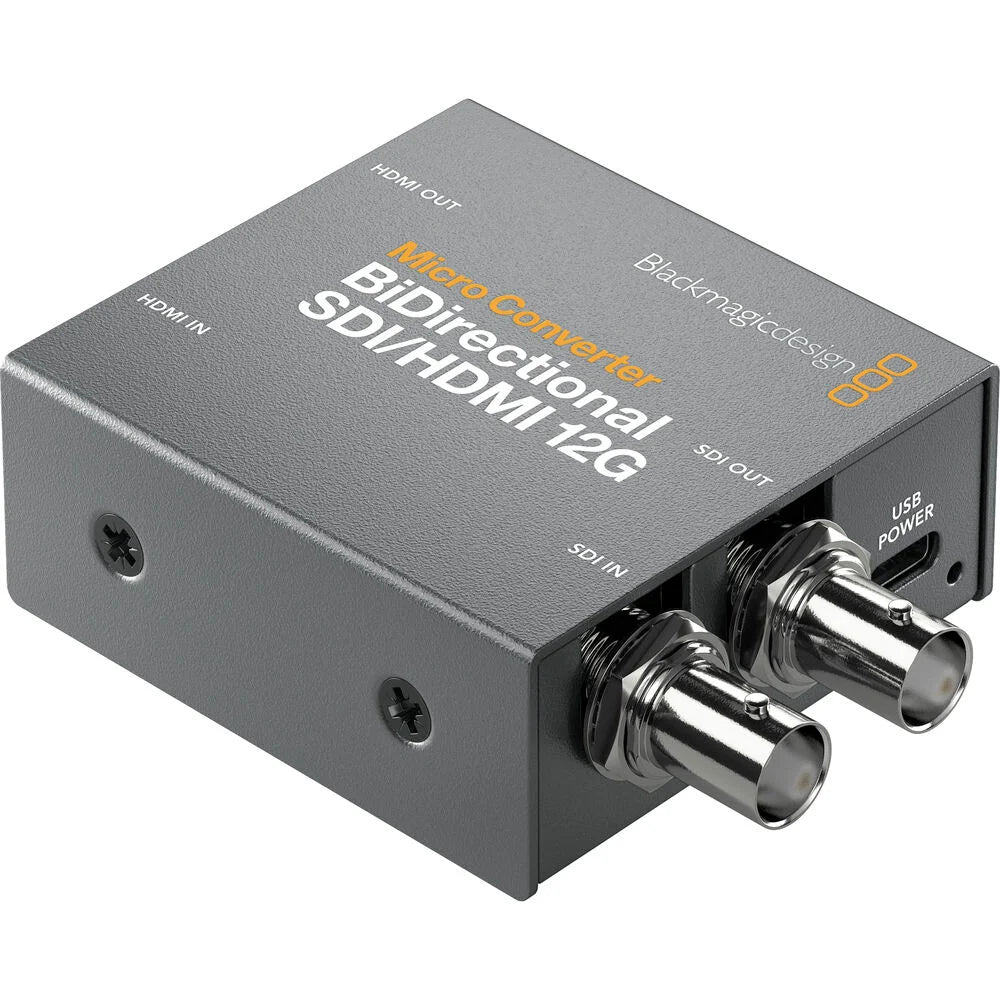

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G
SKU: CONVBDC/SDI/HDMI12G
Key Features
- Simultaneous SDI to HDMI & HDMI to SDI
- 1 x SD/HD/12G-SDI & 1x HDMI Input/Output
- Supports up to DCI/UHD 4K60 Video
- Blackmagic Camera Control, Tally Support
- SDI Re-Clocking/HDMI Timecode
- HDMI Copy Protection Support
- Automatic Input Signal Detection
- Embedded HDMI & SDI Input/Output
- LED Video & Power Signal Indicator.
- 718.00 AED
- 718.00 AED
- Unit price
- per
Dimensions: 9 x 7 x 3 cm
Weight: 0.2 kg
Description
xThe Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G is a compact broadcast converter that allows simultaneous SDI to HDMI and HDMI to SDI conversion. It supports SD, HD, Ultra HD, and DCI 4K formats up to 2160p60, with each conversion direction able to use a different video standard.
The converter features 12G-SDI and HDMI 2.0 connections, automatic format detection, and SDI re-clocking for reliable signal handling. It can also load a 33-point 3D LUT through the software utility for monitor calibration and color improvement.
It supports Blackmagic Camera Control and Tally, making it useful for connecting compatible cameras with professional SDI production equipment. The compact metal design and USB-C power support make it suitable for studio, live production, broadcast, and mobile workflows.
For more professional video conversion equipment, explore our Blackmagic Design collection and Signal Processing, Converters, Distribution range.
Frequently Asked Questions
What is the Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G used for?
It converts SDI to HDMI and HDMI to SDI simultaneously, making it suitable for professional broadcast, live production, monitoring, and camera workflows.
What is the maximum resolution supported?
The converter supports SD, HD, 2K, Ultra HD, and DCI 4K formats up to 2160p60.
Can both conversion directions use different formats?
Yes. Each conversion direction can use a different supported SD, HD, Ultra HD, or 4K video standard.
Does it support camera control and tally?
Yes. The bidirectional conversion supports Blackmagic Camera Control and Tally for compatible production equipment.
Does it support 3D LUTs?
Yes. A 33-point 3D LUT can be loaded through the software utility for calibrating or improving monitor color.
Specs
x| Product Name | Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G |
|---|---|
| SDI Video Input | 1 x SDI |
| SDI Video Output | 1 x SDI, automatically matches HDMI video input |
| HDMI Video Input | 1 x HDMI 2.0 Type A |
| HDMI Video Output | 1 x HDMI 2.0 Type A |
| SDI Rates | 270 Mb/s, 1.5G, 3G, 6G, 12G |
| Multi-Rate Support | SD, HD, 2K, Ultra HD, and 4K |
| Maximum Resolution | Ultra HD 2160p60 and DCI 4Kp60 |
| SDI Reclocking | Yes |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| HDMI Color Precision | 4:2:2 |
| HDMI Color Space | YUV |
| 3D LUT | 33-point 3D LUT |
| SDI Auto Switching | Automatic detection of SD, HD, 2K DCI, Ultra HD, and 4K DCI |
| 3G-SDI Level | Level A and B, automatically detected on input and user selectable on output |
| Camera Control | Blackmagic Camera Control and Tally |
| Settings and Updates | USB Type-C via Mac or Windows software |
| Operating Systems | macOS 10.15 Catalina or later, Windows 10 64-bit |
| Power Connection | USB Type-C |
| Power Consumption | 5W maximum |
| Operating Voltage | 4.4V to 5.25V DC |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 0% to 90%, non-condensing |
