Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply
SKU: CONVBDC/SDI/HDMI12G/P
Key Features
- Simultaneous SDI to HDMI & HDMI to SDI
- 1 x SD/HD/12G-SDI & 1x HDMI Input/Output
- Supports up to DCI/UHD 4K60 Video
- Blackmagic Camera Control, Tally Support
- SDI Re-Clocking/HDMI Timecode
- HDMI Copy Protection Support
- Automatic Input Signal Detection
- Embedded HDMI & SDI Input/Output
- LED Video & Power Signal Indicators
- A Power Supply Is Included
- 718.00 AED
- 718.00 AED
- Unit price
- per
Dimensions: 15 x 12 x 8 cm
Weight: 0.4 kg
Description

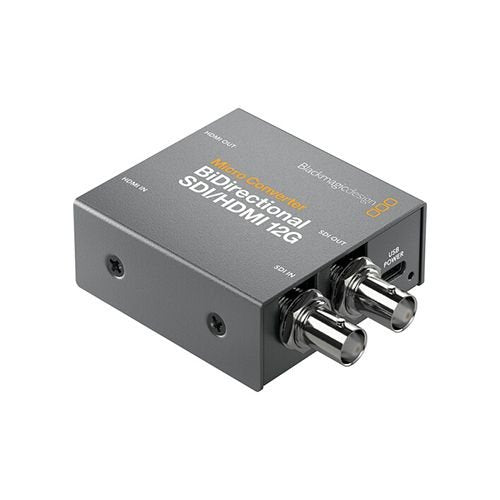

xThe Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply is a compact broadcast converter that provides simultaneous SDI to HDMI and HDMI to SDI conversion for SD, HD, Ultra HD, and DCI 4K formats up to 2160p60. Each conversion direction can use a different video standard, making it useful for professional live production, broadcasting, and monitoring workflows.
The converter features 12G-SDI and HDMI 2.0 connections with automatic signal detection and SDI re-clocking for stable signal transmission. It also supports embedded audio, HDMI timecode, and Blackmagic Camera Control and Tally for compatible cameras and production systems.

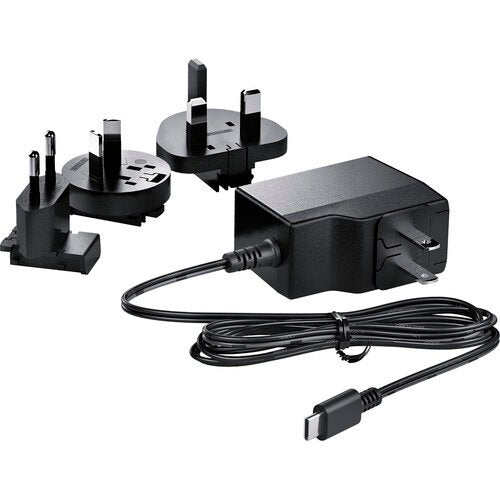

Its compact metal housing makes it suitable for mobile and studio setups, while the USB Type-C connection can provide power from compatible monitors, laptops, or other devices. This version also includes a 5V universal power supply with international plug adapters.
For more professional signal conversion equipment, explore our Blackmagic Design collection and Signal Processing, Converters, Distribution range for additional broadcast and video solutions.
Frequently Asked Questions
What is the Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G used for?
It is designed to convert SDI to HDMI and HDMI to SDI for professional broadcast, live production, monitoring, and video workflows.
What is the maximum resolution supported?
The converter supports SD, HD, Ultra HD, and DCI 4K formats up to 2160p60.
Can both conversion directions work simultaneously?
Yes. SDI to HDMI and HDMI to SDI conversion can operate simultaneously, and each direction can use a different supported video standard.
Does it support Blackmagic camera control?
Yes. It supports Blackmagic Camera Control and Tally, allowing compatible HDMI cameras to be integrated with SDI-based live production systems.
Does this version include a power supply?
Yes. The wPSU version includes a 5V universal power supply and international socket adapters.
Specs
x| Product Name | Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply |
|---|---|
| SDI Video Input | 1 x SDI |
| SDI Video Output | 1 x SDI, automatically matches HDMI video input |
| HDMI Video Input | 1 x HDMI 2.0 Type A |
| HDMI Video Output | 1 x HDMI 2.0 Type A |
| SDI Rates | 270 Mb/s, 1.5G, 3G, 6G, 12G |
| Maximum Resolution | DCI 4K and Ultra HD up to 2160p60 |
| Multi-Rate Support | SD, HD, 2K, Ultra HD, and 4K |
| SDI Reclocking | Yes |
| HDMI Color Space | YUV |
| Embedded Audio | SDI and HDMI input/output |
| Camera Control | Blackmagic Camera Control and Tally |
| Timecode | HD and SD, with HDMI to SDI and SDI to HDMI conversion |
| SDI Standards | SMPTE 259M, 292M, 296M, 424M, 425M, 2081-1, 2081-10, 2082-1, 2082-10, 2084, 2108-1 |
| Power Connection | USB Type-C |
| Power Supply | 5V universal power supply with international socket adapters |
| Power Consumption | 5W maximum |
| Operating Voltage | 4.4V to 5.25V DC |
| Settings and Updates | USB Type-C via Mac or Windows software |
| Operating Systems | macOS 10.15 or later and Windows 10 64-bit |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 0% to 90% non-condensing |
