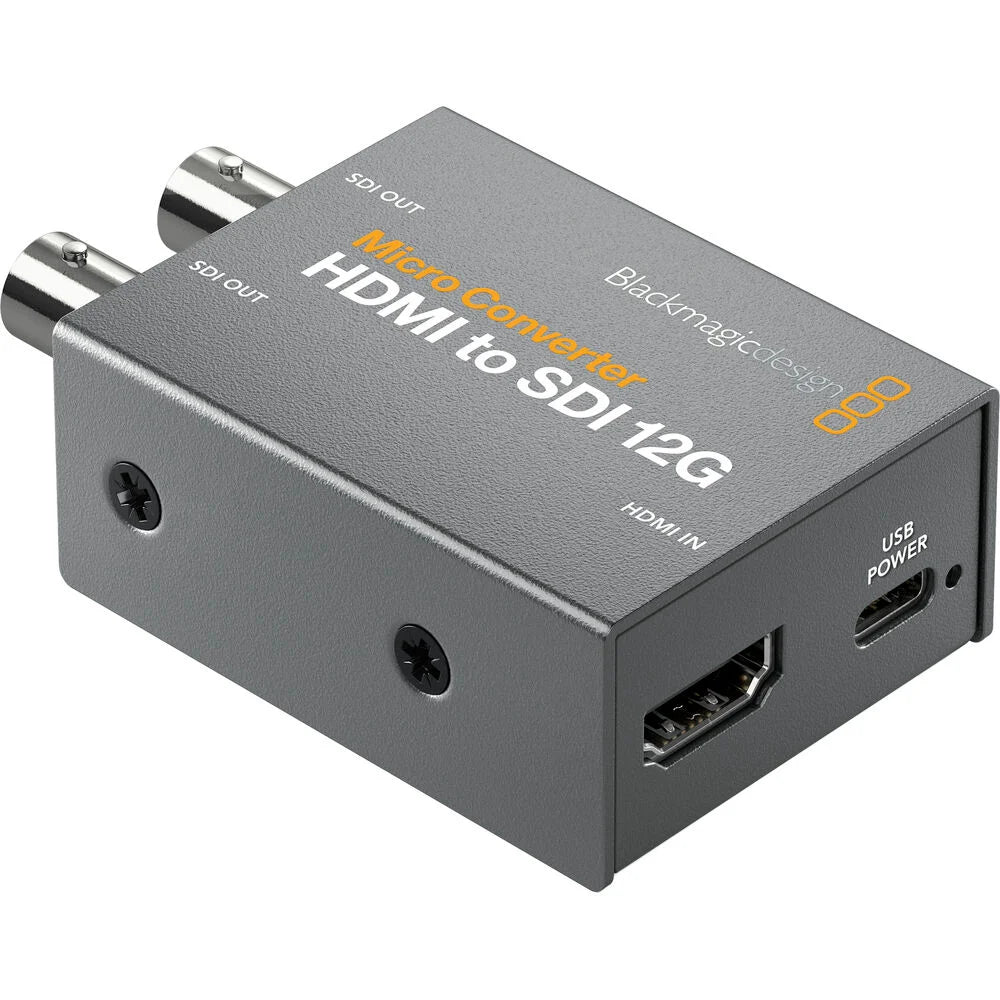

Blackmagic Design Micro Converter HDMI to SDI 12G
SKU: CONVCMIC/HS12G
Key Features
- 1 x HDMI Input, 2 x 12G-SDI Outputs
- Selectable SD/HD Level A/B SDI Ports
- Supports up to DCI 4K60 Resolution I/O
- SDI Re-Clocking, HDMI Copy Protection
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio, USB Type-C Power
- LED Video & Power Signal Indicators
- 497.00 AED
- 497.00 AED
- Unit price
- per
Dimensions: 8 x 5 x 3 cm
Weight: 0.2 kg
Description
xThe Blackmagic Design Micro Converter HDMI to SDI 12G is a compact broadcast-quality converter designed to connect HDMI cameras, computers, and other HDMI sources to professional SDI equipment. It features one HDMI 2.0 input and two 12G-SDI outputs for flexible professional video workflows.
The converter supports SD, HD, 2K, Ultra HD, and DCI 4K formats up to 2160p60. It automatically detects the incoming HDMI format and matches the SDI outputs, while SDI re-clocking helps maintain reliable signal transmission.
It also supports 3G-SDI Level A or B, embedded audio, and a 33-point 3D LUT that can be loaded through the software utility. USB Type-C provides convenient power and allows software updates and configuration.
For more professional video conversion equipment, explore our Blackmagic Design collection and Signal Processing, Converters, Distribution range.
Frequently Asked Questions
What is the Blackmagic Design Micro Converter HDMI to SDI 12G used for?
It converts HDMI video signals to professional SDI, allowing HDMI cameras and computers to connect to SDI-based production and broadcast equipment.
How many SDI outputs does it have?
The converter provides two 12G-SDI outputs, which automatically match the HDMI input signal.
What is the maximum resolution supported?
It supports SD, HD, 2K, Ultra HD, and DCI 4K formats up to 2160p60.
Does it support 3D LUTs?
Yes. The converter supports a 33-point 3D LUT for monitor calibration and color management.
How is the converter powered?
The Micro Converter can be powered through USB Type-C and can also be powered from compatible USB sources such as a laptop or mobile charger.
Specs
x| Product Name | Blackmagic Design Micro Converter HDMI to SDI 12G |
|---|---|
| HDMI Video Input | 1 x HDMI 2.0 Type A |
| SDI Video Outputs | 2 x 12G-SDI |
| SDI Rates | 270 Mb/s, 1.5G, 3G, 6G, 12G |
| Multi-Rate Support | SD, HD, 2K, Ultra HD, and 4K |
| Maximum Resolution | DCI 4K and Ultra HD up to 2160p60 |
| SDI Reclocking | Yes |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| HDMI Color Precision | 4:2:2 |
| HDMI Color Space | YUV |
| 3D LUT | 33-point 3D LUT |
| 3G-SDI Level | Level A or B, selectable |
| SDI Auto Switching | Automatic detection of SD, HD, 2K DCI, Ultra HD, and 4K DCI |
| Embedded Audio | Supported |
| Settings and Updates | USB Type-C via Mac or Windows software |
| Power Connection | USB Type-C |
| Power Consumption | 4W maximum |
| Operating Voltage | 4.4V to 5.25V DC |
| Operating Systems | macOS 10.15 Catalina or later, Windows 10 64-bit |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 0% to 90%, non-condensing |
