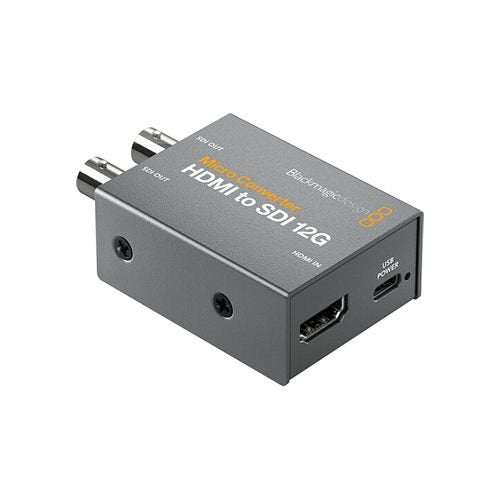

Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply
SKU: CONVCMIC/HS12G/WPSU
Key Features
- 1 x HDMI Input, 2 x 12G-SDI Outputs
- Selectable SD/HD Level A/B SDI Ports
- Supports up to DCI 4K60 Resolution I/O
- SDI Re-Clocking, HDMI Copy Protection
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio, USB Type-C Power
- Includes 5V Power Supply
- LED Video & Power Signal Indicators
- 548.00 AED
- 548.00 AED
- Unit price
- per
Dimensions: 15 x 11 x 8 cm
Weight: 0.4 kg
Description
xThe Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply is a compact broadcast-quality converter designed to connect HDMI cameras, computers, and other HDMI sources to professional SDI equipment. It features one HDMI 2.0 input and two 12G-SDI outputs that automatically match the HDMI input signal.
The converter supports SD, HD, 2K, Ultra HD, and DCI 4K formats up to 2160p60, making it suitable for live production, broadcast, studio, and professional monitoring workflows. It also supports 3G-SDI Level A and B selection and includes SDI re-clocking for reliable signal transmission.

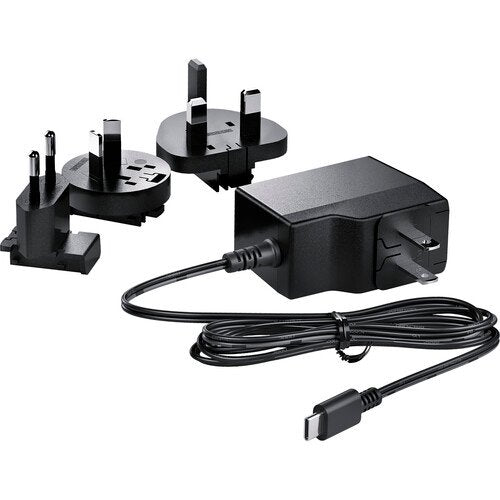

A built-in 33-point 3D LUT can be loaded through the software utility for color calibration and display improvement. The converter can be powered through USB-C, while this wPSU model includes a 5V universal power supply with international socket adapters.
For more professional video conversion equipment, explore our Blackmagic Design collection and Signal Processing, Converters, Distribution range.
Frequently Asked Questions
What is the Blackmagic Design Micro Converter HDMI to SDI 12G used for?
It converts an HDMI video signal to professional SDI, allowing HDMI cameras and computers to connect to SDI-based broadcast and production equipment.
How many SDI outputs does it have?
The converter provides two 12G-SDI outputs, which automatically match the HDMI input signal.
What is the maximum resolution supported?
It supports video formats up to Ultra HD 2160p60 and DCI 4K 60p, along with SD, HD, and 2K formats.
Does it support 3D LUTs?
Yes. The converter supports a 33-point 3D LUT, which can be loaded through the software utility for monitor color calibration.
Does the wPSU version include a power supply?
Yes. It includes a 5V universal power supply with international socket adapters. It can also be powered through USB-C.
Specs
x| Product Name | Blackmagic Design Micro Converter HDMI to SDI 12G wPSU |
|---|---|
| HDMI Video Input | 1 x HDMI 2.0 Type A |
| SDI Video Outputs | 2 x 12G-SDI |
| SDI Rates | 270 Mb/s, 1.5G, 3G, 6G, 12G |
| Multi-Rate Support | SD, HD, 2K, Ultra HD, and 4K |
| Maximum Resolution | Ultra HD 2160p60 and DCI 4K up to 60p |
| SDI Reclocking | Yes |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| 3D LUT | 33-point 3D LUT |
| SDI Auto Switching | Automatic detection of SD, HD, 2K DCI, Ultra HD, and 4K DCI |
| 3G-SDI Level | Level A or B, user selectable |
| Settings and Updates | USB Type-C via Mac or Windows software |
| Power Supply | 5V universal power supply with international socket adapters |
| Power Consumption | 4W maximum |
| Operating Voltage | 4.4V to 5.25V DC |
| Operating Systems | macOS 10.15 Catalina or later, Windows 10 64-bit |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 0% to 90% non-condensing |
