Blackmagic Design Micro Converter HDMI to SDI 3G (with Power Supply)

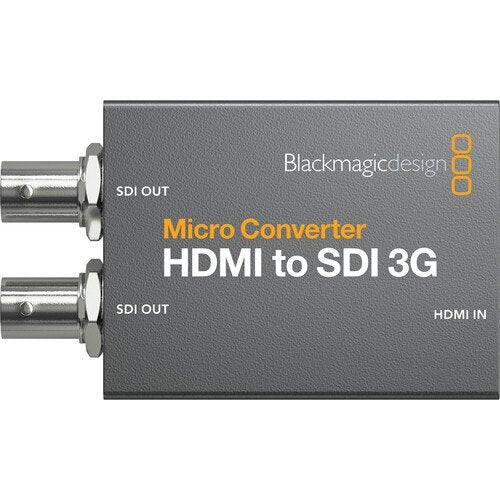

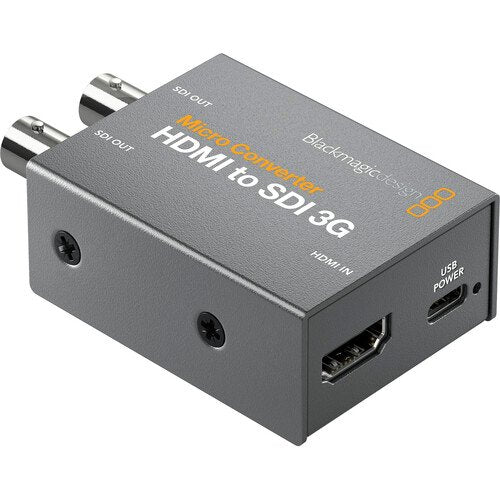

The Blackmagic Design Micro Converter HDMI to SDI 3G with Power Supply is a compact and rugged converter that lets you connect HDMI cameras, computers, and other HDMI devices to professional SDI equipment. It features one HDMI input and two 3G-SDI outputs with selectable Level A or B support.

The converter supports video resolutions up to 1080p60 and automatically detects the HDMI input signal. Built-in SDI re-clocking helps maintain stable signals over longer cable runs, while HDMI and SDI timecode support makes it suitable for professional video workflows.

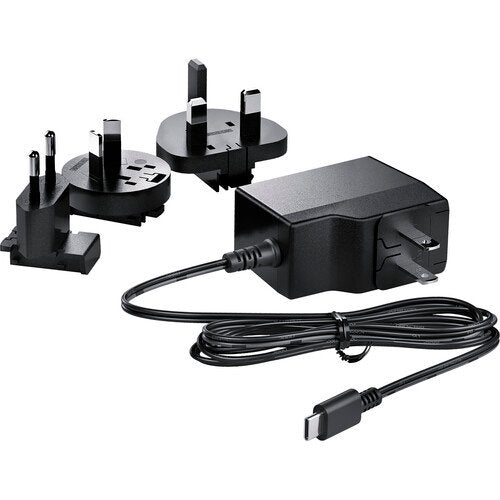

Its durable metal housing is designed for portable use, with LED indicators for power and video status. The converter can be powered through USB Type-C or the included 100-240V AC power supply with international socket adapters.

For more professional video equipment, explore our Blackmagic Design and Signal Processing, Converters & Distribution collections.

Frequently Asked Questions

What does the Blackmagic Micro Converter HDMI to SDI 3G do?

It converts an HDMI video signal into SDI, allowing HDMI cameras or computers to connect to professional SDI monitors and equipment.

How many SDI outputs does it have?

It has two 3G-SDI outputs, which can be configured for Level A or Level B operation.

What is the maximum supported resolution?

The converter supports HDMI input and SDI output resolutions up to 1080p60.

Does it support audio and timecode?

Yes. It supports embedded HDMI audio, embedded SDI audio, and HDMI/SDI timecode.

Does this version include a power supply?

Yes. This version includes a 100-240V AC power supply with four international socket adapters.
