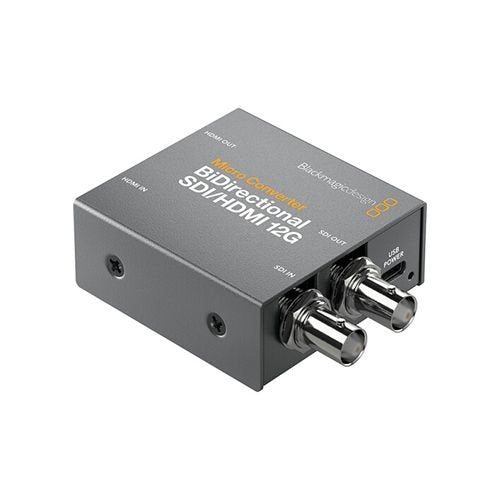

Blackmagic Design Micro Converter SDI to HDMI 12G
SKU: CONVCMIC/SH12G
Key Features
- 1 x 12G-SDI input, 1 x HDMI output
- 1 x 12G-SDI loop output
- Selectable SD/HD Level A/B SDI ports
- Supports up to DCI 4K60 resolution I/O
- Automatic input signal detection
- Compact, rugged design
- Embedded audio and USB Type-C power
- LED video and power signal indicators
- 586.00 AED
- 586.00 AED
- Unit price
- per
Dimensions: 8 x 5 x 3 cm
Weight: 0.2 kg
Description
xThe Blackmagic Design Micro Converter SDI to HDMI 12G is a compact professional converter designed to connect SDI equipment to HDMI displays. It converts 12G-SDI to HDMI 2.0 and supports SD, HD, 2K, Ultra HD, and DCI 4K video formats up to 2160p60.
The converter features one 12G-SDI input, one HDMI output, and one SDI loop output, allowing the incoming SDI signal to be passed through to other SDI equipment. Automatic signal detection and SDI re-clocking help provide reliable video conversion.
A built-in 33-point 3D LUT can be used for monitor calibration and color management. The converter also supports embedded audio and can be powered through USB Type-C, making it suitable for broadcast, live production, studio monitoring, and mobile video workflows.
For more professional video conversion equipment, explore our Blackmagic Design collection and Signal Processing, Converters, Distribution range.
Frequently Asked Questions
What is the Blackmagic Design Micro Converter SDI to HDMI 12G used for?
It converts 12G-SDI signals to HDMI for connecting professional SDI equipment to HDMI monitors, televisions, projectors, and other compatible displays.
What is the maximum resolution supported?
It supports video formats up to DCI 4K and Ultra HD at 60 fps, along with SD, HD, and 2K formats.
Does it have an SDI loop output?
Yes. The converter includes a 12G-SDI loop output that allows the incoming SDI signal to be passed to another SDI device.
Does it support 3D LUTs?
Yes. It includes a 33-point 3D LUT for monitor calibration and color management.
How is the converter powered?
The Micro Converter can be powered through its USB Type-C connection, making it convenient for studio and mobile production setups.
Specs
x| Product Name | Blackmagic Design Micro Converter SDI to HDMI 12G |
|---|---|
| SDI Video Input | 1 x 12G-SDI |
| SDI Video Output | 1 x 12G-SDI loop output |
| HDMI Video Output | 1 x HDMI 2.0 Type A |
| SDI Rates | 270 Mb/s, 1.5G, 3G, 6G, 12G |
| Video Standards | SD, HD, 2K, Ultra HD, and DCI 4K |
| Maximum Resolution | DCI 4K and Ultra HD up to 2160p60 |
| SDI Reclocking | Yes |
| SDI Level | Level A or B, selectable |
| 3D LUT | 33-point 3D LUT |
| Audio | Embedded SDI audio and HDMI audio |
| Input Signal Detection | Automatic |
| Color Precision | 8, 10, and 12-bit |
| Color Space | YUV |
| Power Connection | USB Type-C |
| Power Consumption | 5W maximum |
| Operating Voltage | 4.4V to 5.25V DC |
| Settings and Updates | USB Type-C via Mac or Windows software |
| Operating Systems | macOS 10.15 or later, Windows 10 64-bit |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 0% to 90%, non-condensing |
