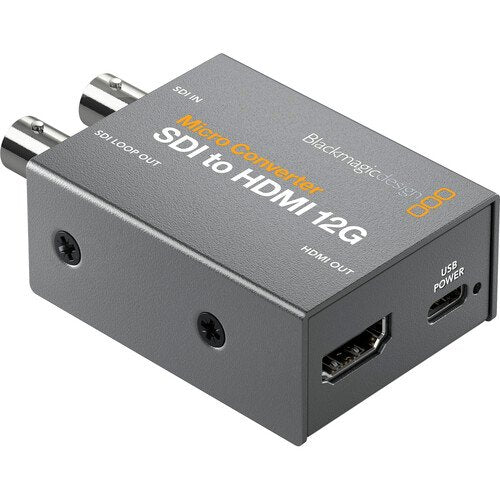

Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply
SKU: CONVCMIC/SH12G/WPSU
- 1 x 12G-SDI Input, 1 x HDMI Output
- 1 x 12G-SDI Loop Output
- Selectable SD/HD Level A/B SDI Ports
- Supports up to DCI 4K60 Resolution I/O
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio, USB Type-C Power
- LED Video & Power Signal Indicators
- 644.00 AED
- 644.00 AED
- Unit price
- per
Dimensions: 15 x 11 x 8 cm
Weight: 0.4 kg
Description
xThe Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply is a compact broadcast-quality converter designed for professional video monitoring. It converts 12G-SDI to HDMI 2.0 and supports SD, HD, 2K, Ultra HD, and DCI 4K formats up to 2160p60.
The converter includes a 33-point 3D LUT for color calibration, allowing users to improve the accuracy of compatible monitors, projectors, and televisions. It also provides an SDI loop output, allowing the incoming SDI signal to be passed through to other equipment.
With support for 270 Mb/s, 1.5G, 3G, 6G, and 12G-SDI, the Micro Converter can handle a wide range of professional video formats. It can be powered through USB-C, while this wPSU version includes a 5V universal power supply with international socket adapters.
The compact converter is well suited for broadcast studios, live production, video monitoring, mobile production, and other professional workflows where reliable SDI-to-HDMI conversion is required.
For more professional video conversion equipment, explore our Blackmagic Design collection and Signal Processing, Converters, Distribution range.
Frequently Asked Questions
What is the Blackmagic Design Micro Converter SDI to HDMI 12G used for?
It converts professional SDI video signals to HDMI for connecting SDI-based equipment to HDMI monitors, projectors, televisions, and other compatible displays.
What is the maximum resolution supported?
The converter supports video formats up to Ultra HD 2160p60 and DCI 4K, along with SD, HD, and 2K formats.
Does it include a 3D LUT?
Yes. The converter includes a 33-point 3D LUT that can be used for monitor and display color calibration.
Does the converter have an SDI loop output?
Yes. It features an SDI loop output that passes the incoming SDI signal through to other SDI equipment.
Does this model include a power supply?

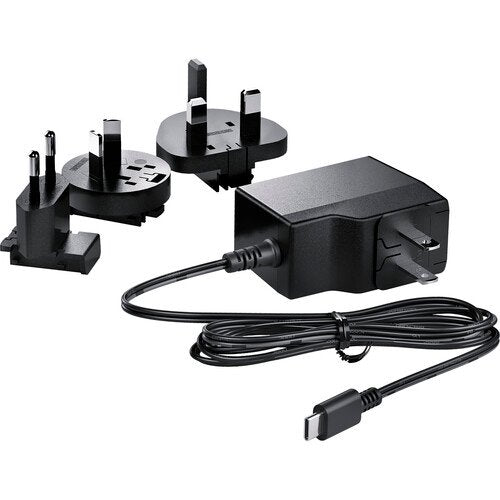

Yes. The wPSU version includes a 5V universal power supply with international socket adapters.
Specs
x| Product Name | Blackmagic Design Micro Converter SDI to HDMI 12G wPSU |
|---|---|
| SDI Video Input | 1 x SDI |
| SDI Video Output | 1 x SDI loop output |
| HDMI Video Output | 1 x HDMI 2.0 Type A |
| SDI Rates | 270 Mb/s, 1.5G, 3G, 6G, 12G |
| Multi-Rate Support | SD, HD, 2K, Ultra HD, and 4K |
| Maximum Resolution | Ultra HD 2160p60 and DCI 4K |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p, 1080p, 1080PsF, and 1080i |
| 2K Video Standards | DCI 2K up to 60p |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, and 2160p60 |
| DCI 4K Video Standards | 4Kp23.98, 4Kp24, 4Kp25, 4Kp29.97, 4Kp30, 4Kp47.95, 4Kp48, 4Kp50, 4Kp59.94, and 4Kp60 |
| HDMI Color Precision | 4:2:2 |
| HDMI Color Space | YUV |
| 3D LUT | 33-point 3D LUT |
| Settings and Updates | USB Type-C via Mac or Windows software |
| Power Supply | 5V universal power supply with international socket adapters |
| Power Consumption | 4W maximum |
| Operating Voltage | 4.4V to 5.25V DC |
| Operating Systems | macOS 10.15 or later, Windows 10 64-bit |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 0% to 90%, non-condensing |
