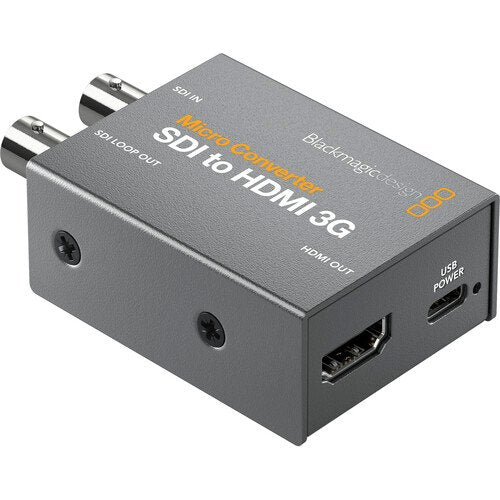

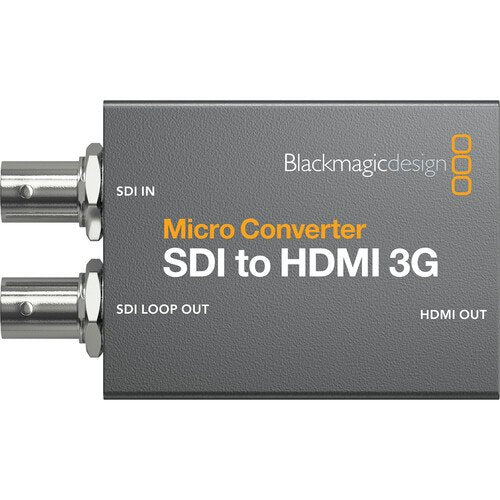

Blackmagic Design Micro Converter SDI to HDMI 3G
SKU: CONVCMIC/SH03G
Key Features
- 1x SD/HD/3G-SDI Input & 1 x Loop Output
- 1 x HDMI Type A Output
- DCI 2K SDI In/Out | 1080p60 HDMI Out
- 3D LUT for Calibrating or Loop Output
- SDI A/B Selection | USB Power
- Embedded Audio
- Compact, Rugged Design
- LED Video & Power Signal Indicators
- 276.00 AED
- 276.00 AED
- Unit price
- per
Dimensions: 8 x 5 x 3 cm
Weight: 0.2 kg
Description
xThe Blackmagic Design Micro Converter SDI to HDMI 3G is a compact professional converter designed for monitoring SD, HD, and DCI video sources on HDMI displays. It features one SDI input, one SDI loop output, and one HDMI output for flexible production and monitoring setups.
The converter supports SD, HD, and DCI 2K formats, including professional film frame rates such as 1080p24, 1080p47.95, and 1080p48. Automatic signal detection supports SD, HD, and 3G-SDI Level A or B signals.
A built-in 17-point 3D LUT allows users to calibrate or improve monitor color, with the LUT also available on the SDI loop output. The converter can be configured and powered through USB Type-C, making it suitable for broadcast, live production, studio monitoring, and mobile workflows.
For more professional video conversion equipment, explore our Blackmagic Design collection and Signal Processing, Converters, Distribution range.
Frequently Asked Questions
What is the Blackmagic Design Micro Converter SDI to HDMI 3G used for?
It converts professional SDI video to HDMI for monitoring SD, HD, and DCI video on compatible HDMI displays.
What video formats does it support?
It supports SD, HD, and DCI 2K formats, including frame rates up to 60 fps and professional film rates such as 1080p24 and 1080p48.
Does it have an SDI loop output?
Yes. It includes an SDI loop output, allowing the incoming SDI signal to be passed to another SDI device.
Does it include a 3D LUT?
Yes. It features a 17-point 3D LUT for monitor color calibration and improvement.
How is the converter powered?
The converter uses USB Type-C for power and configuration.
Specs
x| Product Name | Blackmagic Design Micro Converter SDI to HDMI 3G |
|---|---|
| SDI Video Input | 1 x SD, HD, or 3G-SDI |
| SDI Video Output | 1 x SDI loop output |
| HDMI Video Output | 1 x HDMI Type A |
| Multi-Rate Support | Automatic detection of SD or HD |
| Maximum Video Format | DCI 2K up to 60 fps |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p, 1080p, 1080PsF, and 1080i |
| DCI 2K Video Standards | 2Kp23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, and 60 |
| SDI Compliance | SMPTE 259M, 292M, 296M, 424M, 425M |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically detects SD, HD, and Level A or B for 3G-SDI |
| HDMI Color Precision | 4:2:2 |
| HDMI Color Space | YUV |
| 3D LUT | 17-point 3D LUT |
| Settings and Updates | USB Type-C via Mac or Windows software utility |
| Operating Systems | macOS 10.15 Catalina or later, Windows 10 64-bit |
| Power Connection | USB Type-C |
| Power Consumption | 1.6W |
| Operating Voltage | 4.4V to 5.25V DC |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 0% to 90%, non-condensing |
