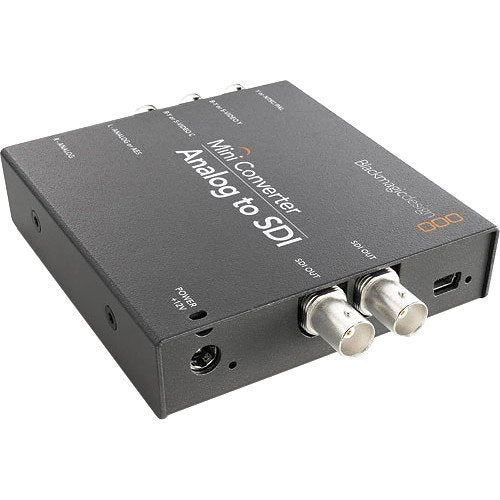

Blackmagic Design Mini Converter Analog to SDI
SKU: CONVMAAS2
Key Features
- Analog to SDI Video Conversion
- Supports Component, S-Video, NTSC and PAL Inputs
- Supports SD and HD Video Formats
- 2 x SDI Video Outputs
- Embedded Audio from Analog or AES/EBU Sources
- 2 Channels of Balanced Analog Audio
- 2 Channels of Balanced AES/EBU Audio
- Automatic SD and HD Format Detection
- SDI Reclocking
- 4:2:2 Video Sampling
- USB 2.0 for Software Updates
- Control via Mini Switches or USB Software
- 12V Universal Power Supply Included
- 1,049.00 AED
- 1,049.00 AED
- Unit price
- per
Weight: 0.5 kg
Description
xThe Blackmagic Design Mini Converter Analog to SDI is a compact professional converter designed to transform analog video signals into SDI output for integration with modern broadcast and professional video equipment. It accepts HD/SD component, NTSC, PAL, and S-Video sources, making it useful for connecting legacy video equipment to SDI-based workflows.
The converter supports analog sources such as Betacam SP, VHS players, set-top boxes, HDV cameras, and other professional or consumer video devices. It automatically detects supported SD and HD formats and converts them into SDI for use with compatible production equipment.
For audio workflows, the Mini Converter Analog to SDI can embed audio into the SDI output from either balanced analog audio inputs or balanced AES/EBU digital audio inputs. It supports two channels of analog audio and two channels of AES/EBU audio.
The converter provides two SDI video outputs, allowing the converted signal to be distributed to multiple SDI devices. It also features SDI reclocking to help maintain signal quality throughout the workflow.

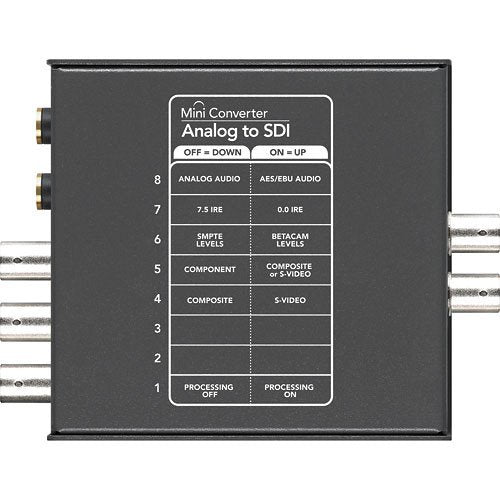

Configuration and software updates are available through the USB 2.0 connection, while mini switches provide convenient control over the converter's settings. A 12V universal power supply with international socket adapters is included.
For more professional video equipment, explore our Production & Studio range and Video products.
Frequently Asked Questions
What is the Blackmagic Design Mini Converter Analog to SDI used for?
It converts analog video signals to SDI, allowing older analog equipment to connect with modern SDI-based video production systems.
What analog video formats does it support?
It supports NTSC, PAL, S-Video, and component SD/HD video inputs.
Can I connect a VHS player to this converter?
Yes. The converter is designed to work with analog sources including VHS players, Betacam SP equipment, set-top boxes, and similar devices.
Does the converter support HD video?
Yes. It supports HD component video standards including 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, and 1080i60.
How many SDI outputs does it have?
The Mini Converter Analog to SDI provides two SDI video outputs.
Can it embed audio into SDI?
Yes. It can embed audio from balanced analog or AES/EBU digital audio inputs into the SDI output.
How many audio channels are supported?
It supports two channels of balanced analog audio and two channels of balanced AES/EBU digital audio.
Specs
x| Component | Specification |
|---|---|
| SDI Video Outputs | 2 x SDI video outputs |
| Analog Video Inputs | NTSC, PAL, S-Video and component SD/HD input |
| Analog Audio Inputs | 2 channels of balanced analog audio |
| Digital Audio Inputs | 2 channels of balanced AES/EBU audio |
| Multi-Rate Support | Automatic detection of SD and HD formats |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601 |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically follows the format of the analog input |
| Analog Color Space | YUV |
| Analog Color Precision | 4:2:2 |
| Reclocking | Yes |
| Software Control | Mac and Windows software upgrade via USB |
| Internal Software Upgrade | Via included updater application |
| Settings Control | Mini switches or USB software |
| USB | USB 2.0 high speed, 480 Mb/s |
| Operating Systems | macOS 10.15 Catalina, macOS 11.1 Big Sur or later, Windows 10 64-bit |
| Power Supply | +12V universal power supply with international socket adapters |
| Power Consumption | 6.50 Watts |
| Operational Voltage Range | 12–31V DC |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 45°C (-4°F to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Mini Converter Analog to SDI and 12V AC adapter with international socket adapters |
| Warranty | 3-year limited manufacturer's warranty |
