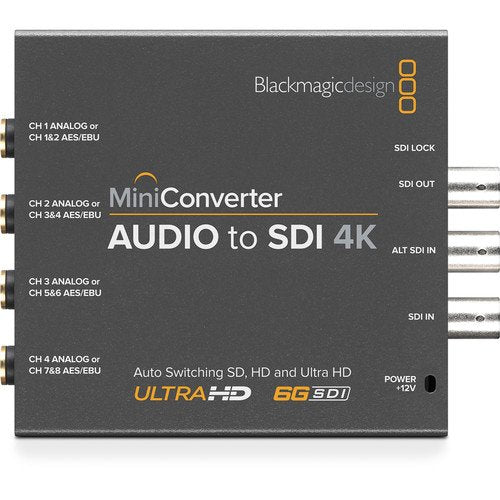

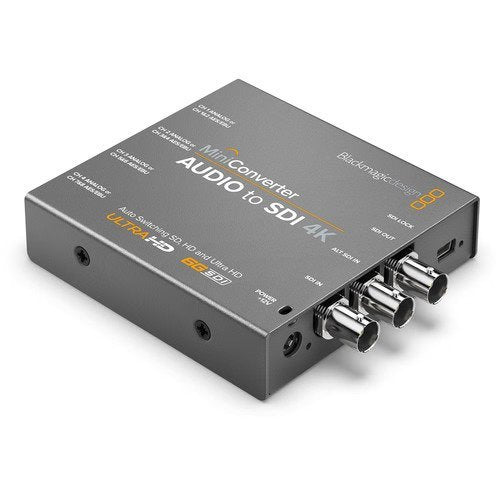

Blackmagic Design Mini Converter Audio to SDI 4K
SKU: CONVMCAUDS4K
Key Features
- Embeds Audio into SDI Signal
- Single Link 6G-SDI Input
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- Redundant SDI Input
- 4x 1/4" Audio Jacks
- 4 Analog or 8 AES/EBU Audio Channels
- 24-Bit, 48 kHz Audio

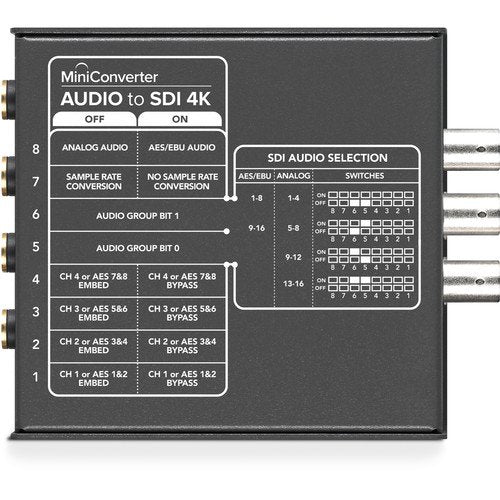

- Control via DIP Switches or Software
- 12V Universal Power Supply Included
- 1,505.00 AED
- 1,505.00 AED
- Unit price
- per
Dimensions: 2.65 x 2.56 x 6.85 cm
Weight: 0.53 kg
Description
xThe Blackmagic Design Mini Converter Audio to SDI 4K is a professional audio embedder designed to add external audio to SDI video signals. It supports 4 channels of balanced analog audio or 8 channels of AES/EBU digital audio, making it suitable for mixers, decks, routers, and video converters.
With support for SD, HD, 3G, and 6G-SDI, this compact converter can handle video workflows up to Ultra HD 4K. It includes an SDI input with an alternate input for automatic failover and an embedded SDI output. For more broadcast signal solutions, explore Systec International's Signal Converters and SDI Distribution collection.
The converter supports 48 kHz, 24-bit audio, automatic SDI format detection, USB software updates, and a 12V universal power supply. It is a practical choice for broadcast, live production, and professional AV systems that need reliable audio embedding.
FAQs
What does the Blackmagic Mini Converter Audio to SDI 4K do?
It embeds external analog or AES/EBU digital audio into an SDI video signal.
How many audio channels does it support?
It supports 4 channels of balanced analog audio or 8 channels of AES/EBU digital audio.
Does it support 4K video?
Yes. It supports SD, HD, 3G, and 6G-SDI formats, including Ultra HD 4K formats up to 2160p30.
Does it have automatic SDI switching?
Yes. It can automatically switch between SD, HD, 3G, and 6G-SDI formats.
Is a power supply included?
Yes. A 12V universal power supply with international socket adapters is included.
Specs
xSpecifications
| SDI Video Input | 1 x SD, HD or 6G-SDI; 1 x alternate SDI input |
|---|---|
| SDI Video Output | 1 x Embedded SDI output |
| Analog Audio Inputs | 4 channels, professional balanced analog audio, 1/4-inch jack |
| Digital Audio Inputs | 8 channels, professional balanced digital audio, 1/4-inch jack |
| SDI Video Support | SD, HD, 3G and 6G-SDI |
| Video Standards | SD, HD, 2K DCI, Ultra HD and 4K DCI |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| SDI Color Precision | 4:2:2, 4:4:4 |
| SDI Color Space | YUV, RGB |
| Reclocking | Yes |
| Software Control | Mac and Windows via USB |
| Settings Control | Mini switches or USB software |
| Power Supply | +12V universal power supply with international socket adapters |
| Power Consumption | 8.40W |
| Operational Voltage Range | 12–31V DC |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 3 Year Limited Manufacturer’s Warranty |
