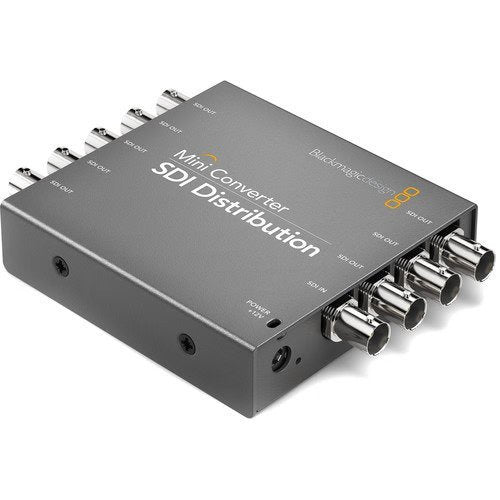

Blackmagic Design Mini Converter SDI Distribution
SKU: CONVMSDIDA
Key Features
- (1) SDI Input, (8) SDI Outputs
- 3G/HD/SD-SDI Auto-Switching Input
- Re-Clocked Outputs
- Ancillary Data & Embedded Audio
- 1080p & 2K Distribution
- Supports ASI Signals
- 732.00 AED
- 732.00 AED
- Unit price
- per
Dimensions: 15 x 14 x 7 cm
Weight: 1 kg
Description
xThe Blackmagic Design Mini Converter SDI Distribution is a professional 1×8 SDI distribution converter designed to distribute a single SDI video signal to up to eight SDI devices. It supports SD-SDI, HD-SDI, and 3G-SDI signals, making it suitable for broadcast facilities, studios, production trucks, and professional video systems.

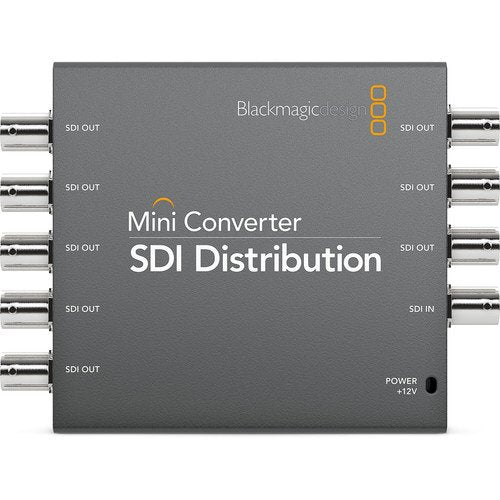

The converter features one SDI input and eight SDI outputs. It automatically detects the incoming SD, HD, or 3G-SDI signal, while the outputs are fully re-clocked to help maintain reliable signal quality when distributing video to multiple connected devices.
The Mini Converter SDI Distribution supports video formats up to 1080p60 and 2K progressive, along with embedded audio and ancillary data. It also supports ASI signals, making it useful for professional broadcast and transmission applications.
The unit provides an affordable way to distribute SDI signals throughout a facility or production truck. It includes a 12V universal power supply and supports configuration through its available control options, making it a practical solution for professional SDI signal distribution.
For more professional video equipment, explore our Production & Studio range and Video products.
Frequently Asked Questions
What is the Blackmagic Design Mini Converter SDI Distribution used for?
The Mini Converter SDI Distribution is used to distribute one SDI video source to up to eight SDI devices simultaneously, making it suitable for broadcast, studio, and professional video production environments.
How many SDI inputs and outputs does it have?
The converter has 1 SDI input and 8 SDI outputs. The outputs automatically match the incoming SDI video format.
Does the Mini Converter SDI Distribution support 3G-SDI?
Yes. It supports SD-SDI, HD-SDI, and 3G-SDI signals with automatic input detection.
What is the maximum supported video resolution?
The converter supports video formats up to 1080p60 and 2K progressive through its 3G-SDI design.
Are the SDI outputs re-clocked?
Yes. All eight outputs are fully re-clocked, helping maintain reliable SDI signal distribution.
Does it support embedded audio?
Yes. The Mini Converter SDI Distribution supports embedded audio and ancillary data transmitted through the SDI signal.
Specs
x| Component | Specification |
|---|---|
| SDI Video Input | 1 x SDI input, switchable between SD, HD and 3G-SDI |
| SDI Video Outputs | 8 x SDI outputs automatically matching the SDI video input |
| Multi-Rate Support | Automatic detection of SD, HD or 3G-SDI |
| Reclocking | Yes |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards |
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| 2K Video Standards |
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B, SMPTE 425M Level B, ITU-R BT.656 and ITU-R BT.601 |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| SDI Color Precision | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB |
| SDI Auto Switching | Automatically detects SD, HD or 3G-SDI |
| ASI Support | Yes |
| Operating Systems | macOS 10.15 Catalina, macOS 11.1 Big Sur or later, Windows 10 64-bit |
| Power Supply | +12V universal power supply with international socket adapters |
| Power Consumption | 4.80 Watts |
| Operational Voltage Range | 12–31V DC |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 45°C (-4°F to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Blackmagic Design Mini Converter SDI Distribution and 12V universal power supply with international socket adapters |
| Warranty | 3-year limited manufacturer's warranty |
