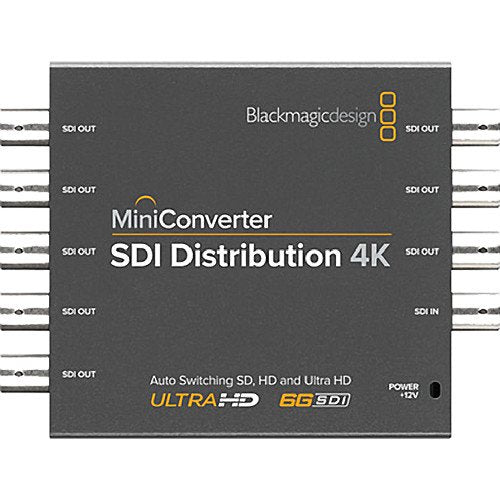

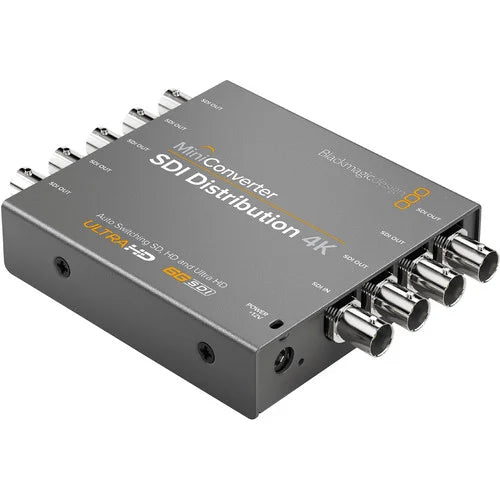

Blackmagic Design Mini Converter SDI Distribution Converter 4K

The Blackmagic Design Mini Converter SDI Distribution 4K is a professional SDI distribution converter designed to distribute a single SDI video signal to multiple outputs. It is suitable for broadcast, live production, studio, and professional video monitoring environments.

The converter features one SDI input and eight SDI outputs, allowing a single video source to be distributed to multiple SDI devices at the same time. The outputs are re-clocked to help maintain signal integrity when connecting multiple pieces of professional video equipment.

The Mini Converter SDI Distribution 4K supports SD, HD, UHD 4K, and DCI 4K signals, providing flexibility for modern video production workflows. It also supports ancillary data, embedded audio, and ASI signals for compatible applications.

Automatic input signal detection makes setup simple, while DIP switch and software control provide flexible configuration options. A USB 2.0 port is included for firmware updates, and the unit comes with a 12V universal power supply.

For more professional video equipment, explore our Production & Studio range and Video products.

Frequently Asked Questions

What is the Blackmagic Design Mini Converter SDI Distribution 4K used for?

The Mini Converter SDI Distribution 4K is used to distribute one SDI video signal to multiple SDI devices, making it useful for broadcast, live production, studios, and professional monitoring setups.

How many SDI outputs does the converter have?

The converter has eight SDI outputs, allowing one input signal to be distributed to up to eight connected SDI devices.

Does the Mini Converter SDI Distribution 4K support 4K video?

Yes. It supports UHD 4K and DCI 4K signals, as well as standard-definition and high-definition video formats.

Are the SDI outputs re-clocked?

Yes. All eight SDI outputs are re-clocked outputs, helping maintain reliable signal distribution across connected equipment.

Does the converter support embedded audio?

Yes. The Mini Converter SDI Distribution 4K supports embedded audio along with ancillary data.

Does it support ASI signals?

Yes. The converter supports ASI signals, making it suitable for additional professional broadcast applications.
