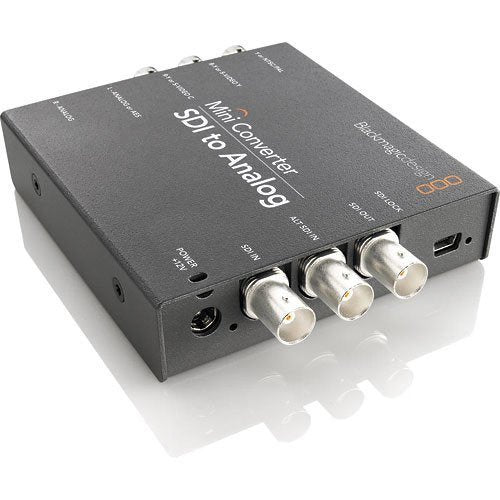

Blackmagic Design Mini Converter SDI to Analog

SKU: CONVMASA

View More Items from
Blackmagic Design Mini Converter SDI to Analog
Blackmagic Design Mini Converter SDI to Analog on a white background
Blackmagic Design Mini Converter SDI to Analog
Blackmagic Design Mini Converter SDI to Analog on a white background

Key Features

  • SDI to Analog Video Conversion
  • Supports SD and HD-SDI up to 1080p30
  • Component, Composite and S-Video Outputs
  • HD to SD Down-Conversion
  • Automatic SD, HD and 1.5G-SDI Detection
  • Redundant SDI Input with Automatic Switching
  • SDI Loop Output
  • Balanced Analog and AES/EBU Audio Outputs
  • 24-bit, 48 kHz Audio Support
  • SDI Reclocking
  • Control via Mini Switches or USB Software
  • USB for Software and Firmware Updates
  • 12V Universal Power Supply Included
SKU: CONVMASA
Availability: In stock
1,012.00 AED
865.00 AED
1,012.00 AED
Tax excluded.
Subtotal: 1,012.00
10 customers are viewing this product

Dimensions: 14.12 x 14.22 x 6.73 cm

Weight: 0.523 kg

Blackmagic Design Mini Converter SDI to Analog

Blackmagic Design Mini Converter SDI to Analog

865.00 1,012.00
Blackmagic Design Mini Converter SDI to Analog
Blackmagic Design Mini Converter SDI to Analog on a white background

Blackmagic Design Mini Converter SDI to Analog

865.00 1,012.00
Description
Description
x

The Blackmagic Design Mini Converter SDI to Analog is a professional video converter designed to convert SD and HD-SDI signals to analog video. It supports component, S-Video, NTSC, and PAL outputs, making it ideal for connecting modern SDI equipment to analog monitors, video decks, and other legacy production equipment.

The converter supports SD and HD video formats up to 1080p30 and automatically detects the incoming SDI format. Its built-in down-converter allows HD SDI sources to be converted to standard-definition analog formats such as S-Video, NTSC, and PAL.

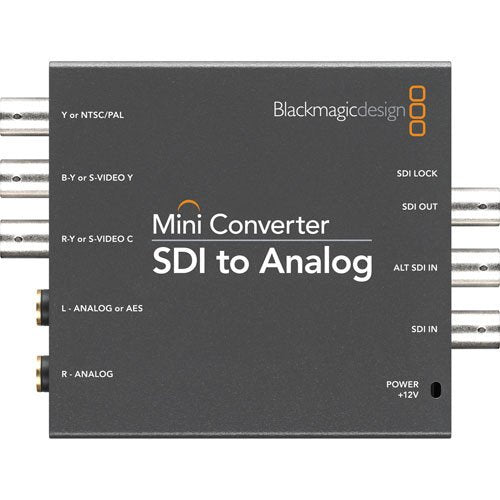

The Mini Converter SDI to Analog includes an SDI input, redundant SDI input, and SDI loop output. The redundant input can automatically switch over if the primary SDI input is lost, while the loop output allows the SDI signal to continue to another compatible device.

For audio workflows, the converter can de-embed audio from the SDI signal and output it through balanced analog or AES/EBU digital audio connections. It supports professional 24-bit, 48 kHz audio.

Settings can be controlled using the built-in mini switches or USB software. The USB connection also supports software and firmware updates using compatible Mac and Windows computers. A 12V universal power supply with international socket adapters is included.

For more professional video equipment, explore our Production & Studio range and Video products.

Frequently Asked Questions

What is the Blackmagic Design Mini Converter SDI to Analog used for?

It converts SD and HD-SDI video signals to analog video, allowing professional SDI equipment to connect to compatible analog displays, monitors, decks, and other equipment.

What video outputs does the Mini Converter SDI to Analog support?

It provides NTSC, PAL, S-Video, and component SD/HD analog video outputs.

What SDI formats does it support?

The converter supports SD, HD, and 1.5G-SDI formats and automatically detects the incoming video standard.

Does it support 1080p video?

Yes. It supports HD formats including 1080p up to 30 fps.

Does the converter support down-conversion?

Yes. The built-in HD-to-SD down-converter allows HD SDI signals to be converted to standard-definition analog formats.

Can it de-embed audio from SDI?

Yes. Embedded SDI audio can be de-embedded and output through the converter's balanced analog or AES/EBU digital audio outputs.

Read more
Specs
Specs
x
Component Specification
SDI Video Inputs 1 x SD, HD or 1.5G-SDI input
Alternate SDI Input 1 x ALT SDI input for automatic switch over if the main input fails
SDI Video Output 1 x SDI loop output
SDI Video Rates 270 Mb/s, 1.5G
Analog Video Outputs NTSC, PAL, S-Video and component SD/HD
Analog Audio Outputs 2 channels of professional balanced analog audio via standard 1/4-inch jack connections
Digital Audio Outputs 2 channels of balanced AES/EBU audio
SDI Redundant Input Automatically switches over if the main SDI input is lost
Multi-Rate Support Automatic detection of SD, HD and 1.5G-SDI
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 372M, SMPTE 424M Level B, SMPTE 425M Level B, ITU-R BT.656 and ITU-R BT.601
SDI Video Sampling 4:2:2
SDI Audio Sampling 48 kHz, 24-bit
SDI Color Precision 4:2:2
SDI Color Space YUV
SDI Auto Switching Automatic detection of SD, HD and 1.5G-SDI
Analog Video Standards 525i29.97 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60
Analog Color Space YUV
Analog Color Precision 4:2:2
Format Conversion HD to SD down-converter
Reclocking Yes
Settings Control Mini switches or USB software
Software Updates USB
Operating Systems macOS 10.15 Catalina, macOS 11.1 Big Sur or later, Windows 10 64-bit
Power Supply +12V universal power supply with international socket adapters
Power Consumption 8.04 Watts
Operational Voltage Range 12–15V DC
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 45°C (-4°F to 113°F)
Relative Humidity 0% to 90% non-condensing
What's Included Mini Converter SDI to Analog and 12V universal power supply with international socket adapters
Warranty 3-year limited manufacturer's warranty
