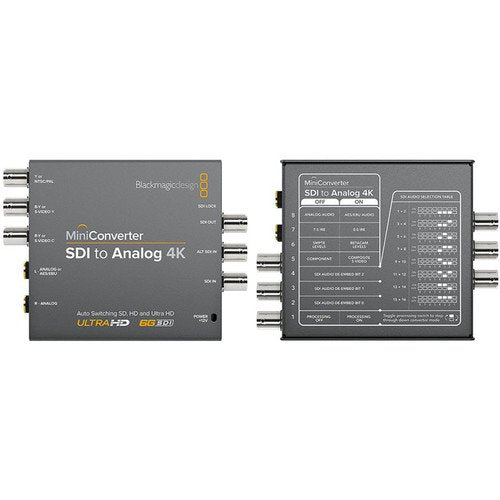

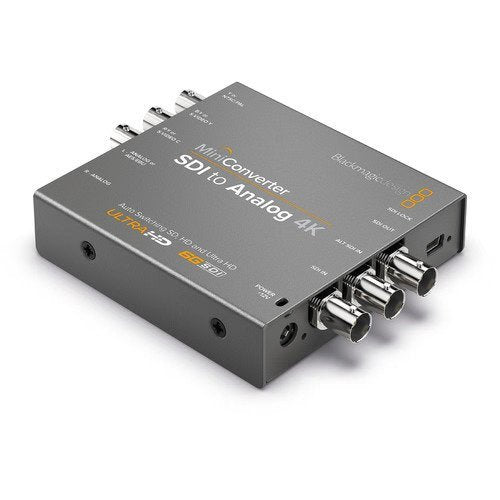

Blackmagic Design Mini Converter SDI to Analog 4K
SKU: CONVMASA4K
Key Features
- Single Link SD/HD/3G/6G-SDI Input
- Component, Composite, & S-Video Output
- SD, HD, UHD 4K & DCI 4K Input Signals
- Automatic Input Signal Detection
- Redundant SDI Input & Looped SDI Output
- Analog & AES-EBU Digital Audio Outputs
- 24-bit, 48 kHz Audio
- Control via DIP Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
- 1,505.00 AED
- 1,505.00 AED
- Unit price
- per
Dimensions: 15 x 14 x 7 cm
Weight: 1 kg
Description
xThe Blackmagic Design Mini Converter SDI to Analog 4K is a professional video converter designed to convert SD, HD, 3G, and 6G-SDI signals to analog video. It supports component, composite, and S-Video outputs, making it useful for connecting modern SDI equipment to legacy analog monitors, decks, and other professional video devices.
With built-in down-conversion, the converter can accept Ultra HD 4K and DCI 4K sources and output compatible SD or HD analog video. It supports UHD 4K up to 30 fps and DCI 4K up to 24 fps, making it suitable for broadcast, post-production, studio, and professional AV workflows.
The converter features a primary SDI input, redundant SDI input, and SDI loop output. The redundant input can automatically switch over if the main SDI input is lost, while the loop output allows the SDI signal to be passed to another device.
The Mini Converter also provides audio de-embedding, allowing up to 16 channels of embedded SDI audio to be accessed through balanced analog or AES/EBU digital audio outputs. Audio is supported at 24-bit and 48 kHz for professional audio workflows.
Settings can be controlled through the built-in DIP switches or USB software, and the USB connection can also be used for firmware updates. A 12V universal power supply with international socket adapters is included.
For more professional video equipment, explore our Production & Studio range and Video products.
Frequently Asked Questions
What is the Blackmagic Design Mini Converter SDI to Analog 4K used for?
It converts SD, HD, 3G, and 6G-SDI video signals to analog video, allowing modern SDI equipment to connect with compatible analog monitors, decks, and other equipment.
Does the Mini Converter SDI to Analog 4K support 4K?
Yes. It supports Ultra HD 4K up to 30 fps and DCI 4K up to 24 fps, along with SD, HD, and 3G-SDI formats.
What analog video outputs does it provide?
The converter supports component, composite NTSC/PAL, and S-Video outputs.
Can it convert 4K SDI to HD or SD analog video?
Yes. Its built-in down-converter allows Ultra HD sources to be converted for use with SD or HD analog equipment.
Does it have a redundant SDI input?
Yes. The converter includes an ALT SDI input that can automatically switch over if the main SDI input fails.
Does it have an SDI loop output?
Yes. The SDI loop output allows the incoming SDI signal to be passed through to another compatible device.
Specs
x| Component | Specification |
|---|---|
| SDI Video Input | 1 x SD, HD or 6G-SDI input |
| Alternate SDI Input | 1 x ALT SDI input for automatic switch over if the main input fails |
| SDI Video Output | 1 x SDI video loop output |
| Analog Video Outputs | NTSC, PAL, S-Video and component SD/HD from 6G-SDI input |
| Analog Audio Outputs | 2 channels of professional balanced analog audio via standard 1/4-inch jack connections |
| Digital Audio Outputs | 2 channels of professional balanced AES/EBU digital audio via standard 1/4-inch jack connections |
| Multi-Rate Support | Automatic detection of SD, HD, 3G and 6G-SDI |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601 |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically detects supported SD, HD, 3G and 6G-SDI signals |
| Analog Format Support | 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60 |
| Analog Color Space | YUV |
| Analog Color Precision | 4:2:2 |
| Format Conversion | HD down-conversion |
| Reclocking | Yes |
| Settings Control | Mini switches or USB software |
| Software Updates | USB |
| Operating Systems | macOS 10.15 Catalina, macOS 11.1 Big Sur or later, Windows 10 64-bit |
| Power Supply | +12V universal power supply with international socket adapters |
| Power Consumption | 8.04 Watts |
| Operational Voltage Range | 12–31V DC |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 45°C (-4°F to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Mini Converter SDI to Analog 4K, software CD, and 12V universal power supply with international socket adapters |
| Warranty | 3-year limited manufacturer's warranty |
