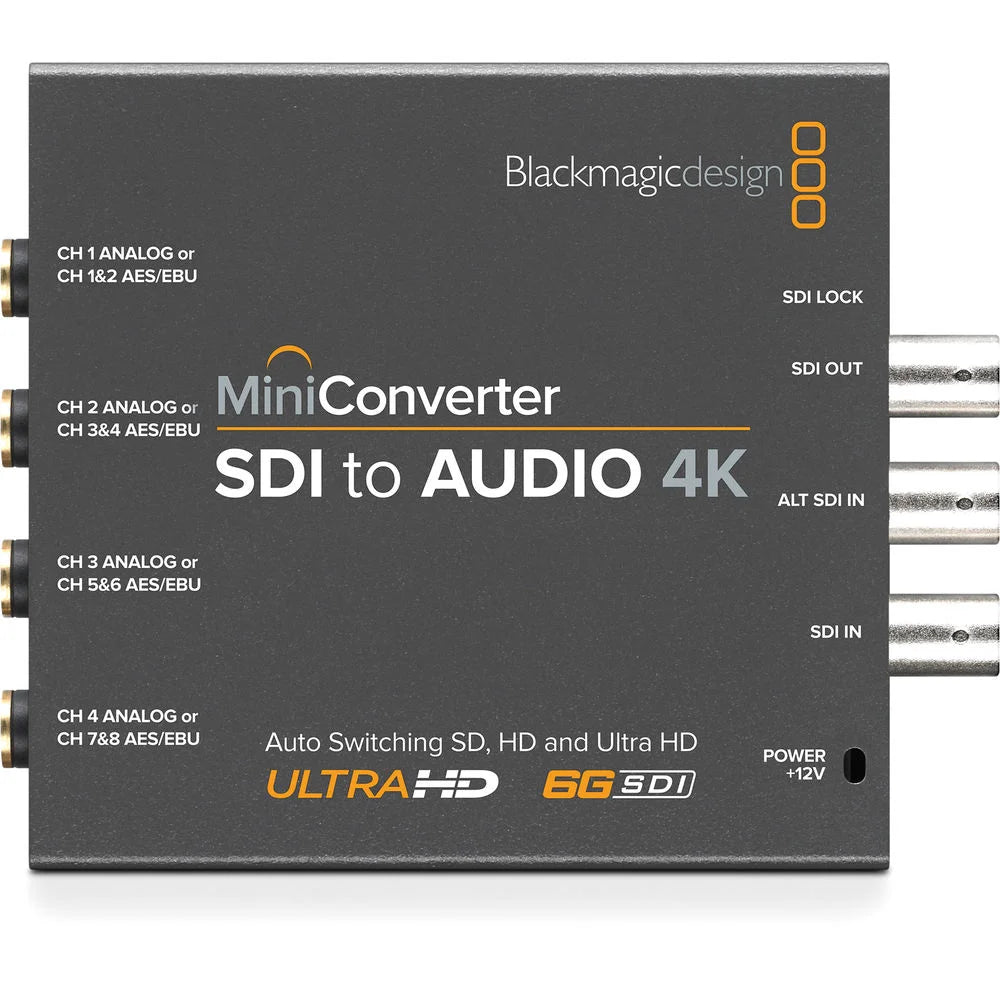

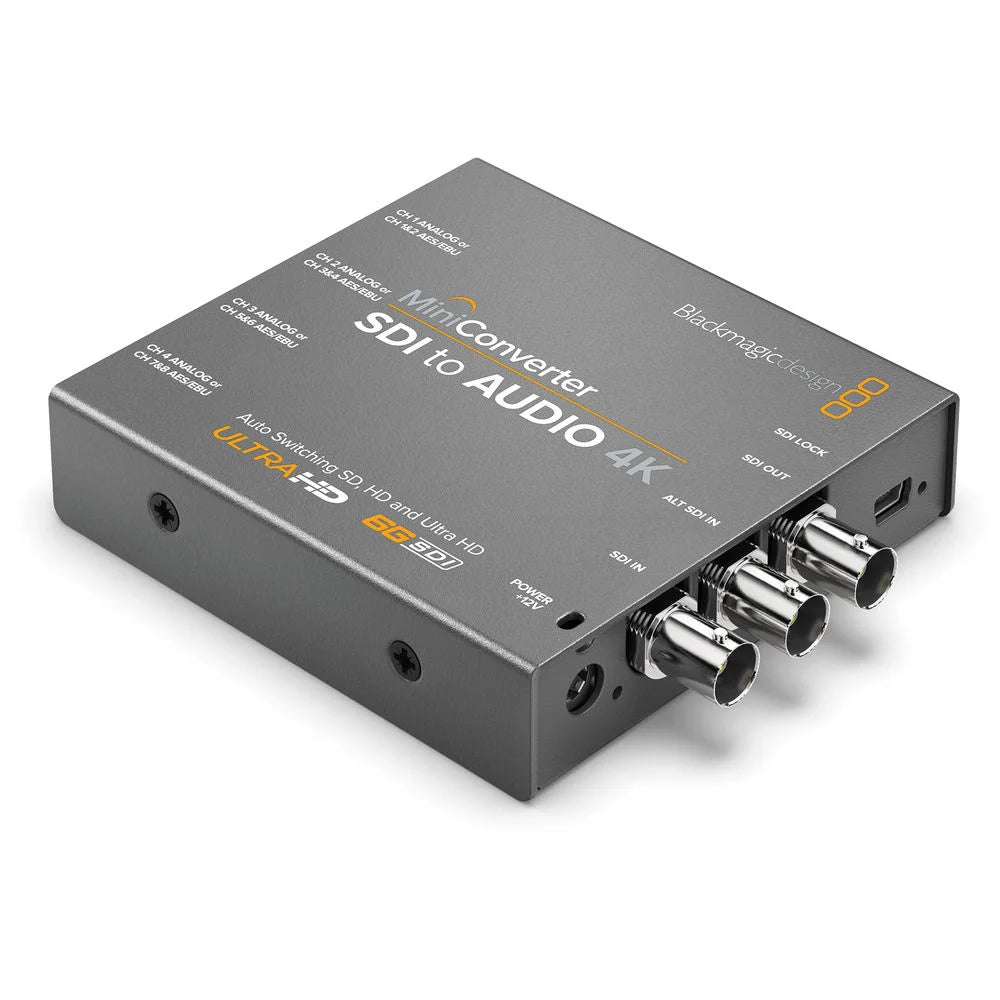

Blackmagic Design Mini Converter SDI to Audio 4K
SKU: CONVMCSAUD4K
Key Features
- De-Embeds Audio from SDI Signal
- Single Link 6G-SDI Input
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- Redundant SDI Input
- 4x 1/4" Audio Output Jacks
- 4 Analog or 8 AES/EBU Audio Channels
- 24-Bit, 48 kHz Audio

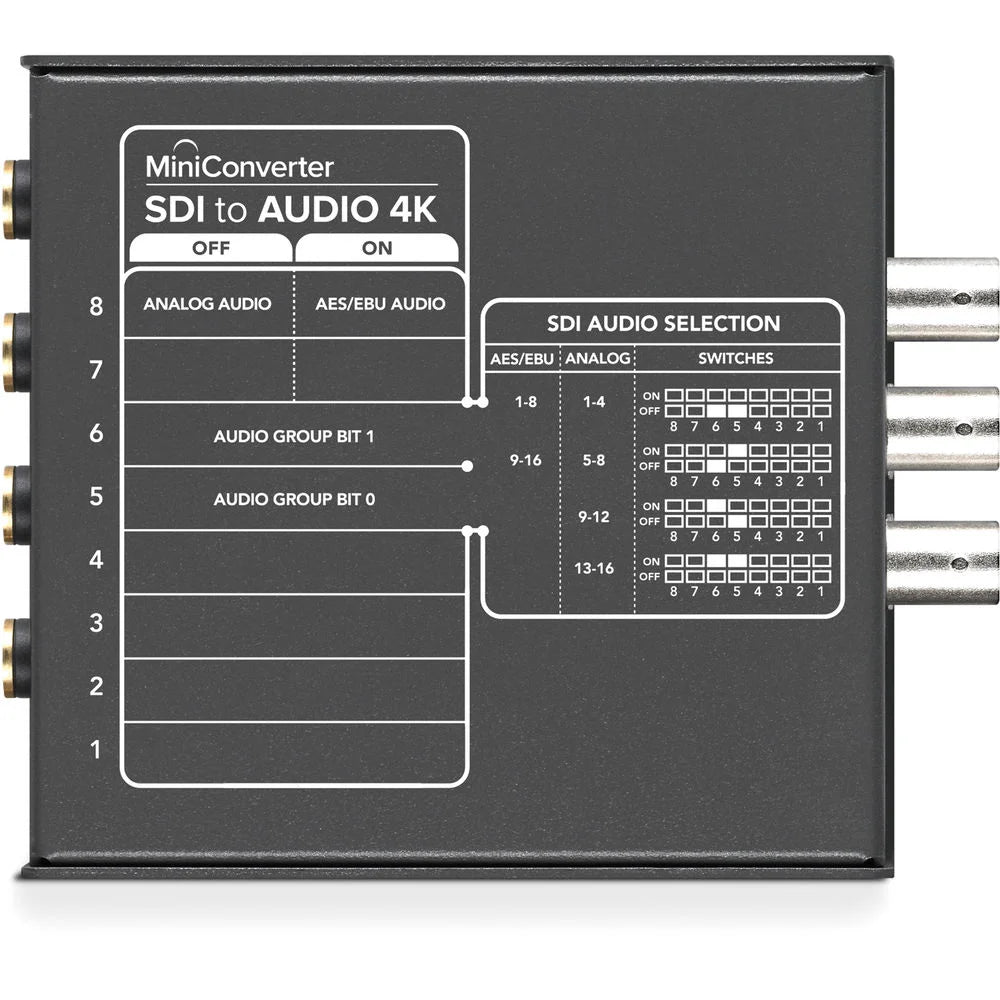

- Control via DIP Switches or Software
- 12V Universal Power Supply Included
- 1,527.00 AED
- 1,527.00 AED
- Unit price
- per
Dimensions: 15 x 15 x 7 cm
Weight: 1 kg
Description
xThe Blackmagic Design Mini Converter SDI to Audio 4K is a professional audio de-embedder designed to extract audio from SDI video signals. It supports SD, HD, 3G and 6G-SDI, making it suitable for broadcast studios, live production and professional video systems.
It provides 4 channels of balanced analog audio and 8 channels of AES/EBU digital audio through standard 1/4-inch connections. The converter also includes a redundant SDI input that automatically switches when the main SDI input is lost.
The Mini Converter SDI to Audio 4K features automatic SD, HD, 3G and 6G-SDI detection, SDI reclocking and a loop-through SDI output. Configuration and software updates are available through USB. For more professional signal conversion and broadcast equipment, explore Systec International's Signal Processing, Converters & Distribution collection.
FAQs
What does the Mini Converter SDI to Audio 4K do?
It de-embeds audio from an SDI video signal and outputs it as balanced analog or AES/EBU digital audio.
How many analog audio channels does it support?
It supports 4 channels of professional balanced analog audio.
How many digital audio channels are available?
It provides 8 channels of professional balanced AES/EBU digital audio.
Does it support 4K video?
Yes. It supports Ultra HD formats up to 2160p30 and 4K DCI formats up to 4Kp30.
Does it have redundant SDI input?
Yes. It has an alternate SDI input that automatically switches over if the main SDI input fails.
Specs
xSpecifications
| Model | Mini Converter SDI to Audio 4K |
|---|---|
| SDI Video Input | 1 x SD, HD or 6G-SDI |
| Alternate SDI Input | 1 x SD, HD or 6G-SDI with automatic failover |
| SDI Video Output | 1 x SDI video loop output |
| Analog Audio Outputs | 4 channels professional balanced analog audio via 1/4-inch connectors |
| Digital Audio Outputs | 8 channels professional balanced AES/EBU digital audio via 1/4-inch connectors |
| SDI Video Standards | SD, HD, 3G and 6G-SDI |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080PsF23.98/24/25/29.97/30, 1080i50/59.94/60 |
| 2K Video Standards | 2K DCI 23.98p/24p/25p and corresponding PsF formats |
| Ultra HD Video Standards | 2160p23.98/24/25/29.97/30 |
| 4K Video Standards | 4K DCI 23.98p/24p/25p/29.97p/30p |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB |
| SDI Color Precision | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| SDI Auto Switching | Automatic SD, HD, 3G and 6G-SDI detection |
| Reclocking | Yes |
| Software Updates | USB 2.0 high speed, 480 Mb/s |
| Software Control | Mac and Windows |
| Settings Control | Mini switches or USB software |
| Power Supply | +12V universal power supply with international socket adapters |
| Power Consumption | 5.52W |
| Operational Voltage Range | 12–31V DC |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 3 Year Limited Manufacturer's Warranty |
