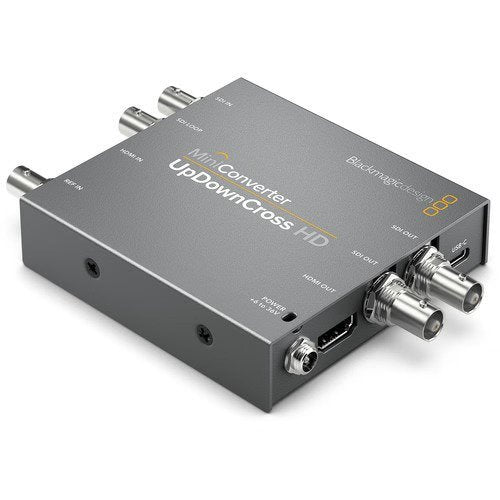

Blackmagic Design Mini Converter UpDownCross HD
SKU: CONVMUDCSTD/HD
Key Features
- 3G/HD/SD-SDI Up/Down/Cross Conversion
- 1 x 3G/HD/SD-SDI Input
- 2 x 3G/HD/SD-SDI Outputs & 1 x Loopout
- 1 x HDMI Input & 1 x HDMI Output
- Support Signals up to 1080p60
- Automatic Input Signal Detection
- Automatic, Multirate Support
- Reference Input & Reclocking

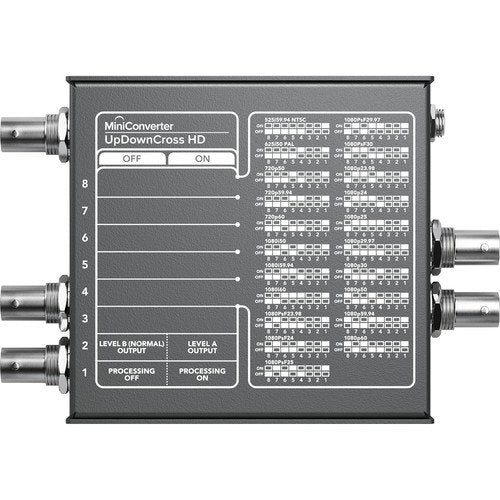

- Control via DIP Switches or Software
- 12V Universal Power Supply Included
- 681.00 AED
- 681.00 AED
- Unit price
- per
Dimensions: 15 x 15 x 7 cm
Weight: 1 kg
Description
xThe Blackmagic Design Mini Converter UpDownCross HD is a compact professional standards converter that converts SD and HD video formats to other SD and HD formats. It supports 3G-SDI and HDMI connections, making it useful for broadcast, live production, studios and professional video systems.

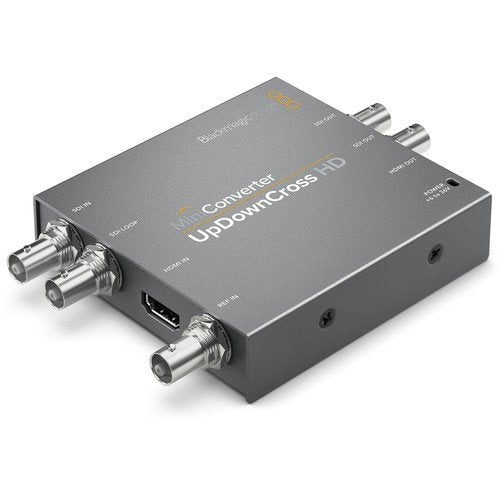

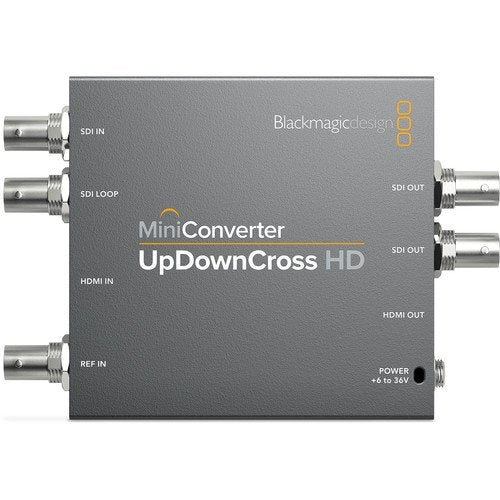

The converter includes one 3G/HD/SD-SDI input, two SDI outputs, one SDI loop output, one HDMI input and one HDMI output. It automatically detects SD, HD or 3G-SDI signals and supports video formats up to 1080p60.
It also features reference input for re-synchronization, SDI reclocking and automatic audio delay to help maintain accurate audio and video synchronization. Computer DVI resolutions can also be scaled through the HDMI input. For more professional video conversion and broadcast solutions, explore Systec International's Blackmagic Design collection.
FAQs
What does the Mini Converter UpDownCross HD do?
It converts SD and HD video signals between different formats, including up, down and cross conversion.
Does it support 1080p60?
Yes. The converter supports SD and HD formats up to 1080p60.
Does it support both SDI and HDMI?
Yes. It has one SDI input, SDI outputs and loop output, plus one HDMI input and one HDMI output.
Does it support reference input?
Yes. It includes a reference input supporting Black Burst and Tri-Sync for SD and HD applications.
Can it scale computer video?
Yes. It can scale DVI computer resolutions such as 640 × 480, 800 × 600 and 1024 × 768 to supported SD and HD video formats.
Specs
xSpecifications
| Model | Mini Converter UpDownCross HD |
|---|---|
| SDI Video Input | 1 x SD, HD or 3G-SDI |
| SDI Video Outputs | 2 x SDI outputs and 1 x SDI loop output |
| HDMI Input | 1 x HDMI Type A |
| HDMI Output | 1 x HDMI Type A with monitor EDID support |
| SDI Rates | 270Mb, 1.5G and 3G |
| Reference Input | Black Burst and Tri-Sync for SD and HD |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080i50/59.94/60 |
| HDMI Input Standards | 720p50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080i50/59.94/60 |
| SDI Video Sampling | 4:2:2 |
| SDI Color Space | YUV |
| SDI Metadata | Timecode and closed captioning |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M Level B, SMPTE 425M Level B, ITU-R BT.656 and ITU-R BT.601 |
| Video Conversion | SD and HD input conversion to supported SD and HD formats |
| Computer Scaling | DVI 640 × 480, 800 × 600 and 1024 × 768 to supported SD and HD formats |
| Reclocking | Yes |
| Software Updates | USB via included updater application |
| Software Control | Mac and Windows |
| Settings Control | Mini switches or USB software |
| Power Supply | +12V universal power supply with international socket adapters |
| Power Consumption | 5W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | 3 Year Limited Manufacturer's Warranty |
