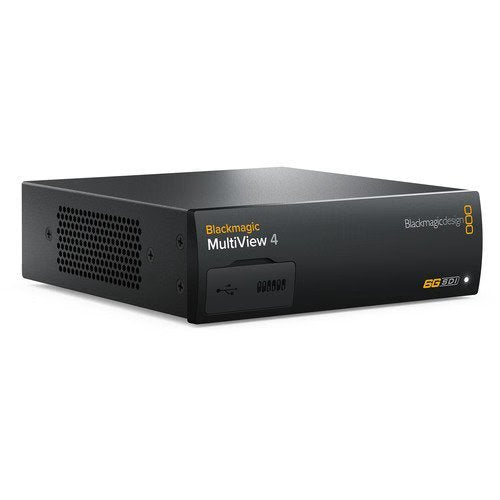

Blackmagic Design MultiView 4
SKU: HDL-MULTIP6G/04
Key Features
- 4x 6G-SDI Inputs with Loop Outputs
- 1x SDI & 1x HDMI MultiView Outputs
- Supports SD, HD, UHD 4K, DCI 4K
- Independent Inputs Allow Mixing Formats
- Standard 2x2 Configuration
- Ethernet for Remote Control
- 1 RU Height Machined Aluminum Chassis
- Built-In Multi-Voltage Power Supply
- Accepts 48 VDC PoE+
- 2,484.00 AED
- 2,484.00 AED
- Unit price
- per
Dimensions: 22.98 x 19.81 x 6.09 cm
Weight: 0.943 kg
Description
xThe Blackmagic Design MultiView 4 is a professional multiviewer designed to monitor up to four independent SDI video sources on a single display. With four 10-bit 6G-SDI inputs and full resynchronization, it can simultaneously handle SD, HD and Ultra HD signals, even when different video standards and frame rates are being used.
It supports monitoring on both HD and Ultra HD displays, with an HDMI Type A output and 10-bit SDI multiview output. When connected to an Ultra HD display, each of the four views can be displayed at up to 1920 x 1080 resolution for detailed monitoring.
Each view can include useful overlays such as custom labels and VU audio meters, making it easier to identify sources and monitor audio levels during live production. The unit also provides SDI re-clocking and automatic switching between SD, HD and 6G-SDI standards.
The MultiView 4 can be configured through RJ45 Ethernet or USB 2.0, while the included MultiView software provides control from Mac and Windows computers. It is well suited for broadcast studios, live events, production facilities and professional video monitoring environments.
Explore more Blackmagic Design products, broadcast equipment, and live production solutions from Systec International.
Frequently Asked Questions
How many video sources can the Blackmagic MultiView 4 monitor?
The MultiView 4 can monitor up to four independent SDI video sources simultaneously on a single display.
Does the MultiView 4 support 4K video?
Yes. The MultiView 4 supports SD, HD and Ultra HD video formats, including 2160p and DCI 4K input standards.
Does it have an HDMI output?
Yes. It includes one HDMI Type A multiview output with monitor EDID support.
Can different video formats be monitored at the same time?
Yes. The four inputs feature automatic SD, HD and 6G-SDI detection and full resynchronization, allowing different standards and frame rates to be monitored simultaneously.
Can I display audio levels on each view?
Yes. The MultiView 4 supports VU audio meter overlays on each view, along with custom labels and other monitoring information.
Specs
x| SDI Video Inputs | 4 x 10-bit SD-SDI, HD-SDI and 6G-SDI |
|---|---|
| SDI Video Outputs | 4 x Loop Outputs, 1 x HD/Ultra HD |
| SDI Rates | 270Mb/s, 1.5G, 3G, 6G |
| SDI Multiview Output | 1 x 10-bit HD-SDI and 10-bit 6G-SDI |
| HDMI Multiview Output | 1 x HDMI Type A with EDID support |
| SDI Reclocking | Automatic switching between SD, HD and 6G-SDI |
| Reference Input | None |
| Multi-Rate Support | Automatic detection of SD, HD and 6G-SDI; simultaneous 4K, HD and SD monitoring |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Video Standard | 4Kp24 DCI |
| SDI/HDMI HD Output Standards | 1080i50, 1080i59.94 |
| SDI/HDMI Ultra HD Output Standards | 2160p25, 2160p29.97 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601 |
| Audio Meters | VU standard on each view |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| SDI Color Precision | 10-bit 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatic selection between SD-SDI, HD-SDI and 6G-SDI on each input |
| SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M |
| Control Panel | None built in; optional Teranex Mini Smart Panel supported |
| Software Control | MultiView software for Mac and Windows |
| Configuration | RJ45 Ethernet or USB 2.0 |
| Firmware Updates | USB 2.0 or Ethernet |
| Power Supply | IEC power cable required, 100-240V AC input |
| Power over Ethernet | 48V DC using PoE+ |
| Power Consumption | 16W |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 45°C / -4°F to 113°F |
| Relative Humidity | 0% to 90% non-condensing |
