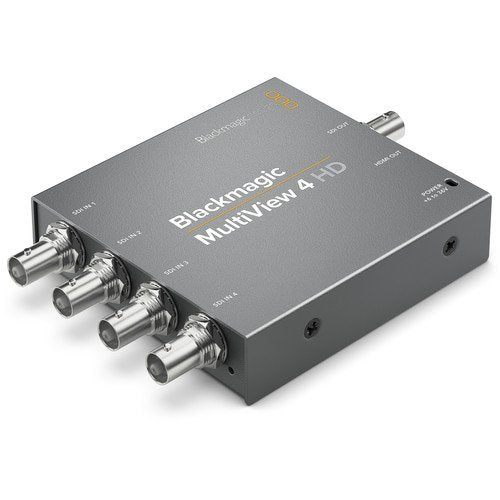

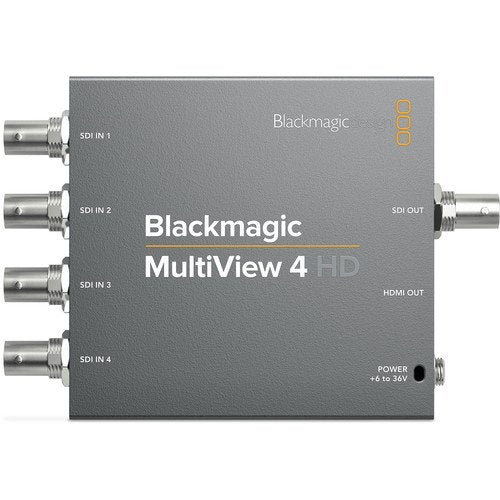

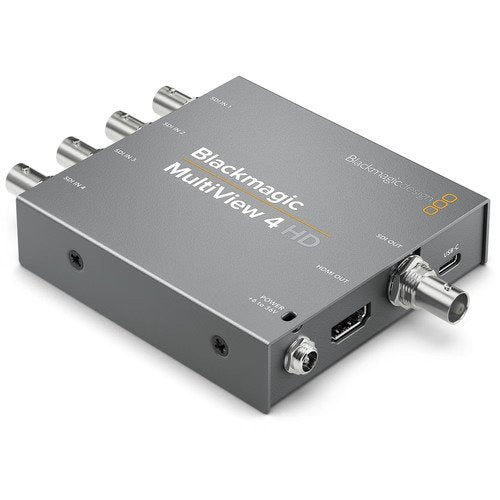

Blackmagic Design MultiView 4 HD
SKU: HDL-MULTIP3G/04HD
Key Features
- 4 x SD/HD/3G-SDI Inputs
- 1 x SDI & 1 x HDMI Outputs
- Automatic Signal Detection
- SDI Re-Clocking on Output
- Monitor EDID Support
- Display Custom Labels & Audio Metering
- Compact Metal Housing
- Quad Multiviewer
- 843.00 AED
- 843.00 AED
- Unit price
- per
Dimensions: 14.6 x 14.09 x 6.47 cm
Weight: 0.485 kg
Description
xThe Blackmagic Design MultiView 4 HD is a compact professional multiviewer designed to monitor up to four independent SDI video sources on a single display. It supports SD, HD, and 3G-SDI signals, making it suitable for broadcast, live production, studios, control rooms, and professional video monitoring.
The MultiView 4 HD features four 10-bit SD-SDI and HD-SDI inputs with automatic signal detection. It can handle different video standards and frame rates on each input, allowing multiple sources to be monitored simultaneously on one screen.
For flexible monitoring, the unit provides 3G-SDI and HDMI multiview outputs. The multiview display can show custom source labels and audio meters, helping operators quickly identify and monitor each connected video source.
The MultiView 4 HD also includes SDI output re-clocking, monitor EDID support, and a USB 2.0 interface for software updates and configuration. Its compact design makes it a practical choice for professional video production environments where space is limited.
For related professional video equipment, explore our Production & Studio range and Video products for cameras, monitoring, signal processing, and production solutions.
Frequently Asked Questions
How many SDI inputs does the Blackmagic MultiView 4 HD have?
The Blackmagic MultiView 4 HD has four 10-bit SD-SDI and HD-SDI inputs, allowing users to monitor up to four video sources simultaneously.
What video formats does the MultiView 4 HD support?
The MultiView 4 HD supports a range of SD, HD, and 3G-SDI video standards, including 525i59.94 NTSC, 625i50 PAL, 720p, 1080i, 1080p, and selected 2K formats.
Does the Blackmagic MultiView 4 HD have an HDMI output?
Yes. The MultiView 4 HD includes an HDMI output for connecting the multiview display to compatible HDMI monitors and displays.
Can the MultiView 4 HD display audio levels?
Yes. The multiviewer provides VU audio meters on each view, allowing operators to monitor audio levels alongside the video sources.
Does the MultiView 4 HD automatically detect SDI signals?
Yes. The unit automatically detects SD-SDI and HD-SDI signals on each input and can accommodate different supported television standards on individual inputs.
Can I monitor four cameras at the same time?
Yes. The four SDI inputs allow you to connect and monitor up to four compatible video sources simultaneously on a single multiview display.
Specs
x| Component | Specification |
|---|---|
| Product Model | Blackmagic MultiView 4 HD (HDL-MULTIP3G/04HD) |
| SDI Video Inputs | 4 x 10-bit SD-SDI and HD-SDI |
| SDI Video Output | 1 x HD-SDI |
| SDI Rates | 270 Mb/s, 1.5G, 3G |
| SDI Multiview Output | 1 x 10-bit HD-SDI |
| HDMI Multiview Output | 1 x HDMI Type A connector with monitor EDID support |
| SDI Reclocking | Automatic switching between standard definition and high definition on SDI outputs |
| Reference Input | None |
| Multi-Rate Support | Automatic detection of SD or HD |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI |
| SDI & HDMI Output Standards |
1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601 |
| Audio Meters | VU standard on each view |
| Source Routing | None |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | 48 kHz, 24-bit |
| SDI Color Precision | 10-bit 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically selects between SD-SDI and HD-SDI on each input, allowing different television standards on each input |
| SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M |
| Updates | USB 2.0 high-speed interface (480 Mb/s) |
| Configuration | USB 2.0 |
| Software Control | MultiView software included free for Windows and Mac |
| Operating Systems | macOS 10.15 Catalina, macOS 11.1 Big Sur or later, Windows 10 64-bit |
| Built-in Control Panel | None |
| External Control Panel | None |
| Power Supply | +12V universal power supply with international socket adapters |
| Power Consumption | 5.5W |
| Operational Voltage Range | 6 to 36V DC |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 45°C (-4°F to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Blackmagic MultiView 4 HD and +12V universal power supply with international socket adapters |
| Warranty | 3-year limited manufacturer's warranty |
